Description

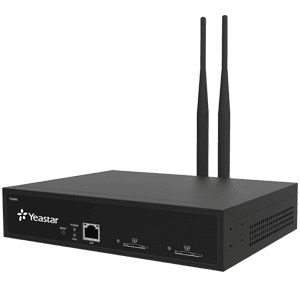

NeoGate TG200
The Yeastar Neogate TG200 is a GSM gateway for connecting GSM networks to VoIP networks for two-way communication. The TG200 is ideal for connecting IP Phones, soft switches, and IP-PBX’s to GSM network, and is the best fallback solution for landline outages.
The TG200 Gateway from Yeastar can be a cost-saving addition for a back up option should landlines go out, and is great for phone calls between mobiles or to PTSN. Best of all, it’s easy to install with a web based GUI and simple to integrate.
Yeastar Neogate Series includes features such as SIP proxy Registrar for IP phones, incoming and outgoing call routing, SMS sending and receiving with a web interface, call back function, Least Cost Routing (LCR), top voice quality (EFR super sound), simple web based configuration, and it’s easy to integrate and easy to install.
The TG200 Gateway from Yeastar can be a cost-saving addition for a back up option should landlines go out, and is great for phone calls between mobiles or to PTSN. Best of all, it’s easy to install with a web based GUI and simple to integrate.
Yeastar Neogate Series includes features such as SIP proxy Registrar for IP phones, incoming and outgoing call routing, SMS sending and receiving with a web interface, call back function, Least Cost Routing (LCR), top voice quality (EFR super sound), simple web based configuration, and it’s easy to integrate and easy to install.
- Incoming /Outgoing Routing rules
- SMS Sending and Receiving
- Send Bulk SMS
- Gain Adjustment
We supply and install NeoGate TG200 in Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Kaimah, Fujairah & Umm al quwain. Contact Us today to get free product consultation and quote.
NeoGate TG200 Specification
| Number of GSM/CDMA/UMTS channels (Max) | 2 |
| GSM Network type | 850/900/1800/1900MHz |
| CDMA Network type | 800MHz |
| UMTS Network type | 900/2100MHz or 850(800)/2100MHz or 850/900/1900MHz or 850/900/1800/1900MHz |
| Protocol | SIP (RFC3261),IAX2 |
| Transport Protocol | UDP,TCP,TLS,SRTP |
| DTMF | RFC2833, SIP INFO, In-band |
| Codec | G.711A/U law, G.722, G.723.1, G.726, G.729a. |
| Echo Cancellation | ITU-T G.168 LEC |
| LAN | 1 (10/100Mbps) |
| Network | Static IP, DHCP Client, Firewall, VLAN, DDNS, QoS, OpenVPN |
| NAT Traversal | Static NAT, STUN |
| Size | 213x160x44mm |
| Power Supply | AC 100-240V 50/60Hz 0.5A MAX |
| Operation Range | 0°C to 40°C, 32°F to 104°F |
| Storage Range | -20°C to 65°C, -4°F to 149°F |
| Humidity | 10-90% non-condensing |
NeoGate TG200 Features
- USSD
- PIN Modify
- Carrier Selection: Auto/Manual
- Balance Alarm
- Caller ID/CLIR
- Black List
- Hotline
- Call Duration Limitation
- Call Transfer
- Call Back
- Call Status Display
- Call Detail Record (CDR)
- Call Progress Tone Generation
- Call Duration Limitation for SIM Card/Single Call
- LCR (Least Cost Routing)
- Top voice quality (EFR super sound)
- SIP Response Code Switch
- Open API for SMS and USSD
- Real Open API Protocol (Based on Asterisk)
- IP Blacklist
- Network Attack Alert
- System Logs
- Web based configuration
