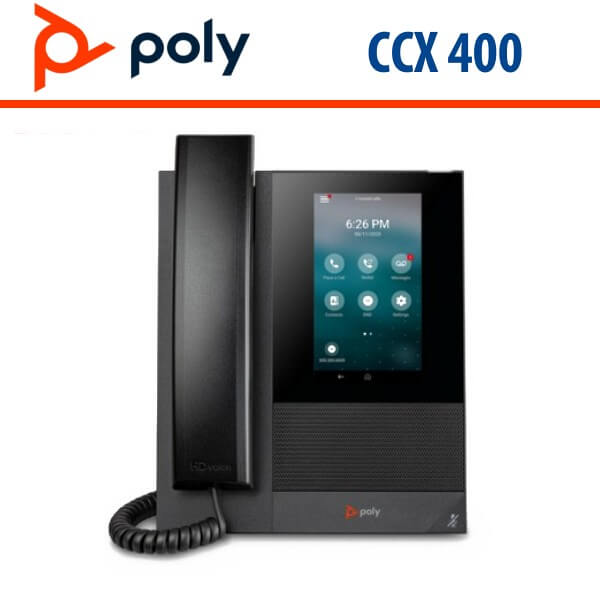

Poly CCX400 Dubai
Poly CCX400 Dubai - Image 2

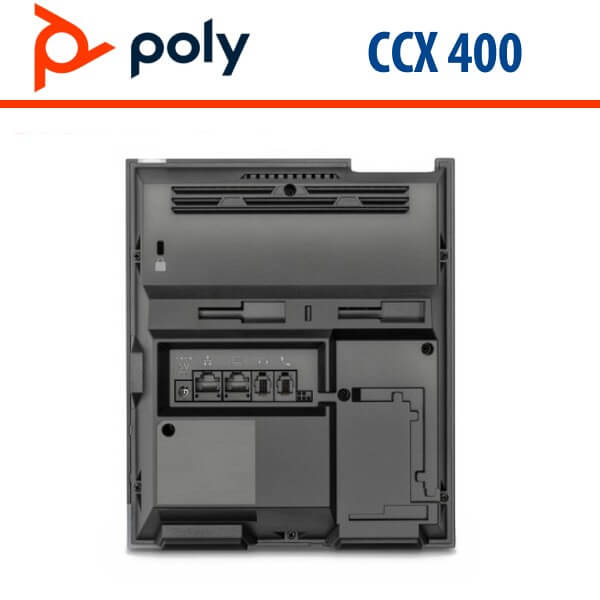

Poly CCX400 Dubai - Image 3

Poly CCX400 Dubai

Poly CCX400 Dubai

The Poly CCX400 Dubai serves as an introductory business media phone, boasting user-friendly functionality. Its interface is designed to be both straightforward and instinctive. Access to contacts and meetings is conveniently available through a quick swipe.

Category:

Description

Poly CCX400 Dubai

The Poly CCX400 Dubai serves as an introductory business media phone, boasting user-friendly functionality. Its interface is designed to be both straightforward and instinctive. Access to contacts and meetings is conveniently available through a quick swipe or tap on the vivid touch screen. With the incorporation of Poly HD Voice and Poly Acoustic Fence, every word and tone is captured without fail.

Streamlining the deployment and management process, the Polycome CCX400 Dubai can be easily provisioned and controlled via the Microsoft Teams Device Portal. Setting it up on desktops or lobby tables is a hassle-free task, and for added convenience, it can be wall-mounted using an optional bracket. The device also accommodates locations without nearby Ethernet drops, with the upcoming option of a Wi-Fi accessory (coming soon), enabling deployment in any area with access to an electrical outlet in Dubai.

Poly CCX 400 IP Phone Features :

  • Colour touch-screen operation with 5″ multi-touch LCD display
  • Hear every nuance with Poly HD Voice and Poly Acoustic Clarity
  • Eliminate distracting background noise with Poly Acoustic Fence
  • Full-duplex speakerphone operation with world-class echo cancellation
  • Wall mountable with optional CCX 400 wall mount Kit
  • Conversations stay on track with Poly HD Voice
  • Eliminate distracting background noise at the source with exclusive award-winning Poly Acoustic Fence technology
  • Easy for IT to manage with robust provisioning and management of telephony deployment and support
  • Deploy the CCX 400 with a simple dial pad (no voicemail) with Microsoft Teams Common Area Phone (CAP) license Or deploy the CCX 400 as an entry-level touch screen phone for Open SIP, Skype for Business, or the full native Microsoft Teams experience

Poly CCX 400 IP Phone Models:

  • 2200-49700-025 CCX 400 Business Media Phone. Open SIP. PoE. Ships without power supply
  • 2200-49700-019 CCX 400 Business Media Phone. Microsoft Teams/SFB. PoE. Ships without power supply

Poly CCX 400 IP Phone Specifications :

  • USER INTERFACE FEATURES
    • Gesture-based, multitouch-capable capacitive touch screen
    • 5-inch colour LCD (720 x 1280 pixel)
    • 9:16 aspect ratio
    • Screen saver
    • On-screen virtual keyboard
    • Voicemail support
    • Adjustable base height
    • One USB type-A port (2.0 compliant) for media and storage applications
    • Unicode UTF-8 character support
    • Adjustable font size selection (regular, medium, large)
    • Normal and dark mode
    • Multilingual user interface including Chinese, Danish, Dutch, English (Canada/ US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, and Swedish
  • AUDIO FEATURES
    • Poly HD Voice technology delivers lifelike voice quality for each audio path; handset, hands-free speakerphone, and optional headset
    • Poly Acoustic Clarity technology providing full-duplex conversations, acoustic echo cancellation and background noise suppression
    • TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex)
    • Frequency response—150 Hz—7 kHz for the handset, optional headset and handsfree speakerphone modes
    • Codecs: G.711 (A-law and μ-law), G.729AB, G.722 (HD Voice), G.722.1 iLBC
    • Individual volume settings with visual feedback for each audio path
    • Voice activity detection
    • Comfort noise generation
    • DTMF tone generation (RFC 2833 and in-band)
    • Low-delay audio packet transmission
    • Adaptive jitter buffers
    • Packet loss concealment
    • OPUS support
  • HEADSET AND HANDSET COMPATIBILITY
    • Dedicated RJ-9 headset port
    • Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
    • Compliant with ADA Section 508 Subpart B
    • 23 (all)
    • Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
    • Compatible with commercially-available TTY adapter equipment
    • USB headset support
  • NETWORK AND PROVISIONING
    • SIP protocol support
    • SDP
    • IETF SIP (RFC 3261 and companion RFCs)
    • Two-port gigabit Ethernet switch
    • 10/100/1000Base-TX across LAN and
    • PC ports
    • Conforms to IEEE802.3-2005 (Clause 40) for Physical media attachment
    • Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation
    • Manual or dynamic host configuration protocol (DHCP) network setup
    • Time and date synchronization using SNTP
    • FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
    • Provisioning and call server redundancy supported1
    • QoS Support—IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP
    • VLAN—CDP, DHCP VLAN discovery, LLDP-MED for VLAN discovery
    • – Network address translation
    • support for static configuration and “keep-alive”
    • SIP signaling
    • RTCP and RTP support
    • Event logging
    • Syslog
    • Hardware diagnostics
    • Status and statistics reporting
    • IPv4 and IPv6
    • TCP
    • UDP
    • DNS-SRV
    • SECURITY
    • 1X authentication and EAPOL
    • Media encryption via SRT
    • Transport layer security (TLS)
    • Encrypted configuration files
    • Digest authentication Password login
    • Support for URL syntax with a password for the boot server address
    • HTTPS secure provisioning
    • Support for signed software executables
  • POWER
    • Built-in auto-sensing IEEE 802.3af Power over Ethernet (Class 3) 13 W (Max)
    • External Universal AC/DC Adapter (optional) 5 VDC @ 3 A (15 W) ENERGY STAR rated
