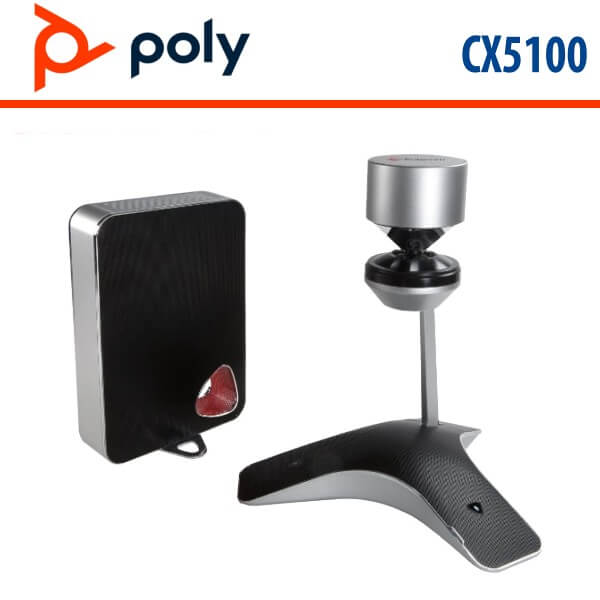

Poly CX5100 Dubai

Panoramic Perspective Experience a comprehensive 360° view with the Poly CX5100 Dubai, combining powerful voice and video capabilities for seamless collaboration. Its 1080p High Definition video quality, coupled with advanced technology, effortlessly merges all content, resulting in a unified package that facilitates efficient and effective meetings.

Effortless Setup The Poly CX5100 Dubai Video Meeting System offers a hassle-free plug-and-play installation process, making it accessible even to users with minimal prior setup experience. Simply connect it to your laptop’s USB port with Skype for Business or Microsoft Lync compatibility, and you’re ready to go.

Audio Excellence Equipped with a microphone pick-up range spanning up to 20 feet (6 meters), the Poly CX5100 Dubai Video Meeting System employs the sophisticated Poly® HD Voice™ algorithm to deliver exceptional performance and sensitivity, ensuring crystal-clear sound quality. The system is complemented by a Console loudspeaker featuring a frequency range of approximately 160Hz – 22kHz and an adjustable volume of up to 88dBA SPL at 0.5 meters. Moreover, the inclusion of 3 Full Duplex omnidirectional coverage microphones enhances noise suppression, guaranteeing undistorted audio transmission and ensuring that every participant’s voice is heard clearly within the expansive coverage of the Poly CX5100 Dubai unified conference system.

Product Specifications

 Dimensions

• Table console :
  • Footprint (W×D): 369×325mm
  • Height: 348mm (privacy cap closed), 401mm (privacy cap extended)
  • Weight: 2.3 kg (exclusive of cables)
• Power Data Box
  • Size (W×H×D): 209.5×300×56mm (excluding stand)
  • Weight : 2.9kg
• Shipping
  • Size (W×H×D): 520×430×430mm
  • Weight: 9.07kg

 Power

• Power consumption: 110 watts, typical
• Universal power supply: 100 – 240V AC, 50 – 60 Hz

 Video Performance

• Panoramic video resolutions supported :
  • 1920 × 288 pixels (requires USB 3.0 and Lync 2013 or Skype for Business)
  • 1056 × 144 pixels
• Active speaker video resolutions supported :
  • HD 1080: 1920 × 1080 pixels (requires USB 3.0 and Lync 2013 or Skype for Business)
  • HD 720: 1280 × 720 pixels
  • VGA: 640 × 480 pixels
  • CIF: 352 × 288pixels
• Frame rate for panoramic and active speaker video, maximum
  • 30 frames per second with 60Hz AC power
  • 25 frames per second with 50Hz AC power
  • Maximum frame rates with systems prior to Lync 2013 will be limited to 15fps (12.5 @ 50Hz)

 Audio Performance

• Console Loudspeaker
  • Frequency Response: 160Hz – 22kHz
  • Volume: adjustable to 88dBA SPL (peak) volume at 0.5 meters
• Console Microphones
  • 3 microphones for omnidirectional coverage
  • Frequency Response: 160Hz – 22kHz
  • Full Duplex (class 1) with noise suppression

 User Interface

• 3 mute buttons with mute/ in – call indication lamps
• Camera on/off indication lamp
• Captive privacy cap with integrated on/off switch for client synch

 Console connectivity

• Proprietary system port for connection to Power Data Box
• USB 3.0 Type A port for proprietary connection to Power Data Box
• USB 3.0 Type B port for connection to PC
• USB 2.0 Type A port for diagnostics/ software update
• 2 extension microphone ports

Power data box connectivity

• Proprietary system port for connection to console
• USB 3.0 Type A interface for proprietary connection to console or to Lync appliance
• USB 2.0 Type A for diagnostics/software update
• Ethernet: RJ – 45/100/1000 Mbit
• Audio RCA jacks (reserved for future use)
• AC power input

Physical security

• Kensington – style lock slot on Console and Power Data Box

Environmental Requirements

• Operating temperature : 0 – 40°C
• Relative Humidity: 15 – 85%( non – condensing)
• Storage temperature: -40 – 60°C
• Recommended Room Conditions
  • Room reverberation time: RT60< 0.600 seconds
  • Ambient noise level: < 50 dBA SPL
  • Optimal Lighting Conditions: 300lux, with a single lighting temperature (no mixed lighting)

 Package Contents

• Tabletop console with integrated 360° camera
• Power data box with a stand
• Quick setup card
• Cables
  • Proprietary system cable
  • USB 3.0 Type A – Type A cable
  • USB 3.0 Type A – Type B cable
  • Ethernet cable
  • AC power cord with local plug

Optional accessories

Extension microphone kit with pair of microphones and cables

• Cable length is 25ft (7.6meters)
