Description

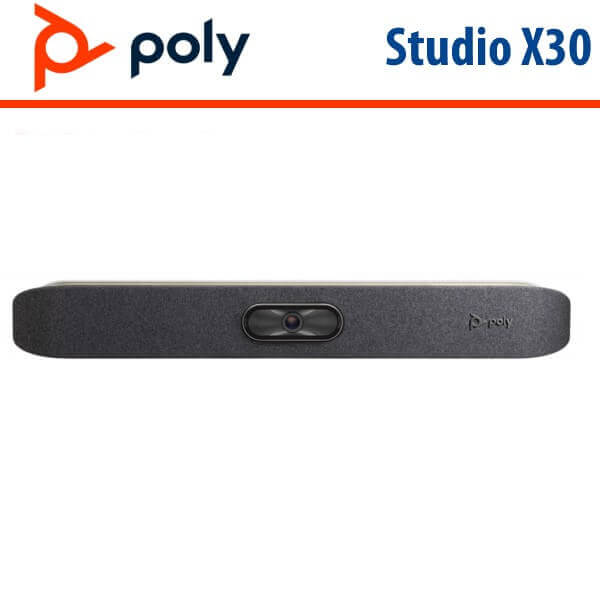

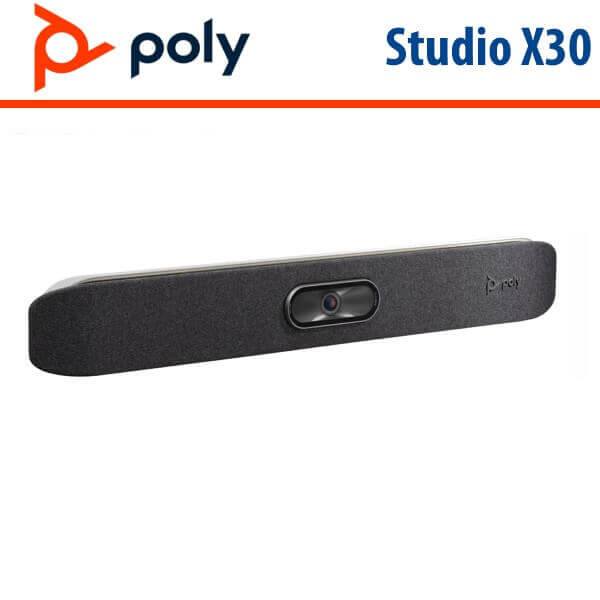

Poly Studio X30 Dubai

The Poly Studio X30 Dubai serves as a comprehensive all-in-one video bar tailored for huddle rooms and small spaces. Its user-friendly interface is seamlessly integrated with leading cloud video services, eliminating the need for a PC or Mac. With a sophisticated beamforming microphone array and an acoustic chamber design, voices are conveyed with exceptional clarity. The built-in wireless content sharing feature enables effortless device connectivity without the hassle of cables or pucks. Simplified setup, management, and maintenance contribute to reduced IT costs, making operations more cost-effective.

Perfect for gatherings of up to six participants, the Poly Studio X30 4K Video Conferencing System Dubai is equipped with in-built support for cloud service platforms, eliminating the necessity for a room PC or Mac. Offering UHD (3840 x 2160) 4K video output and supporting camera zoom up to 4x, the Poly Studio X30 facilitates a dynamic meeting environment. With support for H.323 and/or SIP up to 6 Mbps in Poly App video mode, the HDMI input can be utilized solely for a content source. Delivering a combination of simplicity and elegance, the Poly Studio X30 Video Bars deliver an immersive audio experience, advanced camera functionalities, and instant wireless content sharing, all encapsulated within a sleek and compact design.

In order to maximize functionality, ensure the use of software version 5.9.3 AA or later when pairing Polycom Trio 8500, Polycom Trio 8800 Dubai, or Poly Trio C60 with Poly Studio X or Poly G7500 systems, utilizing software version 3.1 or later.

X30 Features

• Get any small room up and running in minutes, with a simple setup process and all-in-one design
• Ideal for rooms of up to six participants
• Make it easy for anyone, even guests, to share content wirelessly from any personal device—with no special apps or tools needed
• Powerful audio pickup and incredible noise-blocking technology allows every word to be heard without distractions
• On-board support for cloud service platforms means no room PC or Mac is required
• Compact, lightweight design easily fits on top or underneath the display
• Affordable price delivers excellent huddle room performance without breaking the bank

Poly X30 Specifications

• Video standards and protocols
  • 264 AVC, H.264 High Profile, H.265
• Video input
  • 1x HDMI
• Video out
  • 1x HDMI
  • Touch display compatible
• People video resolution
  • 4K, 30 fps (TX and RX) from 2048 Kbps
  • 1080p, 60 fps from 1740 Kbps
  • 1080p, 30 fps from 1024 Kbps
  • 720p, 60 fps from 832 Kbps
  • 720p, 30 fps from 512 Kbps
• Content video resolution
  • Input
    • UHD (3840 x 2160)
    • HD (1920 x 1080p)
    • WSXGA+ (1680 x 1050)
    • UXGA (1600 x 1200)
    • SXGA (1280 x 1024)
    • WXGA (1280 x 768)
    • HD (1280 x 720p)
    • XGA (1024 x 768)
    • SVGA (800 x 600
  • Output
    • UHD (3840 x 2160)
    • WUXGA (1920 x 1200)
    • HD (1920 x 1080)
    • WSXGA+ (1680 x 1050)
    • SXGA+ (1400 x 1050)
    • SXGA (1280 x 1024)
    • HD (1280 x 720)
    • XGA (1024 x 768)
  • Content frame rate
    • – 5–60 fps (up to 4K resolution at 15 fps in call)
  • Content sharing
    • Poly Content App support
    • Apple Airplay
    • Miracast
    • HDMI input
    • Whiteboarding
  • Camera
    • 4x digital zoom
    • 120° FOV
    • UHD 2160p (4K) capture resolution
    • Automatic people framing
  • Audio input
    • Four MEMS microphones
  • Audio output
    • Single Speaker
  • Other interfaces
    • 1x USB-A (3.0)
    • 1x USB-C
    • Bluetooth 5.0
    • Wi-Fi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency
  • Audio standards and protocols
    • 22 kHz bandwidth with Poly Siren 22 technology, AAC-LD (TIP calls), G.719
    • 14 kHz bandwidth with Poly Siren 14 technology, G.722.1 Annex C
    • 7 kHz bandwidth with G.722, G.722.1
    • 4 kHz bandwidth with G.711, G.728, G.729A
  • Network
    • IPv4
    • 1x 10/100/1G Ethernet
    • Auto-MDIX
    • 323 and/or SIP up to 6 Mbps in Poly App video mode
    • Poly Lost Packet Recovery (LPR) technology
    • Dynamic bandwidth allocation
    • Reconfigurable MTU size
    • Web proxy support—basic, digest, and NTLM
    • Simple Certificate Enrollment Protocol (SCEP)
  • Security
    • Media Encryption (H.323, SIP): AES-128,AES-256
    • 235.6 support
    • Authenticated access to admin menus, web interface, and APIs
    • Local account password policy configuration
    • Security profiles
    • Local account and login port lockout
    • Secure defaults
    • Remote logging with support for TLS
    • Active directory external authentication
