Description

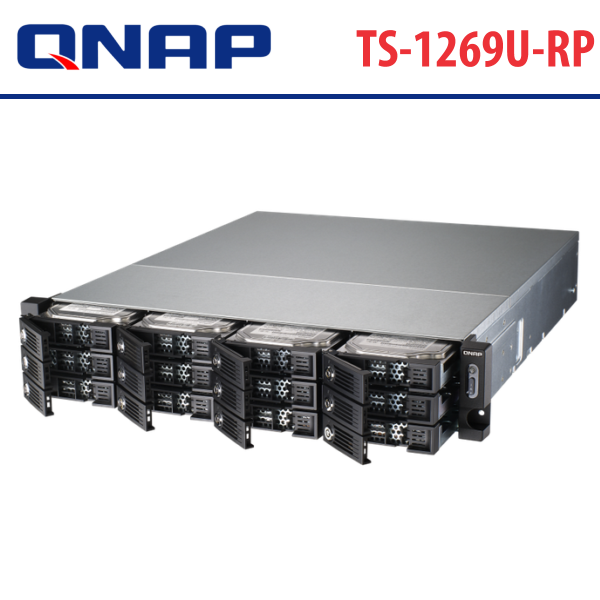

Qnap TS-1269U-RP Dubai
The Qnap TS-1269U-RP Dubai is a comprehensive 12-bay NAS server tailored for small and medium-sized businesses (SMBs), offering outstanding performance to address the storage needs of contemporary SMB IT setups. It boasts several notable features, including secure file sharing across Windows, Mac, and Linux/Unix platforms, a versatile iSCSI/IP-SAN storage solution, and a range of valuable business applications. With a robust lineup of integrated backup solutions, this 12-bay NAS server ensures the safe preservation of critical business data, safeguarding it against unforeseen data loss. Additionally, it serves as an excellent shared storage solution for virtualized and clustered environments, holding VMware Ready and Citrix Ready certifications while maintaining seamless compatibility with Microsoft Hyper-V setups.
Features
Policy-Based Unauthorized IP Blocking
You can allow, deny or auto-block specified IP addresses or network domains, which attempt to connect to the Turbo NAS, via SSH, Telnet, HTTP(S), FTP, Samba or AFP.
Remote Login
The Qnap TS-1269U-RP Dubai supports remote login via an SSH (secure shell) or Telnet connection.
SSL Security (HTTPS)
The Qnap TS-1269U-RP Dubai supports HTTPS connection. You can upload a secure certificate and RSA private key in X.509PEM format issued by a trusted provider to allow access to the Turbo NAS via a secure SSL login.
Secure FTP
The Qnap TS-1269U-RP Dubai offers secure data transfer with SSL/TLS (explicit) encryption. It also supports passive FTP port range setup.
Encrypted Remote Replication by Rsync
The data on the Qnap TS-1269U-RP Dubai can be backed up to or from another Turbo NAS or Rsync server over the network securely.
Shared Folder Management
You can choose to hide or show selected shared folders of the Qnap TS-1269U-RP Dubai on the Windows network.
User Authority Management
Create multiple users and specify their password, quota and user groups by simply uploading the batch files in TXT or Excel CSV format to the NAS. Export and import of users list are also supported.
Well-Rounded Backup Solutions
The Turbo NAS offers flexible server backup solutions, including encrypted remote replication, Real-time Remote Replication (RTRR) and cloud-based storage backup. Windows and Mac users can use QNAP NetBak Replicator utility and Time Machine respectively to back up data to the Turbo NAS. Furthermore, the Turbo NAS supports third-party backup software such as Veeam Backup and Replication and Acronis True Image.
Disaster Recovery Solution
The Turbo NAS offers business continuity and high availability of data with its ability to recover their data from disasters.
Real-time Remote Replication
Real-time Remote Replication (RTRR) provides real-time or scheduled data replication between the Turbo NAS and a remote QNAP NAS, an FTP server or an external drive.
iSCSI LUN Snapshot/Backup
The integrated snapshot technology enables users to back up contents in the LUN to various storage destinations, including Windows shared folders via SMB/CIFS, Linux shared folders via NFS or local shared folders on the Turbo NAS.
Cloud Storage Backup
The Turbo NAS supports Amazon S3, Google Drive, ElephantDrive and Symform cloud storage backup services, which have several backup modes including real-time, scheduled backup and versioning control so that the data can be restored from any point of time. With ElephantDrive, cloud storage can be monitored through a web browser. An extra set of the stored data is always available to enable quick and easy remote data recovery.
QNAP TS-1269U-RP Specs
Hardware Specification | |
CPU | Intel Atom 2.13 GHz Dual-Core Processor |
DRAM | 2 GB RAM (Expandable RAM, up to 3 GB) |
Flash Memory | 512 MB DOM |
Hard Disk Drive | 12 x 3.5″ or 2.5″ SATA 6 Gbps, SATA 3 Gbps hard drive or SSD |
Hard Disk Tray | 12 x Hot-Swappable and Lockable Tray |
LAN Port | 2 x Gigabit RJ-45 Ethernet Ports |
LED INDICATORS | Status, LAN, USB, HDD 1-12 |
USB | 2 x USB 3.0 ports (rear) 4 x USB 2.0 ports (rear) (Support for USB printer, pen drive, USB hub, and USB UPS etc.) |
eSATA | 2 x eSATA Ports (rear) |
Buttons | Power, Reset |
Alarm Buzzer | System Warning |
Secure Design | Kensington lock security slot for theft prevention |
VGA | Reserved for maintenance |
HDMI | Reserved for maintenance |
Fan | 2 x Quiet Cooling Fans (7 cm, 12 V DC) |
Power Consumption | Sleep Mode: 66.8 W In Operation: 81.2 W Power-off (in WOL mode): 1 W (with 4 x 1 TB HDD installed) |
Power Supply | Input: 100-240 V AC, 50/60 Hz Output: Redundant 380 W |
Software Specification | |
Operating System | Embedded Linux |
Supported Clients | Windows XP, Vista, Windows 7 (32/64-bit), Windows 8 (32/64-bit), Windows Server 2003/2008 R2/2012 Apple Mac OS X Linux & UNIX |
Supported Web Browsers | Microsoft Internet Explorer 8, 9 & 10 Mozilla Firefox 8+ Apple Safari 4+ Google Chrome |
Multilingual Support | Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
File System | Internal Hard Drive: EXT3, EXT4 External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+ |
Networking | TCP/IP (IPv4 & IPv6: Dual Stack) Dual Gigabit – Failover – Multi-IP Settings – Port Trunking/NIC Teaming (Modes: Balance-RR, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb) Service Binding based on Network Interfaces Virtual LAN (VLAN) DHCP Client, DHCP Server Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC TFTP Server with PXE Booting UPnP & Bonjour Discovery USB Wi-Fi Adapter Support |
Backup Solutions | Real-time Remote Replication (RTRR) Works as Both RTRR Server & Client with Bandwidth Control Real-time & Scheduled Backup Encryption, Compression, File Filter and Transfer Rate Limitation Block-level Remote Replication Works as Both Rsync Server & Client with Bandwidth Control Encrypted Replication between QNAP NAS Servers Desktop Backup by QNAP NetBak Replicator for Windows Apple Time Machine Support with Backup Management Data Backup to Multiple External Storage Devices Data Backup to Cloud Storage (Amazon S3, ElephantDrive, Symform and Google Drive) |
Security | IP Filter and Policy-based Automatic IP Blocking Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication between QNAP NAS Servers (Rsync over SSH) |
