Description

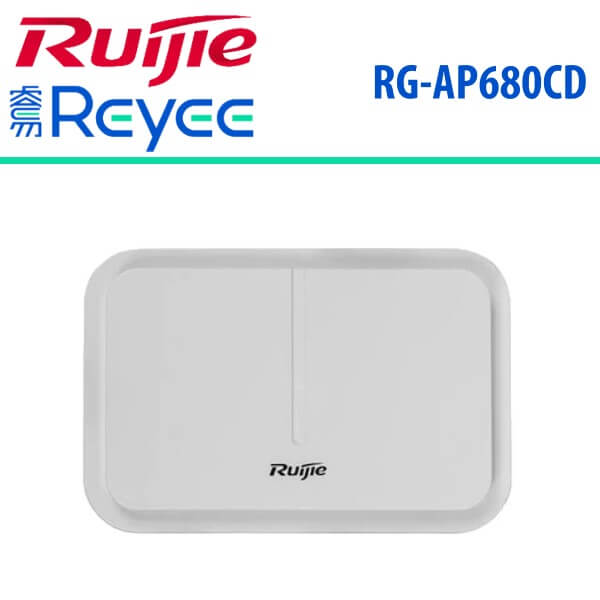

Ruijie RG-AP680CD Dubai

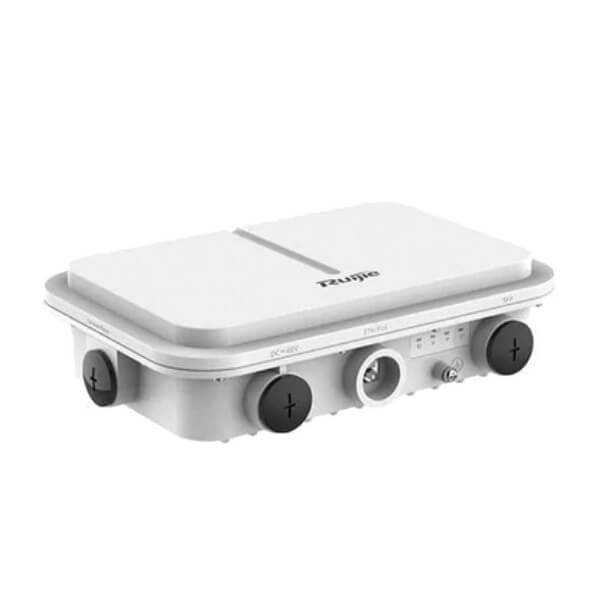

The Ruijie RG-AP680CD Dubai is a high-performance enterprise outdoor access point designed for extreme outdoor conditions, boasting Wi-Fi 6 (802.11ax) capabilities and an IP68 rating. This rugged device offers concurrent dual-band operation with a blazing fast access rate of up to 2.4Gbps, featuring four spatial streams and a built-in directional antenna. The Ruijie RG-AP680CD Dubai can seamlessly switch between FAT/FIT modes, and it’s equipped with 1 SFP port and 1 10/100/1000M port with support for PoE or local power supply.

When it comes to wireless network security, RF control, mobile access, QoS, and seamless roaming, the Ruijie RG-AP680CD Dubai takes all these important factors into account. It seamlessly integrates with Ruijie RG-WS Wireless Controller Series/Cloud AC, providing advanced security, access control, and efficient Wi-Fi user data forwarding.

The IP68-rated enclosure of the Ruijie RG-AP680CD Dubai makes it suitable for extreme indoor and outdoor environments, capable of withstanding harsh weather conditions and other environmental challenges. This design significantly simplifies installation and maintenance. With its built-in directional antenna, the Ruijie RG-AP680CD Dubai can deliver extensive Wi-Fi coverage across a wide range of scenarios. It also supports multi-hop and point-to-multipoint bridge features to enhance deployment flexibility.

For efficient management and enhanced wireless security, all Ruijie enterprise APs support a hybrid management mode. Whether deployed as a standalone AP (Fat mode) or a managed AP (Fit mode), the AP automatically detects its operation mode without requiring extra effort for firmware upgrades. Depending on your specific needs, you can choose one of the following wireless controller options:

1. Public Cloud (Ruijie Cloud): Ideal for SMEs, it offers integrated captive portal, authentication (such as PPSK for employees, Facebook, voucher, account, etc.), and reporting features. The Ruijie Cloud Mobile App simplifies network provisioning and management for SME customers.

2. Hybrid Cloud (RG-WS6000 Series Wireless Controller): Targeted at enterprise offices and campuses with single or multiple sites and high-density AP deployment. The controller appliances are installed on-premises, supporting up to 5000 APs per cluster. The cloud management platform offers centralized device configuration and monitoring, AI radio (RF) optimization, reporting, and more.

3. Private Cloud (RG-MACC Software Controller): Suited for ISP/MSP, government, or multi-national corporations with diverse customer sites and integration requirements for billing, portal, and security systems. RG-MACC supports unified device management for wireless access points, switches, and gateway devices.

Features

• Wi-Fi 6 Certified
• Max 2.4Gbps with concurrent dual-band Design
• Max 1024 Client connections
• Built-in Smart Directional Antenna
• Outstanding Environmental Adaptability (IP68, -40-65°C, Surge Protection upto 9kV)
• OFDMA, MU-MIMO and BSS Technology for minimal wireless signal interference
• Hybrid Management: support standalone AP to over thousands of APs with deployment options of appliances, private cloud or public cloud service
• Mobility Management: Free mobile app available for RG-MACC-Base private cloud or Ruijie Public Cloud customers

Wi-Fi 6 (802.11ax) Technology

Ruijie RG-AP680CD Dubai adopts the dual-band dual-radio 802.11ax design with up to 4 spatial streams and built-in directional antenna. The first radio offers up to 0.575Gbps access rate at 2.4G and supports switching to 5G with up to 1.2Gbps access rate, while the second radio offers up to 1.2Gbps access rate at 5G. The AP offers a maximum wireless access rate of 2.4Gbps. 2.4G + 5G is recommended, which offers access rate of 1.775Gbps.

OFDMA High-density User Access

Ruijie RG-AP680CD Dubai supports OFDMA of 802.11ax, which divides the WLAN channel into multiple narrower subchannels, with each user occupying one or more subchannels. By scheduling multiple users to receive and send packets concurrently via the AP, user competition and back-off can be reduced, thereby reducing network latency and improving network efficiency.

Spatial Reuse with BSS Color

Ruijie RG-AP680CD Dubai supports spatial reuse with basic service set (BSS) color of 802.11ax to identify the BSSs of different WLANs in the network by different coloring (BSS color), and further divide them into internal (BSS which belongs to the device) and external BSS. Different packet receiving and sending thresholds can be maintained. When receiving packets, BSS coloring is used to quickly identify the packet of external BSS. If the signal strength is lower than the receiving threshold of external BSS, the packet will be ignored. The transmission of the internal BSS packets will be not affected. This technology can implement channel reuse in a high-density scenario, greatly reducing the impact of co-channel interference for the actual network deployment.

Industry-leading Local Forwarding Technology

Employing Ruijie’s intelligent local forwarding technology, Ruijie RG-AP680CD Dubai eliminates the traffic bottleneck of wireless access controllers. Deploying with the Ruijie RG-WS Wireless Controller Series, users can flexibly configure the data forwarding mode for Ruijie RG-AP680CD Dubai. The AP also controls whether the data will be forwarded via the wireless controller according to the SSID or user VLAN, or directly sent to the wired network for data exchange. The local forwarding technology can classify and forward delay-sensitive data which requires real-time transmission through the wired network to greatly alleviate the traffic pressure on the wireless controllers and better meet the high traffic transmission requirements of the 802.11n and 802.11ac network.

Abundant QoS Policies

Ruijie RG-AP680CD Dubai supports a wide variety of QoS policies. For example, it provides WLAN/AP/STA-based bandwidth limitations which prioritize important and critical data transmission over others for bandwidth guarantee. With the multicast-to-unicast technology, Ruijie RG-AP680CD Dubai resolves the video lagging problem due to packet loss or high latency in the wireless network, and highly enhances user experience of the multicast video services of wireless networks.
