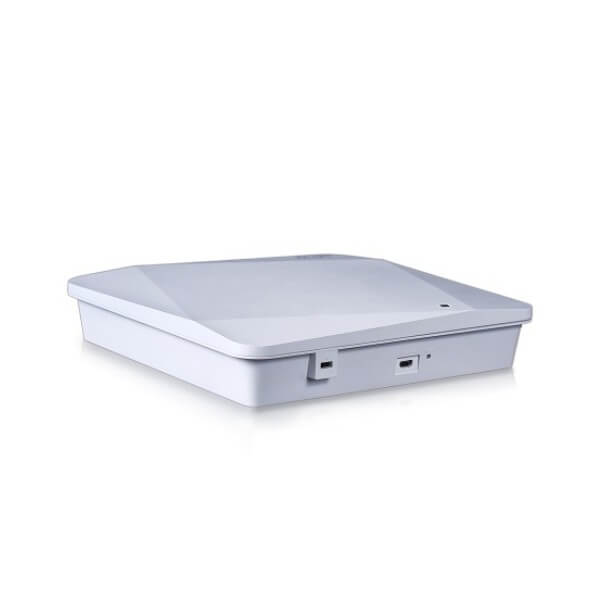

Ruijie RG-AP710 Dubai

Ruijie RG-AP710 Dubai

The Ruijie RG-AP710 Dubai Access Point offers a cost-effective solution with 802.11ac technology, featuring a 2×2 MIMO setup and concurrent dual-band design for data rates of up to 1.167Gbps. Users can leverage Ruijie’s hybrid management approach.

Category:

Description

Ruijie RG-AP710 Dubai

The Ruijie RG-AP710 Dubai Access Point offers a cost-effective solution with 802.11ac technology, featuring a 2×2 MIMO setup and concurrent dual-band design for data rates of up to 1.167Gbps. Users can leverage Ruijie’s hybrid management approach, allowing them to choose between the Lifetime FREE Ruijie Cloud Management and Hardware Controller to adapt to various fast-changing business requirements.

With its 802.11ac concurrent dual-band design, the Ruijie RG-AP710 Dubai delivers data rates of up to 1.167Gbps, making it suitable for the majority of small office and retail store environments. Offering 100% Cloud Management, the Ruijie RG-AP710 Dubai strikes a perfect balance between price and performance for small to medium-sized businesses. Whether you opt for cloud or hardware-based control, both options provide advanced radio optimization, seamless wireless roaming, and secure authentication right out of the box.

Features

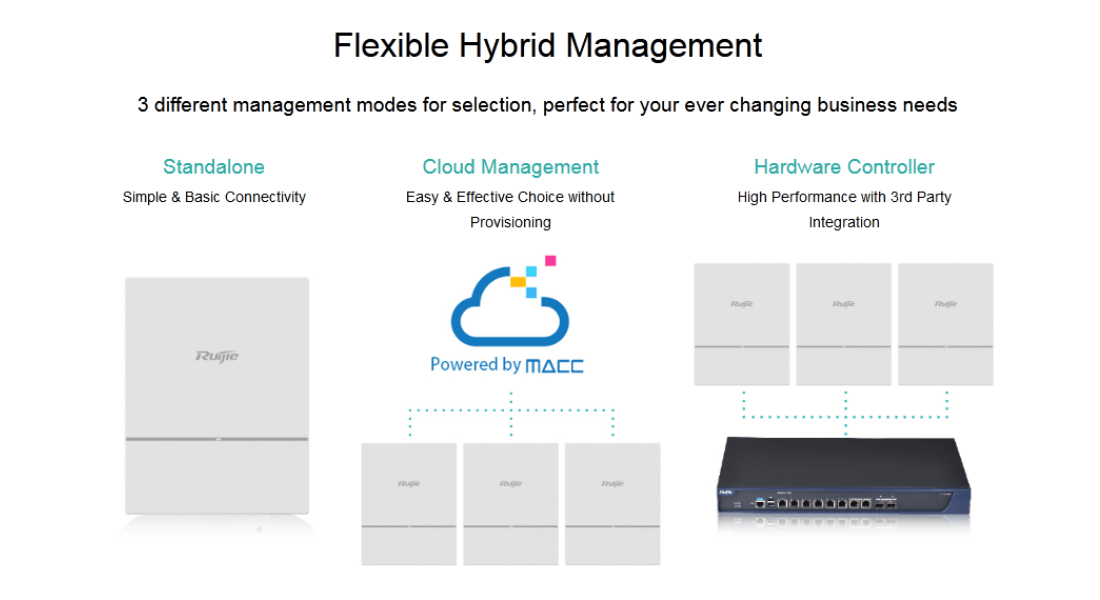

Flexible Hybrid Management

Ruijie RG-AP710 Accesspoint Dubai features Ruijie SME AP offering the flexibility for SME to choose the mode of management. There are 3 different management modes for selection. For the Ruijie Cloud option, no extra cost or firmware upgrade is required, which saves company expenses and time.

Selection between Ruijie Cloud and Hardware Controller

In some cases, a local on-premise wireless controller is required due to some business requirement. Ruijie RG-AP710 Accesspoint Dubai allows the flexibility according to customer preference, the AP can be either managed by Ruijie Cloud or on-premise wireless controller

Performance Guarantee (Tolly© Certified)

Tolly Group is one of the reputable 3rd party independent performance testing organization. Over 65% of Fortune 100 Companies turn to Tolly Reports to assist in strategic technology decisions. The Ruijie RG-AP710 Accesspoint Dubai Wireless Access Point performance is further validated in Tolly certified report. We have outperformed other major vendor flagship wireless access point in the real-world performance rating.

Stylish Design

Ruijie RG-AP710 Accesspoint Dubai employ a simplistic and stylish design to fit different scenarios. The APs feature an integrated antenna design and hidden LAN port along with hidden cabling to hide the messy wires, which gives a professional and simplistic deployment style that is less noticeable.

Mobile Operation

On-The-Go4 Ruijie Cloud offers an innovative breakthrough which allows device operation and management from your smartphones at your fingertips. Now you can monitor your Wi-Fi user experience, traffic and client analysis anytime and anywhere. An alarm notification will be pushed to your smartphone if there’s device issue found in your network. It helps SME business to know and understand the real time situation of Wi-Fi network. 2Ruijie Cloud required 3Ruijie Cloud required 4Ruijie Cloud required

Fast Provisioning

Ruijie Cloud provides a mobile APP which allows devices onboarding and provisioning completed by just 4 simple steps. Typically, it takes less than 5 minutes from unboxing Ruijie wireless access point to Wi-Fi up and running, which significantly simplifies Wi-Fi deployment.

Social Media Login

Social media is huge part of our lives, it is easier to and more convenient to let your guest login to your Wi-Fi by using their social media credential. Ruijie Cloud provides an ease of use integrated Facebook for guest Wi-Fi login. A simple captive portal with Facebook login button can be built easily by using step by step wizard. No web programming skill is required.

Technical Specifications

Model Ruijie RG-AP710
Target Deployment Retail Chain Store, Small & Medium-sized Business Office, Boutique Hotel
Type Indoor Ceiling/Wall-mounting
Basic Specifications Radio Concurrent Dual-band
Protocol 802.11a/b/g/n/ac
Operating Bands 802.11b/g/n : 2.4GHz to 2.483GHz

802.11a/n/ac : 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries)

Antenna Built-in Omni-directional Antenna
Antenna Gain 2.4G : 3dBi

5G : 3dBi

Max Throughput Maximum throughput of 2.4G : 300Mbps

Maximum throughput of 5G : 867Mbps

Maximum throughput per AP : 1167Mbps

Modulation OFDM :BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-QAM@48/54Mbps

DSSS :DBPSK@1Mbps,DQPSK@2Mbps,and CCK@5.5/11Mbps

MIMO-OFDM :BPSK, QPSK, 16QAM, 64QAM, 256QAM

Receiver Sensitivity 11b :-96dBm(1Mbps),-93dBm(5Mbps),-89dBm(11Mbps)

11a/g :-91dBm(6Mbps),-85dBm(24Mbps),-80dBm(36Mbps),-74dBm(54Mbps)

11n :-90dBm(MCS0),-70dBm(MCS7),-89dBm(MCS8),-68dBm(MCS15)

11ac HT20 :-88dBm(MCS0), -63dBm(MCS9)

11ac HT40 :-85dBm(MCS0), -60dBm(MCS9)

11ac HT80 :-82dBm(MCS0), -57dBm(MCS9)

Spatial Streams 2×2
Maximum Transmit Power 100mW
IP Rating IP41
Ports 1 10/100/1000BASE-T Ethernet uplink

Port LAN1 supports PoE

1 Console Port

Power Power Supply Local power supply (DC 5V/3A)

PoE (802.3af)

Power Consumption <12.95W
WLAN Maximum clients per AP 256
BSSID capacity 32
Remote Intelligent Perception Technology (RIPT) Support
Intelligent load balancing based on the number of users or traffic Support
STA control Support
Bandwidth control Support
Preference for 5GHz (band select) Support
Band Steering (5G Priority) Support
Security PSK, Web, 802.1x authentication Support
PPSK authentication Support
Data encryption WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
PEAP authentication Support
User isolation Support
Rogue AP detection and countermeasure Support
RADIUS Support
Wireless Intrusion Detection System(WIDS) Support
Wireless Intrusion Prevention System (WIPS) Support
Routing IPv4 address Static IP address or DHCP reservation
IPv6 address Manual or automatic configuration
Multicast Multicast to unicast conversion
Management and Maintenance Network management SNMP v1/v2C/v3, Telnet, TFTP, Web management
Cloud AC management Support
FAT/FIT switching Support
External Characteristics Lock Support
LED Indicators 1 LED indicator (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to enable silence mode)
Relevant Standard Wi-Fi Alliance Certification Support
Radio Standard EN300 328

EN301 893

EMC Standard GB9254

EN301 489-1

EN301 489-17

EN 55032

EN 61000

EN 55035

Safety Standard GB4943

EN/IEC 60950-1

Specifications Dimensions (W x D x H) (mm) 194 × 194 × 37
Weight 0.42kg
Work Environment Temperature Operating Temperature : -10°C to 50°C

Storage Temperature : -40°C to 70°C

Humidity Operating Humidity : 5% to 95% (non-condensing)

Storage Temperature : 5% to 95% (non-condensing)
