Description

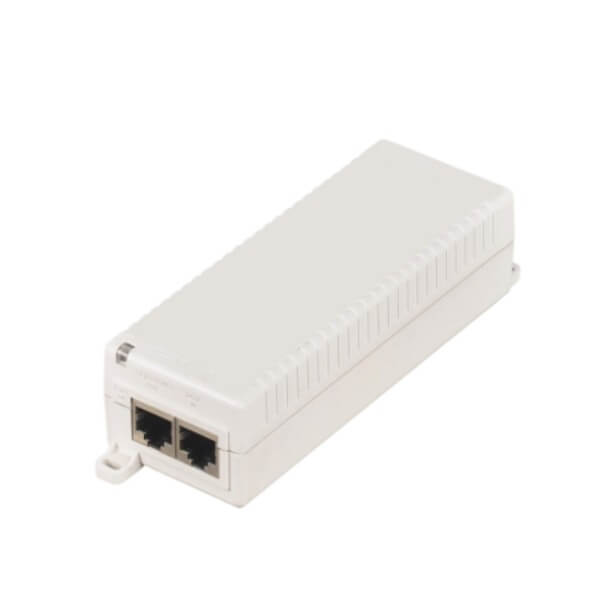

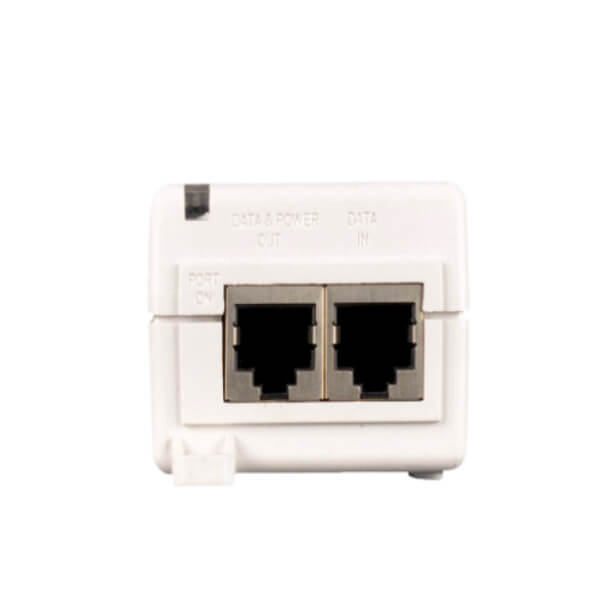

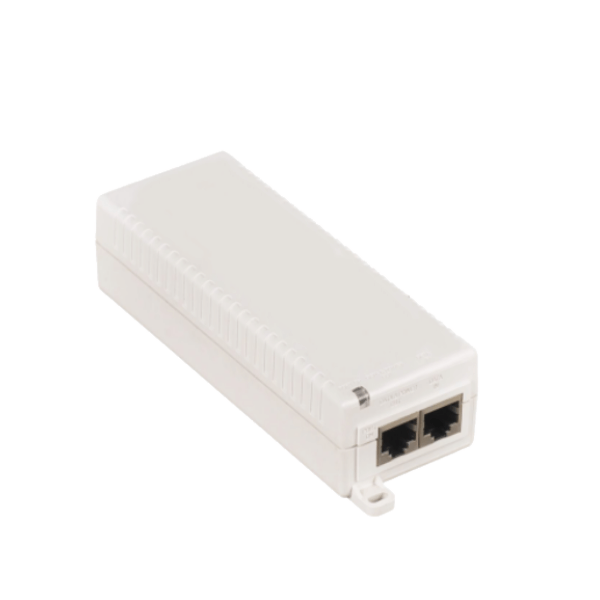

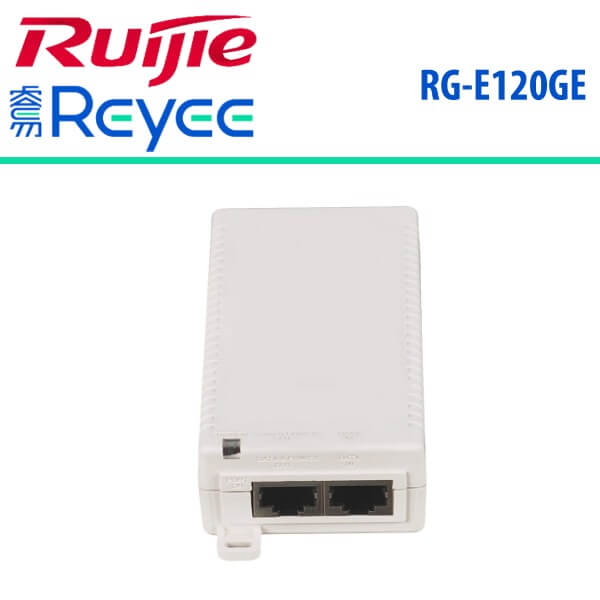

Ruijie RG-E120GE Dubai
The Ruijie RG-E120GE Dubai Power Injector is compliant with the IEEE 802.3at standard, making it compatible with PSE (Power Sourcing Equipment) adapters that support PoE (Power over Ethernet) power supply. Its primary purpose is to provide power to remote management devices, including wireless access points, SOHO switches, IP phones, webcams, and more. All of the RJ45 ports on this Power Injector are equipped with auto MDI/MDIX cable recognition, and it can transmit power over Ethernet cables for distances of up to 100 meters, allowing for flexible deployment of powered devices (PDs).
The Ruijie RG-E120GE Dubai Power Injector offers robust short circuit protection and features intelligent automated PD recognition. This ensures that the Power Injector identifies whether the connected device is a PD, preventing any potential harm that a PSE appliance might cause to a non-PoE device. With its modern and elegant design, the Ruijie Power Injector not only maximizes cost savings but also proves to be an ideal choice for a wide range of network environments, including large-scale campuses, enterprises, public hotspots, sports stadiums, hotels, shops, and small to medium-sized offices.
Features
- Up to 15.4W of Power
- Compatible with all IEEE 802.3af standards
- Safe: Low Power Devices Receive Only the Power They Need
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non–standard Ethernet Terminals
- Supports 10/100/1000Base-T Applications
- Compact Design Fits Easily in WLAN Access Point Installations
Specifications
| Model | RG-E-120(GE) |
| Ports | 10/100/1000 Mbps Copper port (RJ-45)
10/100/1000 Mbps PoE Copper port (RJ-45) |
| Power | Output Power Voltage : 50V DC
Output Port Power : 15.4W |
| Dimensions (W x H x L) (mm) |
53 x 32.5 x 140 |
| Weight | 200g |
| Temperature | Operating Temperature : 0°C to 45°C
Storage Temperature : -30°C to 85°C |
| Humidity | Operating Humidity : 5% to 90% (non-condensing)
Storage Humidity : 5% to 95% (non-condensing) |
| Altitude | Operating Altitude : 0 to 3048m |
| Regulatory Compliance | IEEE 802.3afRoHS Compliant, WEEE Compliant, CE |
| MTBF | >100,000 hours @25°C |
| Electromagnetic Emission & Immunity Safety Approval | FCC Part 15, EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI, UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1 |
