Description

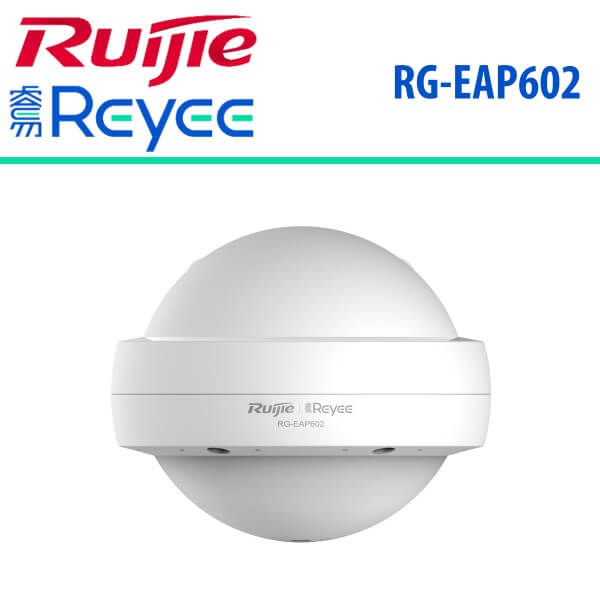

Ruijie RG-EAP602 Dubai

The Ruijie RG-EAP602 Dubai Accesspoint  is a powerful outdoor wireless access point designed to cater to various public settings such as villages, villas, parks, scenic spots, and plazas. It supports the 802.11b/g/n/ac standards and operates on both 2.4GHz and 5GHz bands simultaneously. With dual-stream MIMO technology, it offers impressive speeds of 300Mbps at 2.4GHz and 867Mbps at 5GHz, delivering up to 1167Mbps per access point.

Equipped with built-in omnidirectional high-gain antennas, this access point provides wide and sensitive coverage. It’s an excellent choice for deploying both outdoor wireless coverage and surveillance systems. The inclusion of two gigabit Ethernet ports allows direct connections to cameras or cascading switches, expanding the range of outdoor networking solutions and applications.

One of the standout features of the Ruijie RG-EAP602 Dubai is its support for self-organizing networks. This means devices can automatically discover, connect, and configure themselves without the need for controllers or internet access. Users can easily manage device deployment, configuration, and network operation and maintenance through a mobile app, reducing equipment, labor, and time costs during wireless network setup.

The access point also provides various management options, including local and remote management via the mobile app, web interface, Ruijie Cloud platform, and routers. It even allows for collaborative management by sharing network access with third parties. This all results in a more straightforward, user-friendly, secure, and convenient enterprise network experience.

Features

• 11ac Wave2 technology
• 300m coverage radius
• Auto-provisioning via Self-Organizing Network: Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between routers, switches, and wireless APs without the need for controllers or Internet access;
• Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App;
• Stable wireless service under harsh environment： Surge Protection 6KV | IP Rating IP68 Operating temperature: -30°C～65°C
• Industrial Design

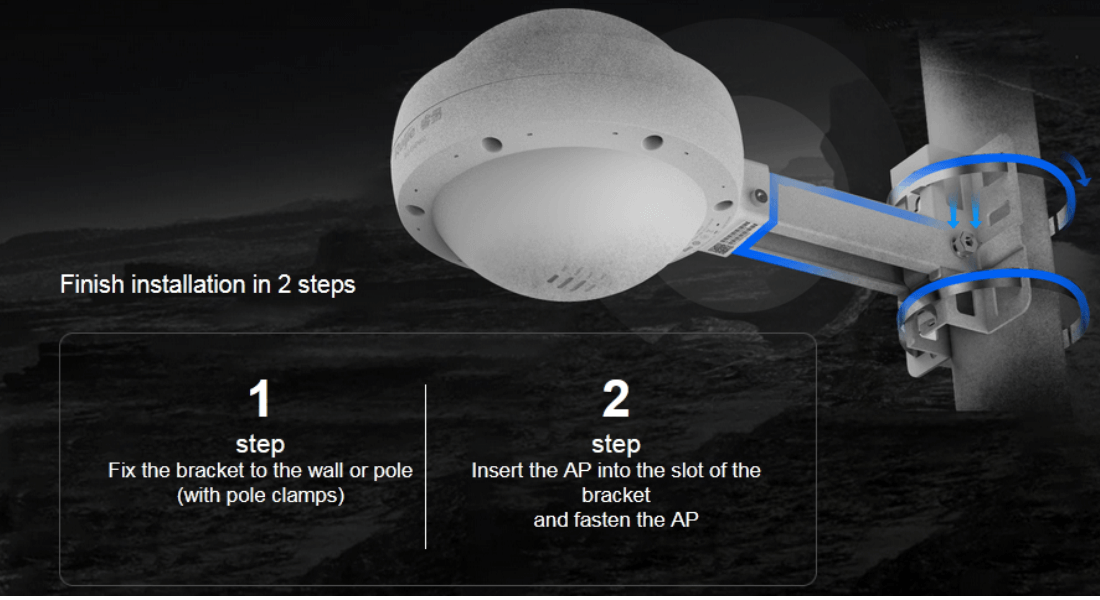

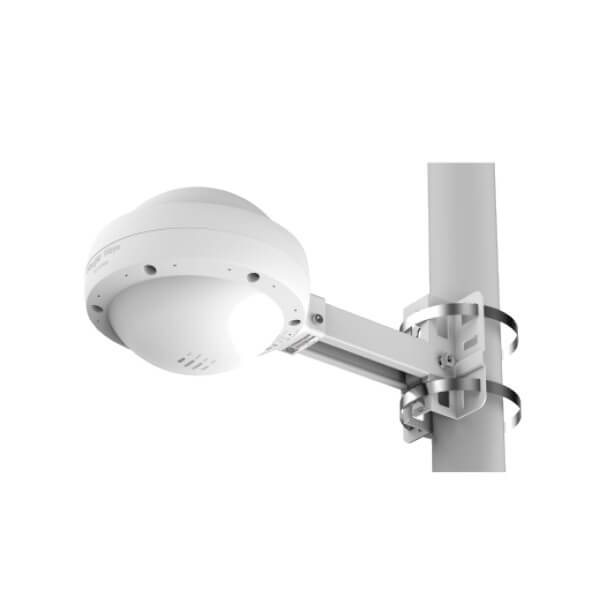

Separate mounting bracket installation

With the separate mounting bracket installation, Ruijie RG-EAP602 Accesspoint Dubai installation can be completed quickly in two steps, reducing the difficulty of working at heights.

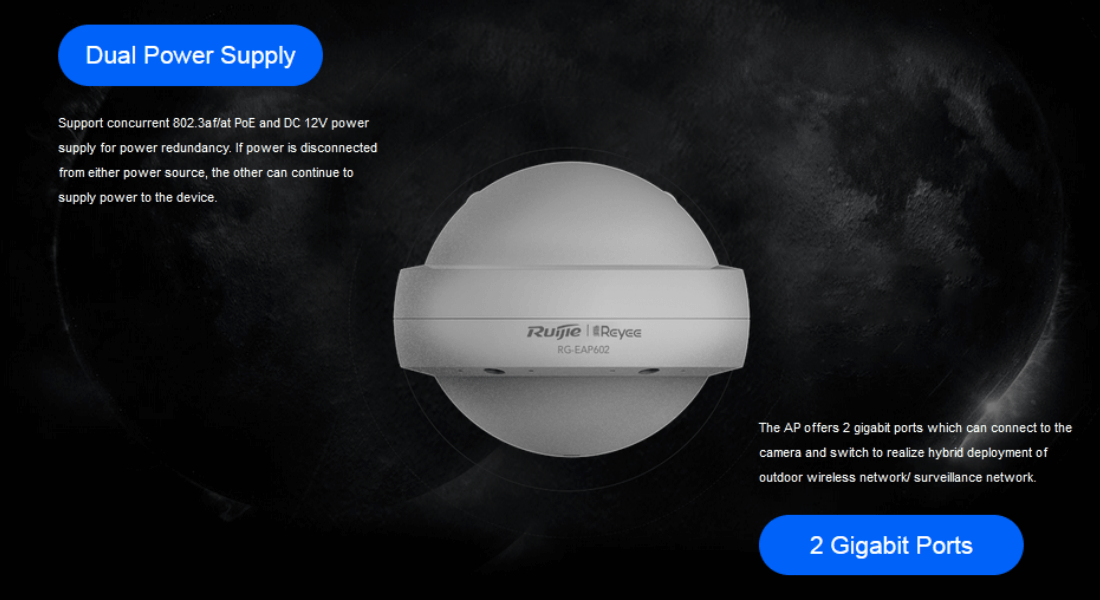

Dual power supply

Ruijie RG-EAP602 Accesspoint Dubai supports 802.3af/at PoE and DC12V local power supply. The two power supply modes can be connected concurrently to offer power redundancy, avoiding power failure caused by lightning damage to the power supply and greatly improving outdoor operation reliability.

Dual Ethernet ports

This Access Point Dubai is ideal choice for the hybrid deployment of outdoor wireless coverage and outdoor surveillance. The 2 gigabit Ethernet ports can directly connect to cameras or cascade switches, which greatly enriches the outdoor networking solutions and application scenarios.

Smart networking

The Ruijie RG-EAP602 Accesspoint Dubai supports 3 networking modes including router management, Ruijie Cloud platform management and smart network management. It can work with Reyee routers, smart PoE switches and APs for unified discovery, networking, configuration and management. It can also operate under routers of any brand without hardware controller, thereby reducing the cost of network construction or transformation.

High-performance wireless access

The RG-EAP602 Access Point supports 802.11n@2.4GHz and 802.11ac@5GHz, offering access rate of 300Mbps at 2.4Ghz, 867Mbps at 5GHz and up to 1167Mbps per AP. The superior wireless performance greatly optimizes the wireless users’ network experience. The 164 maximum concurrent clients and up to 300m coverage radius also significantly improve the deployment result of outdoor wireless scenarios.

Excellent environmental adaptability

The Ruijie RG-EAP602 Accesspoint Dubai offers an IP68-rated enclosure that fulfills waterproof, dustproof, damp-proof and flame-retardant requirements to withstand harsh environments such as wind erosion, rain and high humidity. The features greatly lengthen the equipment life span and effectively reduce the maintenance cost. The industrial-grade components and enclosure can withstand a wide temperature range from -30°C to 65°C without any influence on the stability and life span, which is very suitable for the harsh outdoor environments including the cold weather and humid weather.

AI network optimization

Intelligent network management and optimization can be achieved through artificial intelligence, other network smart features include:

• Automatically recognize and add the new equipment to the network
• Automatically avoid WAN address conflict
• Smart network topology displays and diagnosis
• Network optimization and radio frequency adjustment

Specifications
