Description

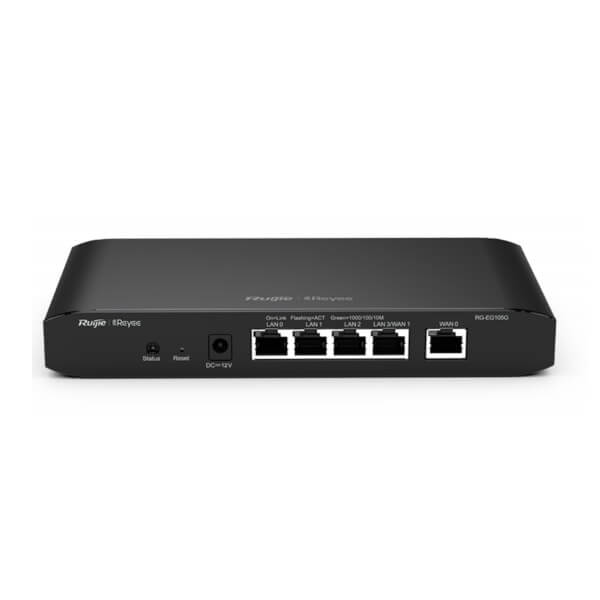

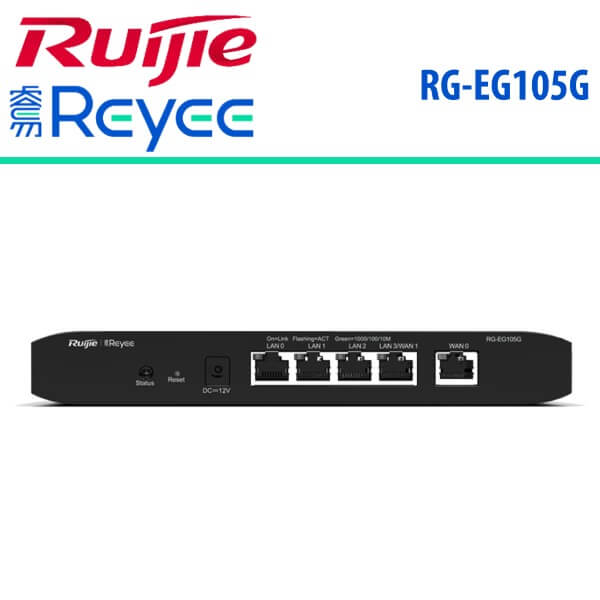

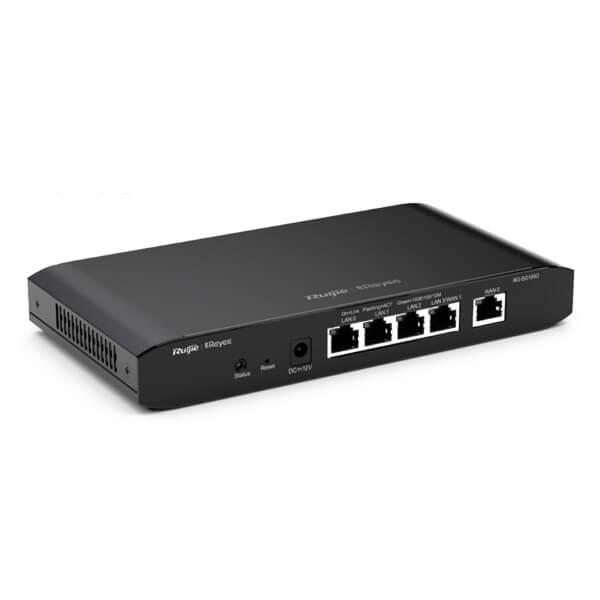

Ruijie RG-EG105G Dubai
The Ruijie RG-EG105G Dubai Router is a cloud-managed router specially designed for a variety of settings, including villas, smart homes, restaurants, small offices, and homestay hotels. The Ruijie RG-EG105G Dubai model is not only cost-effective but also compact and user-friendly. It offers a bandwidth range of 500Mbps to 1Gbps and can support up to 200 connected devices. Additionally, it allows for per-port VLAN configuration to ensure port isolation and integrates smart flow control for comprehensive network planning. It also facilitates both local and remote network diagnostics.
One of the standout features of the Ruijie RG-EG105G Dubai is its industry-leading auto-discovery and auto-networking capabilities. This innovation applies to gateways, switches, and wireless devices, enabling unified configuration, remote management, and remote fault diagnosis for the entire network through the Ruijie Cloud app.
In AC mode, the Ruijie RG-EG105G Dubai router can centrally manage up to 300 Reyee APs (Access Points) and up to 128 Reyee cloud-managed switches. For larger deployments, the RG-EG210G-P and RG-EG210G-E models can manage up to 500 Reyee APs and up to 128 Reyee cloud-managed switches.
Features
- Auto-provisioning via self-organizing network
- Lifetime free Ruijie Cloud managed
- Multiple WAN Ports
- Full Gigabit port
- AC mode: Manage Reyee APs, saving cost
- Smart flow control: Intelligently adjusted each user bandwidth according to the access bandwidth
- IPSec VPN
- Enterprise Security features
- Curved surface metal design, sheet metal stretching integrated molding
- Port Isolation for security CCTV network
- Multiple WAN Policies
- Single-cable IPTV
- Copying the Dial-up Password
- Auto-provision via Self-organizing Network (SON) in 3 Minutes Using the App
- Network Management
- Wi-Fi Control
- Multiple Management Methods
- Network Planning
- Network Diagnosis
Specifications
| Model | RG-EG105G | ||
| Basic specifications | |||
| Fixed ports | 5 10/100/1000M Base-T ports，supporting up to 2 WAN ports
（Default : 1 WAN port，4 LAN ports LAN3 can be switched to WAN1 port） |
||
| RAM | 128MB | ||
| Flash | 16MB | ||
| Maximum number of clients | Up to 100 concurrent clients | ||
| Recommended bandwidth | 600M asymmetric bandwidth (flow control disabled)
500M asymmetric bandwidth (flow control enabled) |
||
| Local power supply | Support 220V AC local power supply | ||
| Power consumption | <6W | ||
| Basic network features | |||
| Network access | PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers | ||
| Routing | Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams | ||
| Security | ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping | ||
| Other protocols | DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS | ||
| Gateway | |||
| Application recognition | Built-in self-developed application signature database to identify applications
Support free upgrades |
||
| Flow control | Support custom flow control policies, IP-based automatic bandwidth assignment | ||
| Traffic audit | Real-time traffic audit, IP traffic visualization | ||
| Behavior management | Time-based and IP policy-based access control, website filtering | ||
| VPN | IPsec VPN (8 tunnels) server and client, L2TP, PPTP | ||
| Authentication | · Marketing authentication : WiFiDog (SMS authentication and one-click authentication)
· Local authentication : password authentication, QR code authentication, voucher authentication |
||
| Wireless management | |||
| Management capacity | In AC mode, the maximum management capacity is 300
In gateway mode, the maximum management capacity is 32 |
||
| AP management | Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist | ||
| Roaming | Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track | ||
| Switch management | |||
| Management capacity | Maximum manageable cloud managed switches: 128 | ||
| Port management | Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search | ||
| Status display | Port statistics, monitoring information, cable detection, VLAN configuration, MAC list | ||
| Upgrademanagement | Per-device upgrade, batch upgrade | ||
| Value added features | |||
| Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution | ||
| Management | Eweb and Ruijie Cloud | ||
| Physical specifications | |||
| Dimensions | 206.5×108.5×28 (mm) | ||
| Weight | 0.84kg | ||
| Temperature | Operating temperature : 0 ~ 40 ℃
Storage temperature : -10 ℃ ~ 70 ℃ |
||
| Humidity | Operating humidity : 10% ~ 90% (non-condensing)
Storage humidity : 5% ~ 95% (non-condensing) |
||
