Description

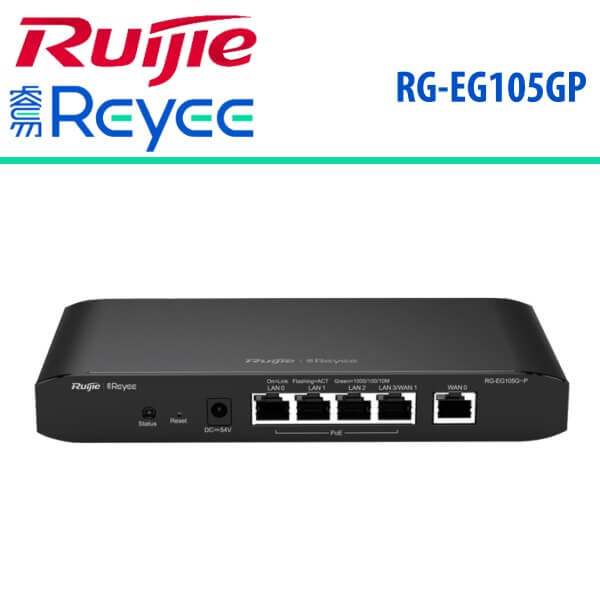

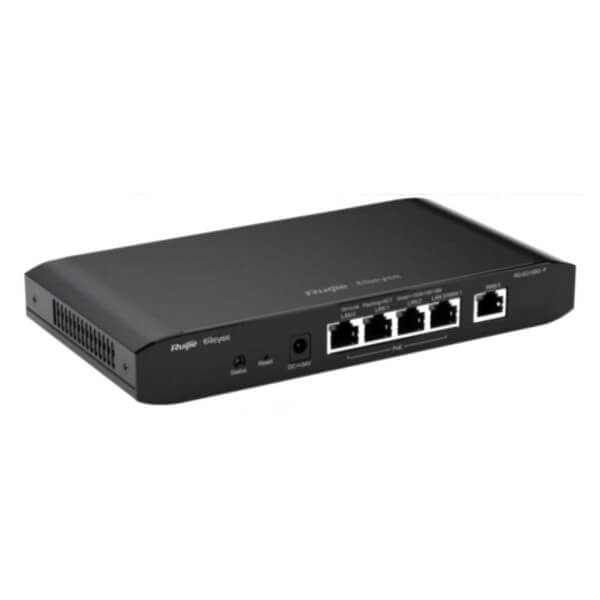

Ruijie RG-EG105GP Dubai
The Ruijie RG-EG105GP Dubai is a cloud-managed router equipped with up to x2 WAN ports, 4x 802.3af/at PoE (Power over Ethernet) ports, and a built-in network controller. It enables centralized management of Reyee access points and managed switches. This router offers unified configuration capabilities, along with advanced features like load balancing, traffic auditing, behavior management, flow control, VPN, and more.
The Ruijie RG-EG105GP Dubai supports Ruijie’s smart networking feature, which, in conjunction with Ruijie’s free cloud service, allows users to efficiently auto-provision, deploy, and manage devices remotely. You can utilize Reyee’s auto-discovery feature or simply scan the QR code using the mobile application to effortlessly add devices to new or existing projects via the cloud.
Designed for use in villas, smart homes, restaurants, small offices, and homestay hotels, the Ruijie RG-EG105GP Dubai Router combines affordability, compactness, and ease of use. Despite its small size, it provides bandwidth ranging from 500Mbps to 1Gbps and can support up to 200 connected devices. The RG-EG series offers per-port VLAN configuration to achieve port isolation and integrates smart flow control for comprehensive network planning, as well as local and remote network diagnostics.
Features
- User friendly configuration, easy to learn
- Support unbreakable and load balancing multi-WAN internet
- Easy to block unwanted applications with automatically updated library
- Customize portal page, what you see is what you get
- Secure access your internal device remote
Specifications
| Basic specifications | |||
| Fixed ports | 5 10/100/1000M Base-T ports supporting up to 2 WAN ports (Default : 1 WAN port，4 LAN ports
LAN3 can be switched to WAN1 port） |
||
| RAM | 128MB | ||
| Flash | 16MB | ||
| Maximum number of clients | Up to 100 concurrent clients | ||
| Recommended bandwidth | 500M asymmetric bandwidth (flow control disabled)
300M asymmetric bandwidth (flow control enabled) |
||
| Local power supply | Support 220V AC local power supply | ||
| Power consumption | <60W (With PoE load) | ||
| Basic network features | |||
| Network access | PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers | ||
| Routing | Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams | ||
| Security | ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping | ||
| Other protocols | DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS | ||
| Gateway | |||
| Application recognition | Built-in self-developed application signature database to identify applications
Support free upgrades |
||
| Flow control | Support custom flow control policies, IP-based automatic bandwidth assignment | ||
| Traffic audit | Real-time traffic audit, IP traffic visualization | ||
| Behavior management | Time-based and IP policy-based access control, website filtering | ||
| VPN | IPsec VPN (8 tunnels) server and client, L2TP, PPTP | ||
| Authentication | Marketing authentication : WiFiDog (SMS authentication and one-click authentication)
Local authentication : password authentication, QR code authentication, voucher authentication |
||
| Wireless management | |||
| Management capacity | In AC mode, the maximum management capacity is 300
In gateway mode, the maximum management capacity is 32 |
||
| AP management | Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist | ||
| Roaming | Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track | ||
| Switch management | |||
| Management capacity | Maximum manageable cloud managed switches : 128 | ||
| Port management | Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search | ||
| Status display | Port statistics, monitoring information, cable detection, VLAN configuration, MAC list | ||
| Upgrademanagement | Per-device upgrade, batch upgrade | ||
| Value added features | |||
| Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution | ||
| Management | Eweb and Ruijie Cloud | ||
| Physical specifications | |||
| Dimensions | 206.5×108.5×28 (mm) | ||
| Weight | 0.84kg | ||
| Temperature | Operating temperature : 0 ~ 40 ℃
Storage temperature : -10 ℃ ~ 70 ℃ |
||
| Humidity | Operating humidity : 10% ~ 90% (non-condensing)
Storage humidity : 5% ~ 95% (non-condensing) |
||
