Description

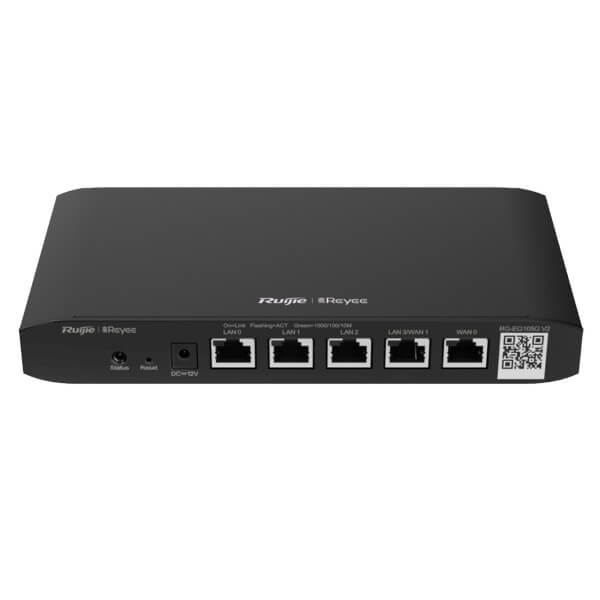

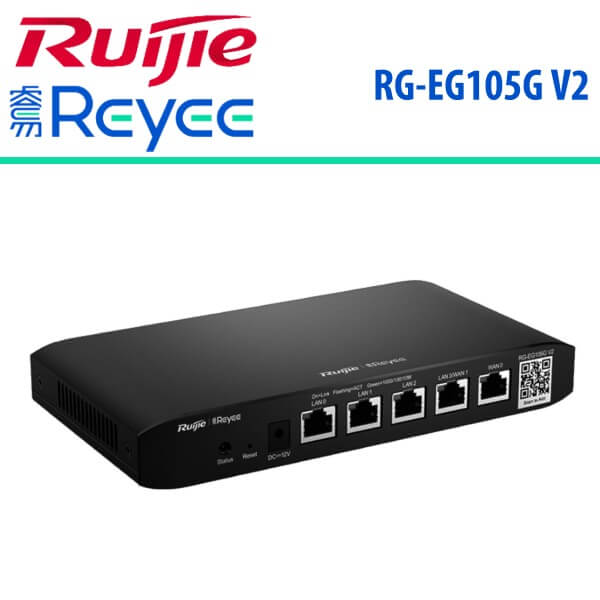

Ruijie RG-EG105GV2 Dubai
The Ruijie RG-EG105GV2 Dubai Router is a cloud-managed solution designed for various settings, including villas, smart homes, restaurants, small offices, and homestay hotels. This router is not only cost-effective but also compact and user-friendly, offering bandwidth options ranging from 500Mbps to 1Gbps and support for up to 200 connected devices. The Ruijie RG-EG105GV2 Dubai model allows per-port VLAN configuration for achieving port isolation and integrates smart flow control for comprehensive network planning, as well as local and remote network diagnostics.
The built-in network controller of the Ruijie RG-EG105GV2 Dubai router can centrally manage up to 32 Reyee APs (Access Points) and up to 128 Reyee cloud-managed switches. Moreover, it incorporates industry-leading auto-discovery and auto-networking features for gateways, switches, and wireless devices. This enables unified configuration, remote management, and remote fault diagnosis of the entire network through the Ruijie Cloud app.
In AC mode, the Ruijie RG-EG105GV2 Dubai can centrally manage up to 300 Reyee APs and up to 128 Reyee cloud-managed switches. For larger deployments, the RG-EG210G-P and RG-EG210G-E models can manage up to 500 Reyee APs and up to 128 Reyee cloud-managed switches.
Features
- Auto-provisioning via Self-Organizing Network: RG-EG series realizes the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless.
- Lifetime free Ruijie Cloud managed: Remote fault alarm, one-click operation and maintenance on Ruijie Cloud App.
- Multiple WAN Ports: Up to 2 WAN ports.
- Full Gigabit port: Meet the needs of 200M xDSL/fiber access, high-speed wired connectivity.
- AC mode: Manage Reyee APs, saving cost.
- Smart flow control: Intelligently adjusted each user bandwidth according to the access bandwidth and the number of users to ensure that each user can enjoy better network experience.
- IPSec VPN: EG Provide VPN services for headquarters and branches, up to 8 branches.
- Enterprise Security features: IP/MAC/MAC-Filtering. Independent VLAN for guest, isolated from the internal office network.
Specifications
| Model | RG-EG105G V2 |
| Basic specifications | |
| Fixed ports | 5 10/100/1000M Base-T ports, supporting up to 2 WAN ports (Default: 1 WAN port, 4 LAN ports LAN3 can be switched to WAN1 port) |
| RAM | 128MB |
| Flash | 16MB |
| Maximum number of clients | Up to 100 concurrent clients |
| Recommended bandwidth | 600M asymmetric bandwidth (flow control disabled)
500M asymmetric bandwidth (flow control enabled) |
| Local power supply | Support 220V AC local power supply |
| Power consumption | <6W |
| Basic network | |
| Network access | PPPoE dial-up
DHCP client Static IP Automatic identification of access methods Automatic avoidance of WAN port address conflicts MAC cloning Acquiring account from existing routers |
| Routing | Static routing
Policy-based routing Carrier address routing Active/standby mode Load balancing based on source address Flow-based load balancing Port-based weighted load balancing of data streams |
| Security | ACL
IP-MAC binding MAC address filtering Dynamic ARP Static ARP binding NAT NAPT Port mapping |
| Other protocols | DHCP Server
DHCP Client DHCP Option43/138 DNS Client DNS Server DNS Proxy TFTP NTP DDNS |
| Gateway | |
| Application recognition | Built-in self-developed application signature database to identify applications
Support free upgrades |
| Flow control | Support custom flow control policies
IP-based automatic bandwidth assignment |
| Traffic audit | Real-time affic audit
IP traffic visualization |
| Behavior management | Time-based and IP policy-based access control, website filtering |
| VPN | IPsec VPN (8 tunnels) server and client, L2TP, PPTP |
| Authentication | Marketing authentication : WiFiDog (SMS authentication and one-click authentication)
Local authentication : password authentication, QR code authentication, voucher authentication |
| Wireless management | |
| Management capacity | In AC mode, the maximum management capacity is 300
In gateway mode, the maximum management capacity is 32 |
| AP management | Support multi-SSID configuration
SSID hiding Channel setting Power setting AP wired port setting AP online upgrade STA quantity setting STA blacklist and whitelist |
| Roaming | Support local forwarding roaming
Layer 2 roaming Layer 3 roaming between APs Viewing of STA roaming track |
| Switch management | |
| Management capacity | Maximum manageable cloud managed switches : 128 |
| Port management | Loop protection
Port mirroring Port isolation Port configuration PoE configuration Port limit Storm control Static MAC MAC search |
| Status display | Port statistics monitoring information
Cable detection VLAN configuration MAC list |
| Upgrademanagement | Per-device upgrade
Batch upgrade |
| Value added features | |
| Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution |
| Management | Eweb and Ruijie Cloud |
| Physical | |
| Dimensions | 206.5×108.5×28 (mm) |
| Weight | 0.84kg |
| Temperature | Operating temperature : 0ºC ~ 40ºC
Storage temperature : -10ºC ~ 70ºC |
| Humidity | Operating humidity : 10% ~ 90% (non-condensing)
Storage humidity : 5% ~ 95% (non-condensing) |
