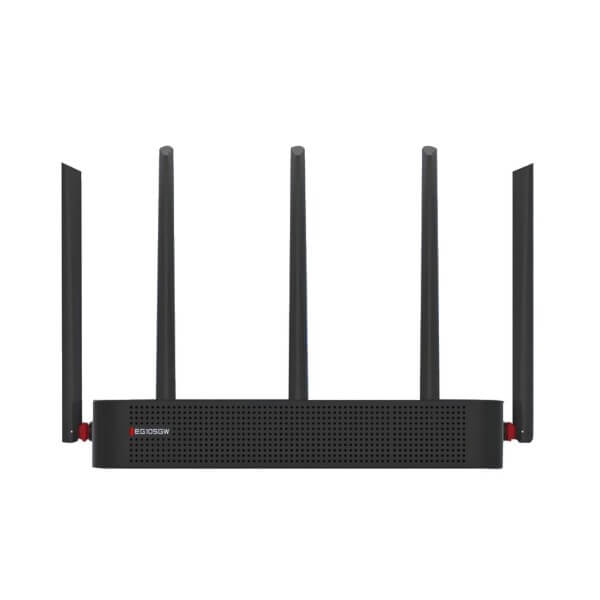

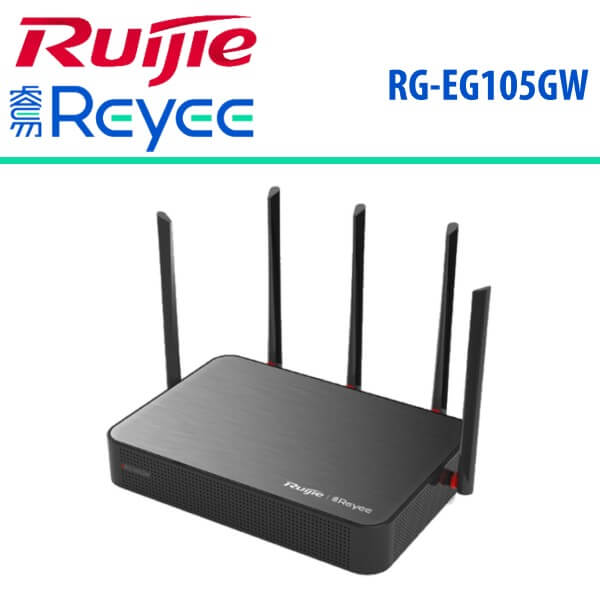

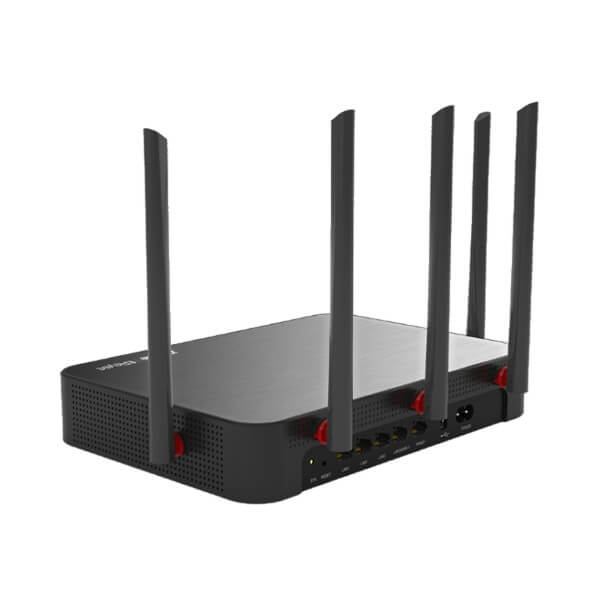

Ruijie RG-EG105GW Dubai
The Ruijie RG-EG105GW Dubai is a high-performance wireless router built for enterprise-grade use in small enterprise offices, small to medium-sized stores, and the food and beverage industry, among others. Its metal casing features a brushed aluminum top cover, not only enhancing its aesthetic appeal but also acting as a shield against external interference. This design improves signal transmission quality and enhances the device’s overall stability.
The Ruijie RG-EG105GW Dubai provides 4 LAN ports (10/100/1000Mbps), including 1 LAN/WAN port, and 1 fixed WAN port, supporting up to 2 concurrent broadband access with a recommended bandwidth of 500Mbps. The router can accommodate a maximum of 100 clients, with a recommended number of 60 wireless terminals. It supports concurrent 2.4GHz and 5GHz bands, offering speeds of up to 450Mbps at 2.4GHz and 867Mbps at 5GHz. Equipped with an 802.11ac Wave2 RF chip, the RG-EG105GW supports MU-MIMO, ensuring stable wireless speeds for multi-user access and an improved internet experience.
This router also supports policy-based routing for multiple WAN ports and offers various online authentication methods, including WeChat authentication, SMS authentication, and one-click authentication through integration with the MACC cloud platform. The Ruijie RG-EG105GW Dubai can perform per-port VLAN configuration to achieve port isolation and smart flow control for comprehensive network planning. It caters to diverse application scenarios, prioritizing network experiences for employees’ offices, cashier systems, and restaurant ordering systems, making it suitable for small enterprises, small to medium-sized shops, restaurants, and more.
The built-in network controller of the Ruijie RG-EG105GW Dubai can centrally manage up to 32 Ruijie Real-easy Series EAPs and RAPs that support smart networking features, along with up to 128 Ruijie Real-easy Series ES2xx smart switches. This facilitates industry-leading auto-discovery and auto-networking features for gateways, switches, and wireless devices. The router also supports AP mode and can seamlessly roam with other AP wireless signals in the same layer 2 networking environment, whether in routing mode or AP mode.
Features
Multiple WAN Ports
RG-EG105GW offers 4 10/100/1000M LAN ports (including 1 LAN/WAN port) and 1 fixed WAN port. Users can flexibly switch between 1 WAN port + 4 LAN ports or 2 WAN ports + 3 LAN ports.
Large Bandwidth
When flow control is disabled, the recommended downlink bandwidth is 500M, which can meet the requirements of most application scenarios. Equipped with Qualcomm chip, the device supports concurrent dual-band 2.4GHz and 5GHz. It offers up to 450Mbps at 2.4GHz, up to 867Mbps at 5GHz and up to 1317Mbps per router.
High Concurrency
The maximum number of clients supported is 100. The 802.11ac Wave2 MU-MIMO feature improves the network experience of multiple concurrent wireless users, thereby increasing the maximum wireless capacity to 100. The recommended number of clients is 64, which is sufficient for most scenarios including smart homes, stores, and offices with wired / wireless terminals and smart appliances.
Strong Signal
The ruijie rg-eg105gw Dubai adopts high-power PA and high-sensitivity LNA, greatly improving the wireless coverage. Users can get full wireless signals at any location in the room and enjoy high-quality and fast Wi-Fi for any services such as voice call, video call and web browsing.
System Hang Prevention
The built-in watchdog timer automatically restarts the device when fault occurs to guarantee user experience.
Specifications
| Model | RG-EG105GW |
| Basic specifications | |
| Fixed ports | 5 10/100/1000M Base-T ports supporting up to 2 WAN ports (Default : 1 WAN port，4 LAN ports , LAN3 can be switched to WAN1 port）
1 USB2.0 port |
| RAM | 128MB |
| Flash | 16MB |
| Antenna | 3 2.4G blade antennas (maximum gain 5dBi)
2 5.8G blade antennas (maximum gain 5dBi) |
| Protocol | Concurrent 802.11a/n/ac/ac Wave2 and 802.11b/g/n |
| Operating bands | 2.4G : 2.4G ~ 2.483GHz
5G : 5.150-5.350GHz, 5.725-5.850 GHz |
| Spatial streams | 5 spatial streams per router
3 spatial streams at 2.4GHz 2 spatial streams at 5GHz |
| Maximum clients | Supports up to 100 concurrent clients
Recommended number of wireless terminals : 60 |
| Recommended bandwidth | 500M asymmetric bandwidth (flow control disabled)
300M asymmetric bandwidth (flow control enabled) |
| Local power supply | Support 220V AC local power supply |
| Power consumption | <20W |
| Basic network features | |
| Network access | PPPoE dial-up
DHCP client Static IP Automatic identification of access methods Automatic avoidance of WAN port address conflicts MAC cloning Obtaining account passwords from existing routers |
| Routing | Static routing
Policy-based routing Carrier address routing Active/standby mode Load balancing based on source address Flow-based load balancing Port-based weighted load balancing of data streams |
| Security | ACL
IP-MAC binding MAC address filtering Dynamic ARP Static ARP binding NAT NAPT Port mapping |
| Other protocols | DHCP Server
DHCP Client DHCP Option43 / 138 DNS Client DNS Server DNS Proxy TFTP NTP DDNS |
| Gateway | |
| Flow control | Support custom flow control policies
IP-based automatic bandwidth assignment |
| Traffic audit | Real-time traffic audit, IP traffic visualization |
| VPN | IPsec VPN (8 tunnels) server and client |
| Wireless management | |
| Management capacity | In gateway mode, the maximum management capacity is 32 |
| AP management | Support multi-SSID configuration
SSID hiding Channel setting Power setting AP wired port setting AP online upgrade STA quantity setting STA blacklist and whitelist |
| Roaming | Support local forwarding roaming
Layer 2 roaming Layer 3 roaming between APs viewing of STA roaming track |
| Switch management | |
| Management capacity | Maximum manageable cloud managed switches : 128 |
| Port management | Loop protection
Port mirroring Port isolation Port configuration PoE configuration Port limit Storm control Static MAC MAC search |
| Status display | Port statistics monitoring information
Cable detection VLAN configuration MAC list |
| Device management | Per-device upgrade
Batch upgrade |
| Special features | |
| Featured solutions | Single-cable IPTV solution
Port service VLAN and network segment isolation solution Smart fault diagnosis solution Intranet penetration solution Auto-networking solution Wired relay solution (AP mode) |
| Flexible management | Eweb and Ruijie Cloud |
| Physical specifications | |
| Dimensions | 250×170×42 (mm) |
| Weight | 1.2kg |
| Temperature | Operating temperature : -10°C～40°C |
| Storage temperature : -40°C～70°C | |
| Humidity | Operating humidity : 5％～95％(non-condensing) |
| Storage humidity : 5％～95％(non-condensing) | |
