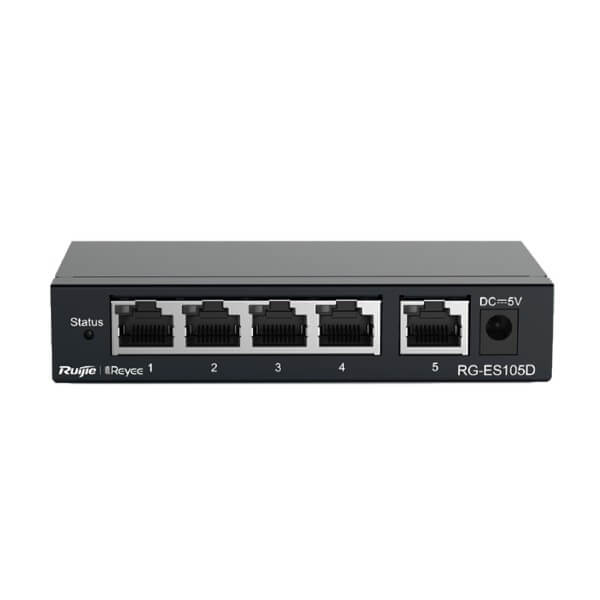

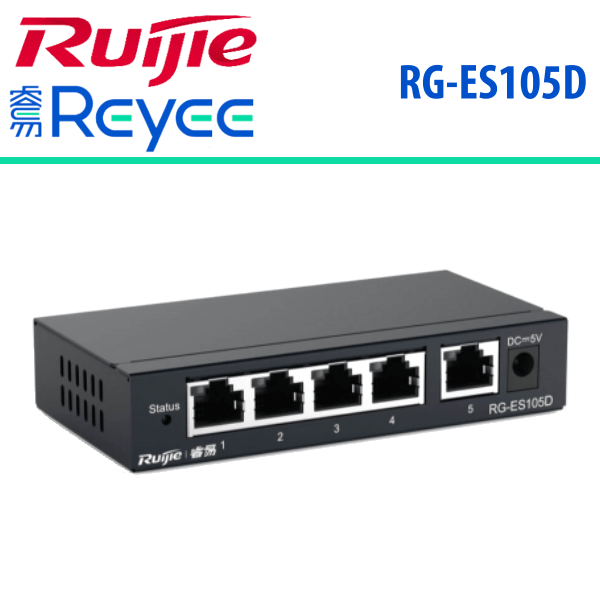

Ruijie RG-ES105D Dubai
The Ruijie RG-ES105D Dubai is an affordable unmanaged access switch featuring a durable metal casing, designed with small and medium-sized enterprises (SMEs) in mind. The Ruijie RG-ES105D supports plug-and-play functionality, eliminating the need for any complex configurations. This makes it suitable for a wide range of scenarios, including wired, wireless, and surveillance networks.
The Ruijie RG-ES105D is specifically crafted to address the needs of small and medium-sized businesses seeking a hassle-free, Plug-n-Play networking solution. It is part of Ruijie’s lineup of SME network products and comprises three switch models. These include an 8-port Gigabit PoE+ model and two 24-port Gigabit PoE+ switch models.
The Ruijie RG-ES105D can be deployed straight out of the box with minimal setup requirements. Additionally, users can easily manage flow control and port isolation functions by simply adjusting the panel knob. Furthermore, the switch provides a convenient feature where the PoE budget status is displayed directly on the port indicators, making troubleshooting and maintenance tasks much more accessible.
Features
Plug and Play
The ruijie rg-es105d Dubai supports self-adaptive ports and plug-and-play feature with zero configuration.
Metal Casing
The entire casing of ruijie rg-es105d Dubai is made of metal which provides better heat dissipation.
Easy to Install
The compact size allows easy installation in the ELV box at home or the waterproof surveillance junction box, as it only takes up little space.
Enterprise-grade Quality
The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission.
Specifications
| Ports | 5 10/100Mbps RJ45 ports |
| Maximum port forwarding rate | 100Mbps |
| Auto-MDI/MDIX | Support |
| MAC address | 1K |
| Backplane bandwidth | 1Gbps |
| Maximum packet forwarding rate | 744Kpps |
| LED indicator | Link/Act status LED indicator for each port,
Power indicator |
| Dimensions | 119mm*62mm*24mm |
| Power input / output | External 5VDC 1.0A |
| Maximum power consumption | ≤5W |
| Temperature | Operating temperature : 0 ℃ ~ 40 ℃
Storage temperature : -40 ℃ ~ 70 ℃ |
| Humidity | Operating humidity : 10% ~ 90% non-condensing
Storage humidity : 5% ~ 90% non-condensing |
