Description

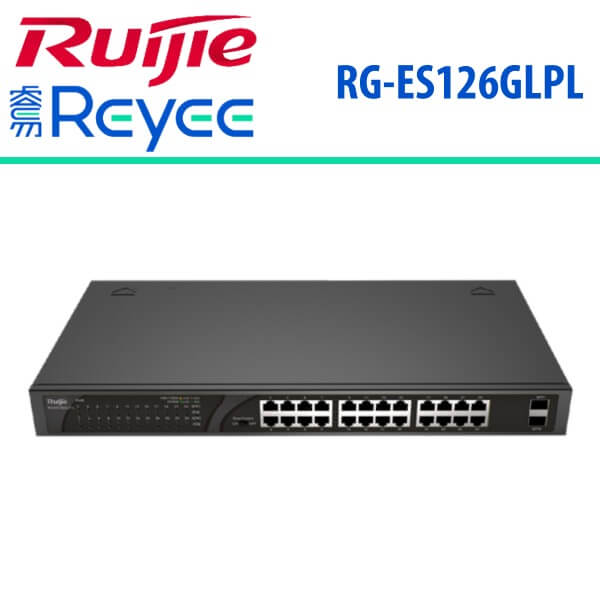

Ruijie RG-ES126GLPL Dubai
The Ruijie RG-ES126GLPL Dubai represents the next generation of unmanaged switches, specifically designed for use in scenarios such as CCTV, ELV, and small office setups. The Ruijie RG-ES126GLPL Dubai Switch is an ideal choice for small and medium-sized businesses seeking a straightforward Plug-n-Play solution. It’s part of Ruijie’s SME network product lineup, which includes three switches, featuring an 8-port Gigabit PoE+ model and two 24-port Gigabit PoE+ switch models.
These switches are ready to use right out of the box, with seamless plug-and-play implementation. Additionally, users can easily activate flow control and port isolation functions by simply turning a knob on the control panel. Moreover, the PoE budget status can be directly viewed on the port indicators, which proves invaluable for troubleshooting purposes.
Features
- 24-port and 8-port Gigabit PoE for CCTV/ELV and other SMB scenarios
- Simple one-click button management beyond Plug-n-Play
- Budget options 370W and 180W PoE on 24-port models
- All ports 8/24 support PoE/PoE+, feel free to choose any port
Easy connection
Ruijie RG-ES126GLPL Dubai boasts of a Full Gigabit Ethernet Selection including; 10 / 100 / 1000Mbps on any port, line rate forwarding. Also, Auto MDI/MDIX ensures all RJ45 ports support automatic MDI/MDIX, no cable restrictions when linking to clients or other switches.
Power over Ethernet (PoE / PoE+)
Ruijie RG-ES126GLPL NetworkSwitch Dubai provides up to 30Watt per port, enabling support for the latest IEEE802.3at (PoE+) capable devices such as high performance access points and IP cameras, as well as any IEEE802.3af (PoE) – compatible powered devices. Power on all ports including; Ports 1~8 of RG-ES126GLPL are all PoE/PoE+ capable. Also, PoE budget selection allow for wide choice of PoE power budgets from 185W to 370W on 24-port models.
Easy Control
The One-click flow control. With a flip button on the control panel, Ruijie RG-ES126GLPL NetworkSwitch Dubai flow control (IEEE802.3X) can be easily enabled to smooth traffic and avoid packet drops due to sudden traffic spikes. Also, one-click port isolation capability, With the switch on the board, users can also set up an isolating port between each port, helping to ensure the safety of CCTV cameras. Moreover, PoE Power Indicator provide status for alerts on the LED indicators of each port
Specifications
| Model | RG-ES126G-LP-L |
| Ports | 2 x 1000M SFP
24 x PoE/PoE+ 10/100/1000BASE-T |
| Auto MDI/MDI-X | Support |
| PoE power budget | 180W |
| Power supply type | Internal |
| Input voltage | AC 100~240V, 50/60Hz |
| Cooling | Fan |
| Switching capacity | 52Gbps |
| Forwarding rate | 39Mpps |
| Flow control (IEEE802.3X) | Yes |
| PoE budget indicators | Yes |
| Dimensions (WxDxH) | 440 x 205 x 43.6 mm |
| Weight | 4.2kg |
| Surge protection | 4KV |
| Operating temperature | 0°C ~ 40°C |
| Storage temperature | -40°C ~ 70°C |
| Operating humidity | 5%~90% RH |
| Storage humidity | 5%~95% RH |
