Description

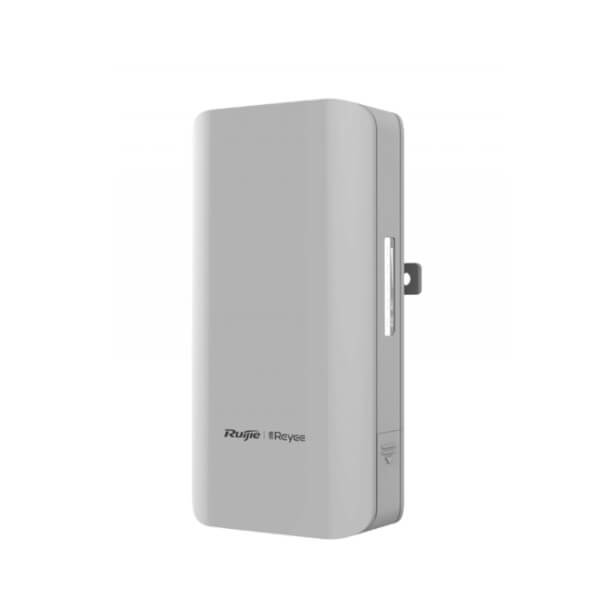

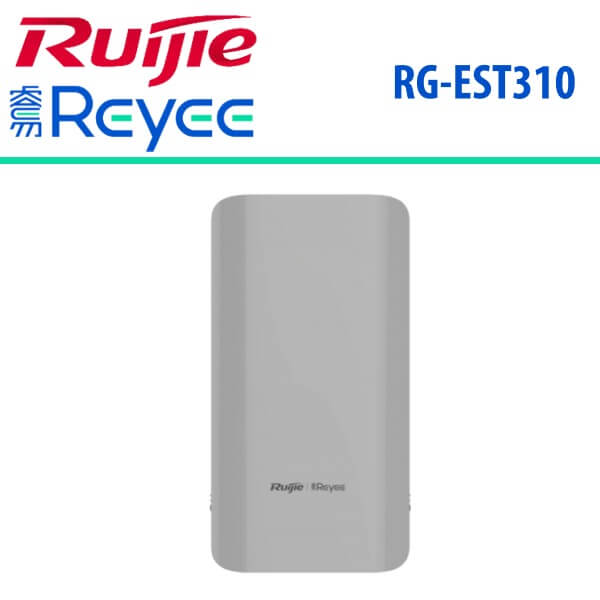

Ruijie RG-EST310 Dubai

The Ruijie RG-EST310 Dubai is equipped with an 802.11ac wireless bridge designed for video surveillance backhaul and remote wireless transmission applications. This versatile solution is ideal for use in scenarios like elevators, tower cranes, factories, campuses, and construction sites. Operating on the 5GHz band, the RG-EST310 supports two spatial streams (utilizing 2×2 MIMO technology) and delivers impressive throughput of up to 867Mbps. This capacity ensures it can fully meet the bandwidth requirements of various services.

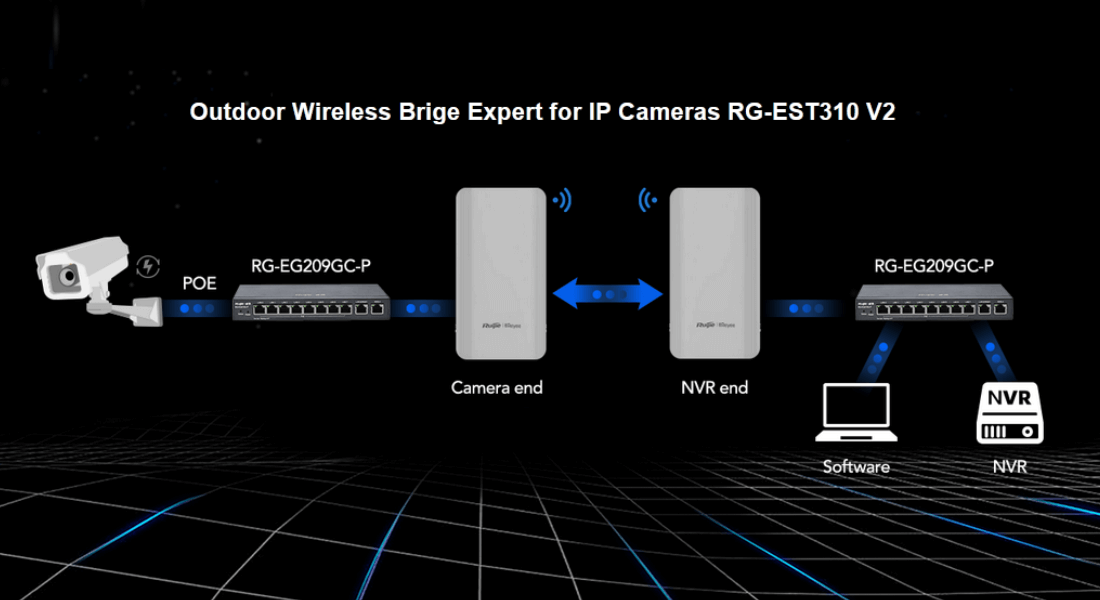

The Ruijie RG-EST310 Dubai comprises two devices: one for the recorder-end and another for the camera-end. They come pre-paired and can be deployed without the need for any additional configurations. When used for video surveillance backhaul, it is recommended to connect a switch or hard disk recorder to the recorder-end and a network camera to the camera-end.

Managing the Ruijie RG-EST310 Dubai is made simple through a mobile app, allowing users to view the network topology and modify configurations. This approach revolutionizes traditional contact-based bridge configuration methods, eliminating the need to work at elevated heights and significantly reducing the complexity of bridge maintenance.

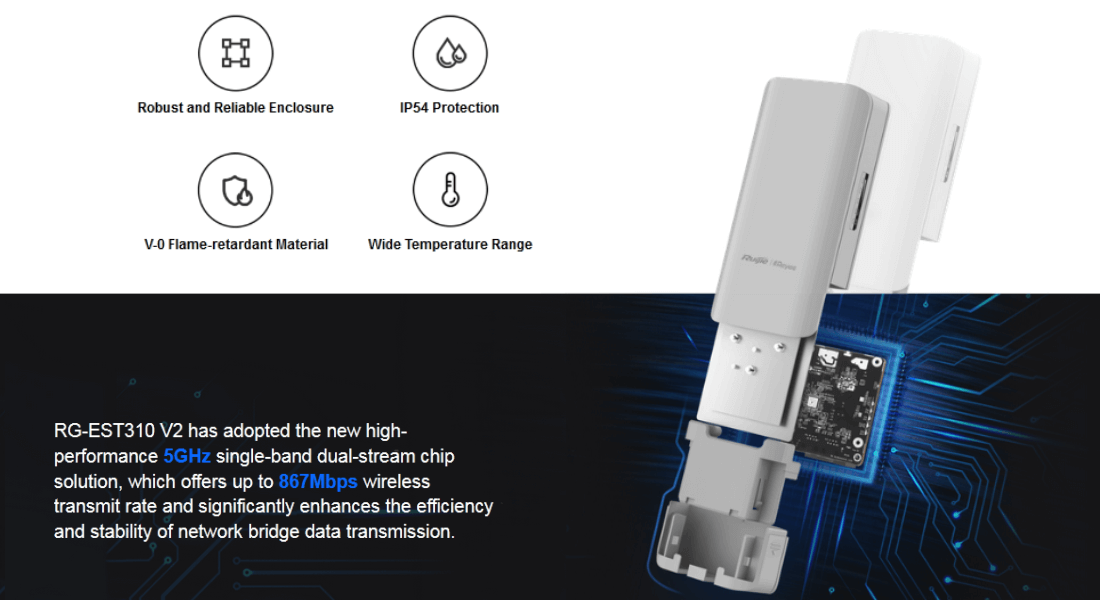

The device’s design features four-sided curved edges, optimizing its compact size and offering an elegant exterior. Straps are provided for easy equipment installation. The device’s casing is engineered for improved dustproof and waterproof performance, providing IP65 protection. The materials used are weather-resistant, ensuring the casing remains durable even under harsh conditions such as sun exposure, wind, and resistance to acid and alkali corrosion.

Furthermore, the device is constructed with industrial-grade materials, guaranteeing reliability and durability in diverse and complex environments, including hot and humid weather, dry and cold conditions, sun exposure, and rain. The Ruijie RG-EST310 Dubai also comes with built-in wireless product management software, allowing users to access all wireless bridge information and network topology by logging into any bridge device.

Features

Auto-provisioning via self-network: RG-EG series realizes the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless
Lifetime free Ruijie Cloud managed: Remote fault alarm, one-click operation and maintenance on Ruijie Cloud App
High Reliability: provide dustproof and waterproof IP54 protection for outdoor environments
Zero Configuration: RG-EST310 V2 consists 2 devices paired by default and can be used without requiring any configurations

Easy Installation

The ruijie rg-est310 Dubai is easy to install with straps provided for easy equipment installation and improve implementation efficiency.

Zero Configuration

RG-EST310 consists 2 devices, including the recorder-end and camera-end device. They are paired by default and can be used without requiring any configurations.

Convenient Maintenance

ruijie rg-est310 Dubai can automatically adjust the channels and optimize the power based on the operating environment, thereby reducing the maintenance workload caused by environmental changes. The software and hardware self-healing design can effectively prevent system hang and unexpected connection loss. ruijie rg-est310 Dubai supports app management, which revolutionizes the conventional contact-type bridge configuration mode. Bridge maintenance no longer requires working at heights, reducing the difficulty of maintaining bridges to an unprecedented level. The device is built-in with wireless product management software WSP-EST310. Users can view all bridge information and the topology by logging in to any bridge device.

IP65 Rating

ruijie rg-est310 Dubai can provide dustproof and waterproof IP65 protection for outdoor environments and operate in a wide temperature range from –30°C to 50°C. The high-quality weather-resistant materials enable ruijie rg-est310 Dubai to maintain excellent structural strength without embrittlement, yellowing, or deformation for long-term outdoor operation.

High Data Transmission Performance

The ruijie rg-est310 Dubai boasts high data transmission bandwidth, low latency, and load balancing, delivering excellent performance even when it is connected to multiple surveillance channels concurrently

Specifications

Hardware specifications
RAM / Flash	64MB / 8MB
Radio	5GHz, dual-stream single-band 2×2
Operating Band	802.11a/n/ac: 5.150～5 .350GHz, 5.470~5.725GHz , 5.725～5 .850GHz (country speciﬁc)
Antenna	Built-in directional antennas, 10dBi
Polarization	Horizontal: 60°, Vertical: 30°
Spatial Streams	2
Maximum Throughput	Up to 867Mbps at 5GHz
Max. Transmit Power	≤400mW (26dBm)
Dimensions	147mm(D)×76mm(W)×37mm(H) (Dimensions per device) (Same size for the transmitter and receiver, H : height of the device excluding the mounting kits)
Weight	0.35kg

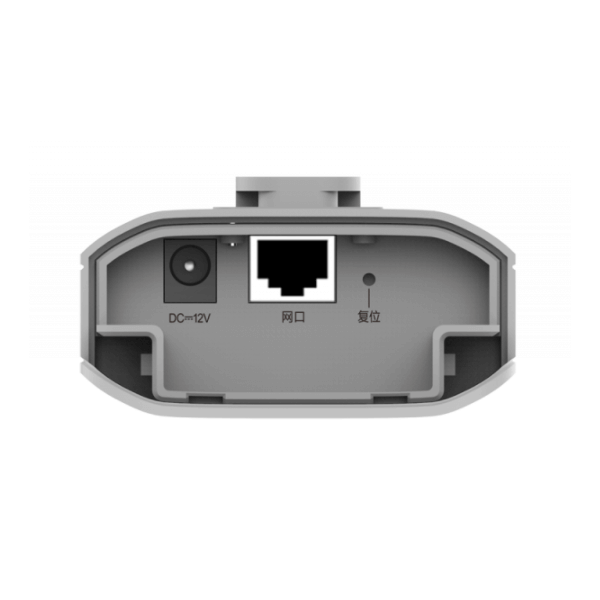

Ports	1 10/100Base-T Ethernet port, supports 24VDC non-standard PoE 1 DC port, supports 12VDC power supply
Hardware Button	1 reset button
Status Indicators	System indicator : 1 Port indicator : 1 Bridge signal strength indicators : 3
Power Supply	Support 12VDC power supply and 24VDC non-standard PoE
Power Consumption	≤7W
Environment	Operating temperature : -30°C ~ 55°C (-22°F ~ 131°F) Storage temperature : -40°C~70°C (-40°F ~ 158°F) Operating humidity : 5%~95% (noncondensing) Storage humidity : 5%~95% (noncondensing)

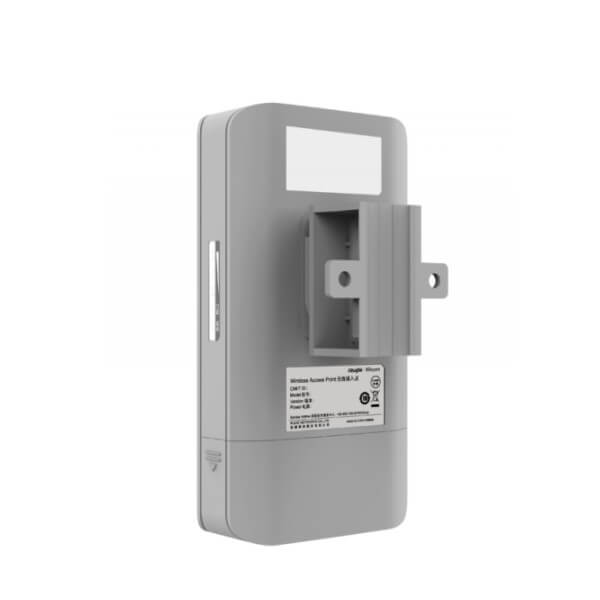

Installation	Wall-mounted/ Pole-mounted (straps provided)
IP Rating	IP54
Lightning Protection	4KV
Radio Standard	SRRC certification
Software Features
Automatic Bridging	Support The recorder-end and camera-end are automatically paired for bridging by default
Device Configuration and Management	Support App/Web configuration
QR Code Login	Users can log in to the device configuration interface by scanning the QR code of the device using the app
Self-healing	Automatic restart upon equipment failure
Automatic Channel Adjustment	Automatically adjust the channel upon power-on
