Description
Ruijie RG-EST350 Dubai
The Ruijie RG-EST350 Dubai represents an 802.11ac wireless bridge tailored for video surveillance backhaul and remote wireless transmission across diverse settings. These include tower cranes, factories, scenic spots, campuses, planting bases, aquafarm breeding bases, and construction sites. Operating within the 5 GHz spectrum, the Ruijie RG-EST350 Dubai employs two spatial streams (utilizing 2×2 MIMO technology) and delivers robust throughput of up to 867 Mbps. This capacity ensures it can fully satisfy the data link bandwidth requirements of various services.
The Ruijie RG-EST350 Dubai comprises two devices: one for the recorder-end and the other for the camera-end. These devices come pre-paired and are ready for deployment without any need for additional configurations. In video surveillance backhaul applications, it is advisable to connect a switch or hard disk recorder to the recorder-end and link a network camera to the camera-end.
The management of the Ruijie RG-EST350 Dubai is facilitated through a mobile app, allowing users to not only view the network topology but also make necessary configuration adjustments. This approach has completely transformed traditional contact-type bridge configuration methods, eliminating the need for working at heights and significantly reducing the complexity of bridge maintenance.
Features

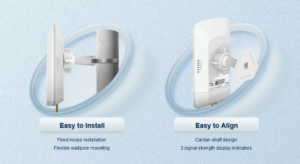

Easy Installation at Zero Cost
The ruijie rg-est350 Dubai consists of 2 devices, including the recorder-end and camera-end devices. They are paired by default and can be used without requiring any configurations. Also available is hose clamps are provided for easy equipment installation to improve implementation efficiency.
Convenient Maintenance
RG-EST350 can automatically adjust the channels and optimize the power based on the operating environment, thereby reducing the maintenance workload caused by environmental changes. The software and hardware self-healing design can effectively prevent system hang and unexpected connection loss. RG-EST350 supports Ruijie Cloud and Reyee App management, which revolutionizes the conventional contact-type bridge configuration mode. Bridge maintenance no longer requires working at heights, reducing the difficulty of maintaining bridges to an unprecedented level. The device is built-in with wireless product management software. Thus, users can view all bridge information and the topology by logging in to any bridge device.
Excellent Performance
The ruijie rg-est350 Dubai boasts of high data transmission bandwidth, low latency, and load balancing, delivering excellent performance even when it is connected to multiple surveillance channels concurrently.
High Reliability
RG-EST350 can provide dustproof and waterproof IP65 protection for outdoor environments and operate in a wide temperature range from –30°C to 65°C. The high-quality weather-resistant materials enable RG-EST350 to maintain excellent structural strength without embrittlement, yellowing, or deformation for long-term outdoor operation.
Specifications
| Hardware Specifications | |
| Chip | QCA9563+QCA9886 |
| RAM/Flash | 512MB/8MB |
| Radio | Dual-stream single-band 2×2 |
| Operating Band | 802.11a/n/ac: 5.150～5.350GHz, 5.470~5.725GHz , 5.725～5.850GHz (country specific) |
| Antenna | Directional antennas, horizontal: 31°, vertical: 14°, gain: 15 dBi |
| Bridging Distance | 5 km (recommended) |
| Spatial Streams | Two streams |
| Maximum Throughput | Up to 867 Mbps at 5 GHz |
| Transmit Power | ≤100 Mw(20 dBm) (adjustable) |
| Dimensions | 230 mm(D)×132 mm(W)×48 mm(H) (Dimensions per device) (Same size for the recorder-end and camera-end, H: height of the device edge excluding the mounting kits) |
| Weight | 0.6 kg |
| Ports | Two 10/100/1000Base-T Ethernet ports, supports 24 VDC non-standard PoE power supply
One DC port, supports 12 VDC power supply |
| Hardware Button | 1 reset button |
| Status Indicators | System indicator : 1
Port indicator : 2 Bridge signal strength indicators : 3 |

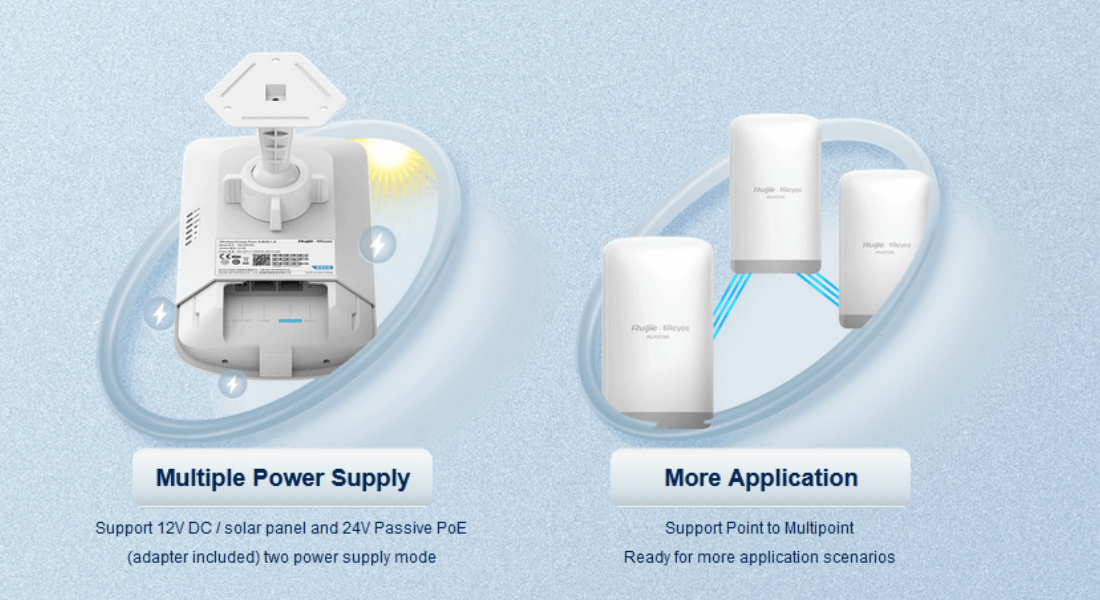

| Power Supply | Support 12 VDC power supply and 24 VDC non-standard PoE power supply |
| Power Consumption | <9W |
| Environment | Operating temperature : -30°C to 65°C
Storage temperature : -40°C to 85°C Operating humidity : 5% to 95% (non-condensing) Storage humidity : 5% to 95% (non-condensing) |
| Radio Standard | EN300 328, EN301 893 |
| Software Features | |
| Automatic Bridging | Support The recorder-end and camera-end are automatically paired for bridging by default. |
| One-to-many Bridging | One-to-three bridging is recommended for the wireless coverage scope at an angle of 31° to the horizontal. |
| Device Configuration and Management | Support App/Web configuration |
| QR Code Login | Users can log in to the device configuration interface by scanning the QR code of the device using the app. |
| Self-healing | Automatic restart upon equipment failure |
| Automatic Channel Adjustment | Automatically adjust |
| Installation | Wall-mounted/ Pole-mounted (hose clamp is provided) |
| IP Rating | IP65 |
| Lightning Protection | 4KV |
