Description

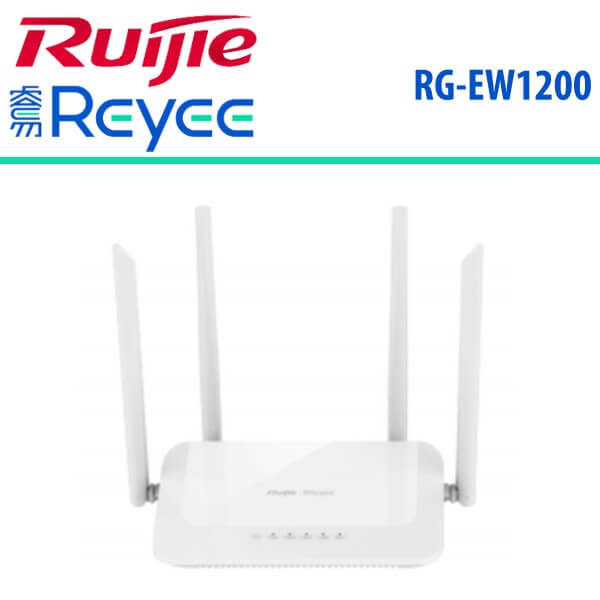

Ruijie RG-EW1200 Dubai

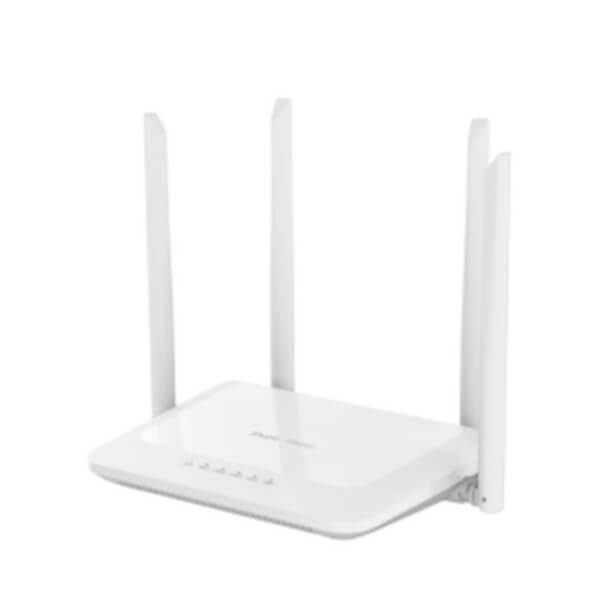

The Ruijie RG-EW1200 Dubai is a dual-band wireless consumer router tailored specifically for apartments, self-built homes, small retail stores, and similar scenarios. This device operates on dual frequencies, minimizing wireless interference. It also incorporates Reyee Mesh Technology, eliminating the complexities of configuring multiple networks and adding extra devices. The user-friendly app includes features like Parental Control and Game Acceleration.
The Ruijie RG-EW1200 Dubai router offers 1 10/100Mbps WAN port and 3 10/100Mbps LAN ports, with a maximum access bandwidth of 100Mbps. It can support up to 48 clients, including 24 wireless devices. The router operates on both 2.4GHz and 5GHz bands simultaneously, delivering maximum wireless rates of 300Mbps at 2.4GHz, 867Mbps at 5GHz, and a total of 1167Mbps per router. This reduces wireless interference and latency, enhancing terminal internet performance and user experiences.
In addition to Reyee Mesh Technology, the router supports network deployment with itself or Ruijie RG-EW1200 Dubai for unified management and configuration. Regardless of the networking method, it uses an RF adjustment algorithm, similar to what’s applied in millions of Ruijie enterprise-grade APs, ensuring seamless roaming and swift switching between 2.4GHz and 5GHz. This allows users to move within the Wi-Fi coverage area without experiencing service interruptions.
The router also allows collaborative management authorization, whether temporary or permanent. You can perform local or remote management and configuration through various methods such as the local web interface or the Ruijie Cloud app. This provides fault diagnosis and maintenance capabilities, enabling multi-end management via mobile phones and PCs from anywhere, ensuring worry-free maintenance.
Features
- 1167M Dual-Band Integration Offering Low Interference and Fast Internet Speed
- MU-MIMO Offers Higher Transmission Efficiency
- Professional RF Design Multiplies the Coverage Distance
- Exclusive Reyee Mesh Technology Enables Zero-configuration Networking for Multiple Devices
- Reyee Mesh Technology Offers Seamless Roaming without Disconnection
- Parental Control Allow Parents to Monitor Their Child’s Internet Use
- Temporary Authorization for Remote Management
- Professional Heat Dissipation Design for Long-Term Stable Operation
- Enterprise-grade product design supporting connection with enterprise-grade equipment
- Wi-Fi Control
- Multiple Management Methods
Specifications
| Wireless specifications | 2.4GHz 2*2 : maximum rate 300Mbps;
5GHz 2*2 : maximum rate 867Mbps |
| Antenna : External 4*5dBi non-removable omnidirectional antennas | |
| Support 802.11a/b/g/n/ac/ac Wave2, MU-MIMO | |
| Frequency band : Independent 2.4GHz and 5GHz modules, supporting dual frequency integration | |
| Support beamforming | |
| Wi-Fi channel : | |
| 2.4GHz Channel ： 1,2,3,4,5,6,7,8,9,10,11,12,13 | |
| 5GHz Channel ： 36,40,44,48,52,56,60,64,149,153,157,161,165 | |
| Ports | 1 10/100M WAN port（Auto MDI/MDIX） |
| 3 10/100M LAN ports（Auto MDI/MDIX） | |
| 1 system LED indicator, 3 network port LED indicators, 1 Wi-Fi indicator | |
| 1 device pairing/factory reset button | |
| 1 power input interface | |
| Physical specifications | Dimensions ：182x121x32mm (W×D×H, excluding antennas) |
| Weight ：0.4kg（entire equipment including packaging） | |
| Power supply | Power specification : DC12V 0.6A |
| Maximum power : <7W | |
| Certification | CCC，SRRC |
| Operating environment | Operating temperature : -10-45℃ |
| Storage temperature : -40-70℃ | |
| Operating humidity : 5%-95%RH (non-condensing) | |
| Storage humidity : 5%-95%RH (non-condensing) | |
| Main features | Routing mode : PPPoE / DHCP / static IP; relay mode: wired relay / wireless relay |
| Obtain PPPoE account from the old router | |
| Wi-Fi dual-band separation/ integration | |
| Guest Wi-Fi; smart home Wi-Fi; wireless network isolation | |
| Static DHCP address | |
| Virtual server : port mapping, DMZ, etc. | |
| DDNS : Oray | |
| UPnP | |
| Network security | Wireless security : WPA-PSK/WPA2-PSK encryption |
| ARP protection : IP/MAC binding | |
| SSID hiding | |
| Preventing rogue devices (Blacklist/whitelist) | |
| Internet access control | |
| Advanced features | Reyee Mesh : Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices |
| Wi-Fi optimization : Wi-Fi roaming, 5G priority, acceleration mode, channel adjustment, power adjustment, roaming sensitivity adjustment | |
| Bandwidth management : hardware NAT, intelligent bandwidth allocation | |
| Auto network inspection, fault diagnosis | |
| Software upgrade : Automatic & manual cloud software upgrade | |
| Management mode | Local web page |
| Ruijie Cloud app : iOS version, Android version |
