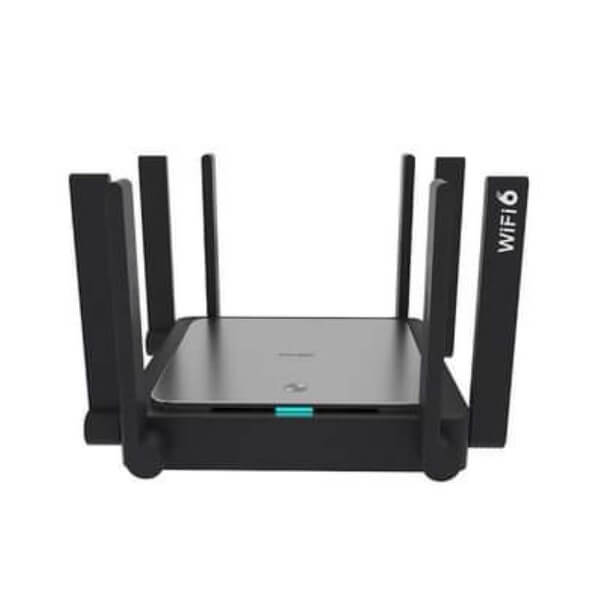

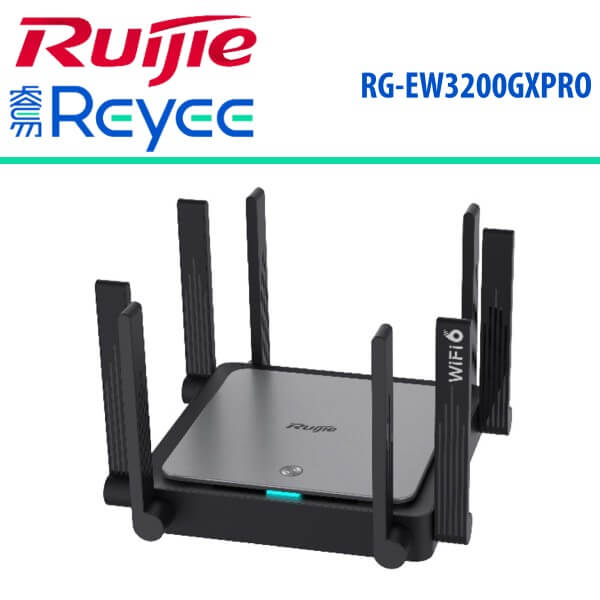

Ruijie RG-EW3200GXPRO Dubai
The Ruijie RG-EW3200GXPRO Dubai stands as a Gigabit dual-band Wi-Fi 6 mesh router, purpose-built for large flat spaces, villas, small shops, SOHO environments, and similar scenarios. It’s meticulously designed to fulfill the demands of high-quality next-generation Wi-Fi services. This router features four independent power amplifiers, significantly enhancing signal strength, thereby extending coverage distances twofold compared to previous router models.
The Ruijie RG-EW3200GXPRO Dubai offers one 10/100/1000Mbps WAN port and four 10/100/1000Mbps LAN ports, supporting a maximum access bandwidth of 1000Mbps. It operates on the new-generation Wi-Fi 6 standard on both the 2.4 GHz and 5 GHz bands, achieving impressive wireless rates of 800Mbps at 2.4 GHz, 2400Mbps at 5 GHz, and a concurrent rate of 3200Mbps. This router can accommodate up to 48 wireless terminals, marking a 50% increase compared to Wi-Fi 5 routers.
Incorporating Ruijie Reyee Mesh technology, the router enables rapid connections between multiple routers without the need for cables or complex configurations. This allows Wi-Fi signals to seamlessly blanket large flat floors, complex units, duplexes, and villas. Additionally, it supports hybrid mesh networking in collaboration with the entire EW Series home routers family. Leveraging the RF adjustment algorithm employed in millions of Ruijie enterprise-grade access points (APs), the router ensures uninterrupted service during seamless roaming within the Wi-Fi coverage area.
The Ruijie RG-EW3200GXPRO Dubai offers support for various local and remote management platforms, including Web and the Ruijie Cloud App. It also provides numerous home-care-based functions, including Parental Control Mode, Health Mode, Xpress Mode, and features designed exclusively for the Smart Life Kit System, catering to the diverse needs of household scenarios.
Specification
| Wireless Parameters | 2.4 GHz, 4×4, maximum rate of 800Mbps
5 GHz, 4×4, maximum rate of 2400Mbps |
| 8 external non-detachable omnidirectional antennas | |
| 802.11a/b/g/n/ac/ax and DL/UL MU-MIMO | |
| Independent 2.4 GHz and 5 GHz modules and dual-band mode | |
| Wi-Fi channel:
2.4GHz : 2.4G~2.4835GHz 5GHz ：5.150~5.250GHz，5.250~5.350H，5.470~5.725GH，5.725~5.850GHz |
|
| Beamforming, OFDMA, and BSS color technologies | |
| Ports | One 10/100/1000M WAN port (Auto MDI/MDIX) |
| Four 10/100/1000M LAN ports (Auto MDI/MDIX) | |
| Buttons | One Reyee Mesh button (front) |
| One system reset button (rear) | |
| One power On/OFF button | |
| Indicator | One Reyee Mesh LED indicator |
| One system LED indicator | |
| Physical | Dimensions (W × D × H): 190 mm × 190 mm × 41 mm (antennas not included) |
| Weight: 1.3 kg (packages not included) | |
| Power Supply | Power specifications: DC 12 V, 2A |
| Maximum power: < 24 W | |
| Certification | CE |
| Operating Environment | Operating temperature: –10℃ to +45℃
Storage temperature: –40℃ to +70℃ Operating humidity: 5% to 95% (non-condensing) Storage humidity: 5% to 95% (non-condensing) |
Software Specifications
| Main features | PPPoE, DHCP, static IP address for network connection
Acquisition of PPPoE accounts from old routers Dual-band mode Priority to 5G Wireless Transmission Power adjustment Automatic channel adjustment Guest Wi-Fi Rate limiting for terminal IP addresses Static DHCP address Virtual server DDNS DMZ UPnP |
| Network security | WPA-PSK/WPA2-PSK encryption
SSID hiding Wi-Fi squatter prevention (Blacklist) Network access control IP & MAC Binding Firewall |
| Advanced features | Reyee Mesh : Supported by EW Series Routers. Enables Mix & Match, Self-Healing, One-click mesh, etc;
Wireless roaming; Hardware NAT; One-click network optimization; Issue diagnosis; Remote maintenance on the cloud; Auto and manual software upgrade on the cloud; Silent upgrade of cloud software; Parent Control (base on time limit、MAC limit) |
| Management modes | Local web pages (support PC and mobile terminal)
Ruijie Cloud App: iOS edition and Android edition |
