Description

Ruijie RG-RAP1200F Dubai

The Ruijie RG-RAP1200F Dubai is an advanced dual-band FE wall plate access point designed for high-performance wireless connectivity. It supports 802.3af/at Power over Ethernet (PoE), offering a front-facing LAN port for easy expansion of IPTV, IP phones, and other devices. This access point is fully compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocols, enabling support for MU-MIMO dual-stream technology and featuring built-in omnidirectional antennas.

Operating simultaneously on both 2.4GHz and 5GHz frequencies, it delivers rapid wireless access speeds of 400Mbps at 2.4GHz, 867Mbps at 5GHz, and a total of up to 1267Mbps per access point. Its compact 86mm wall plate design allows for quick installation directly into a standard 86mm wall junction box, making it an ideal choice for various deployment scenarios, including offices, commercial industries, hotels, and service environments.

One standout feature of this access point is its support for Ruijie’s self-organizing network capabilities, which enable automatic discovery, networking, and configuration of routers, switches, and wireless access points without the need for external controllers or internet access. Users can conveniently utilize the Ruijie Cloud app to streamline device deployment, configuration, remote management, and network operation and maintenance. This simplifies the wireless network construction process, significantly reducing equipment costs, labor expenses, and time investments.

Features

• 11ac Wave2 technology
• Auto-provisioning via Self-Organizing Network: Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access;

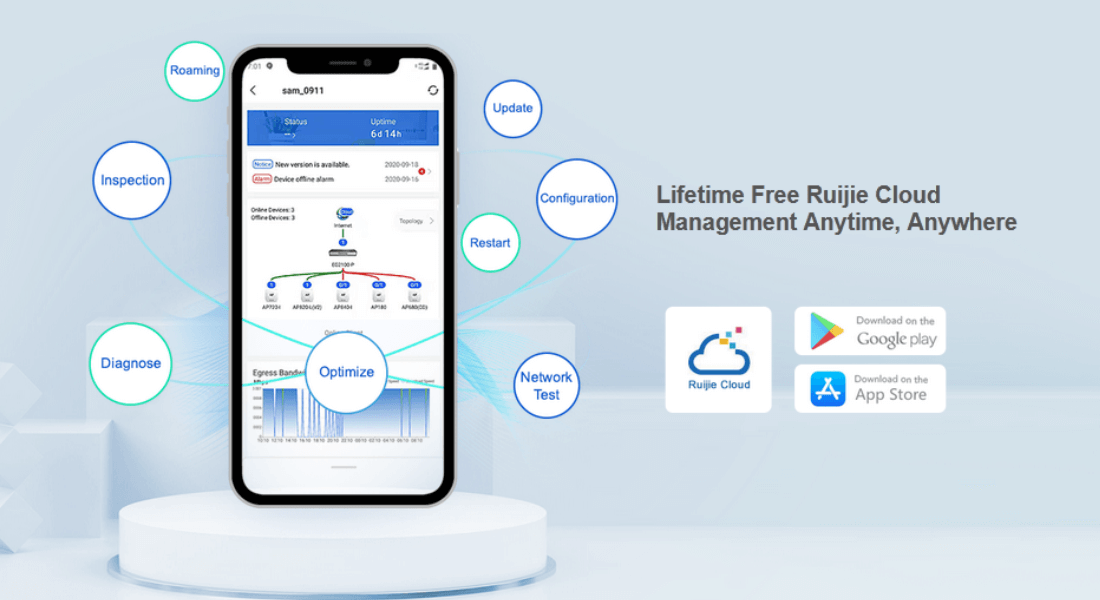

• Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App;
• Seamless layer 3 roaming
• Industrial Design: Robust casing, Provide better strength and safety for products;

High-speed dual-band Wi-Fi

The Ruijie Reyee RG-RAP1200F Dubai supports 2.4GHz and 5GHz dual-band communication, providing access rate of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP. It can provide 5GHz frequency band with less interference, wider channel, and faster speed for the terminals, allowing the users to enjoy excellent wireless experience.

Support routing and AP mode

The device supports both AP and routing mode. A wireless network can be formed with multiple APs, or it can be used as a wireless router when deployed independently. The device offers more flexible configurations, more abundant application features, and more extensive applicable scenarios.

ruijie rg rap1200f Dubai

Support Layer 3 networking

The Ruijie Reyee RG-RAP1200F device supports Layer 3 roaming for Layer 3 network. When users move across the Layer 3 networks, seamless roaming can be achieved without service interruption.

Stronger and more stable signals

An aluminum alloy antenna reflector is added to reflect interference signals and focus effective signals so as to provide stronger signal transmission and better receiving sensitivity. The device uses FBAR to filter out all kinds of interferences caused by the operator’s base stations, microwave ovens, Bluetooth devices, etc., so as to provide cleaner wireless signals, higher transmission rate and more stable transmission quality.

Robust casing

With the robust and flame-retardant material of the AP casing, the impact resistance is 5 times higher than that of common ABS plastic materials. The tensile and flexural strengths are increased by 30%, which is not easy to damage. Users can rest assured during usage and maintenance.

Simple installation

The 86mm wall plate installation design facilitates quick installation directly into a standard 86mm wall junction box, without requiring any additional mounting bracket.

Specifications
