Description
Ruijie RG-RAP1200P Dubai

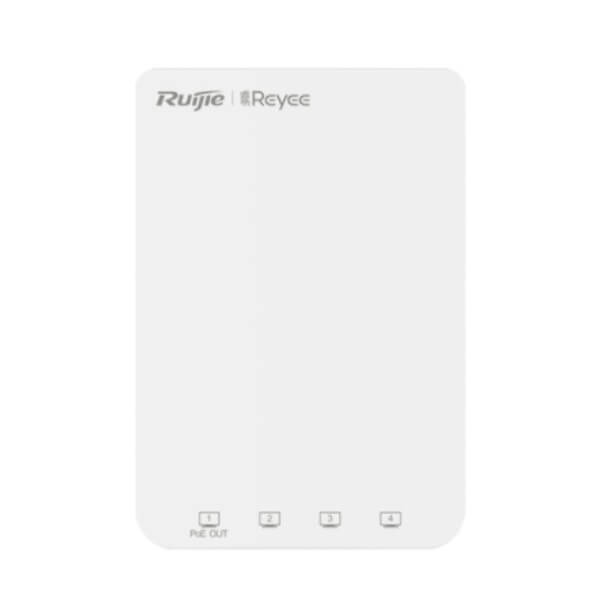

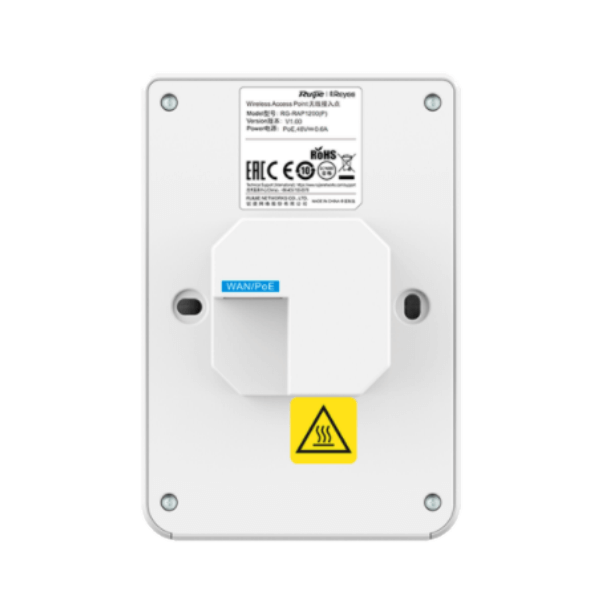

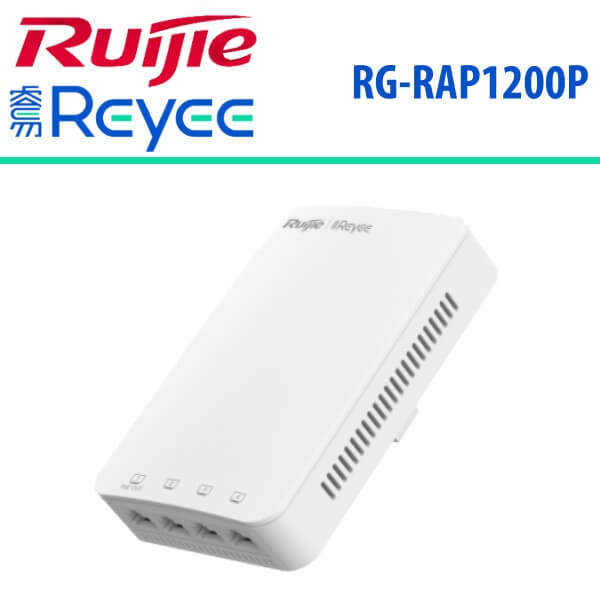

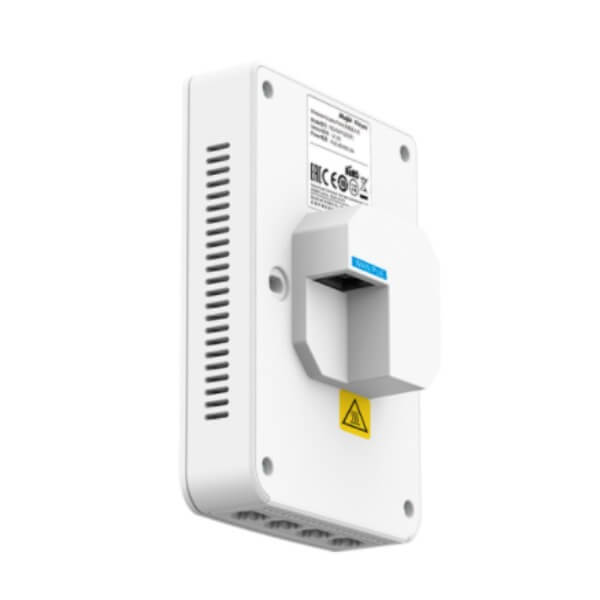

The Ruijie RG-RAP1200P Dubai boasts a dual-band gigabit wall plate access point that delivers exceptional performance, making it an excellent choice for small and medium-sized indoor Wi-Fi setups. This access point supports 802.3af/at Power over Ethernet (PoE) and offers four front-facing LAN ports, including one PoE out port, simplifying the connection of devices like IPTV and IP phones. Additionally, it provides one Gigabit uplink port on the rear panel.
Fully compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocols, this access point supports MU-MIMO dual-stream technology and comes equipped with built-in omnidirectional antennas. It operates concurrently on both 2.4GHz and 5GHz bands, delivering impressive wireless speeds of 400Mbps at 2.4GHz, 867Mbps at 5GHz, and up to 1267Mbps per access point. Its 86mm wall plate installation design makes it an ideal choice for small-scale internet access scenarios such as offices, commercial industries, hotels, and service environments.
Notably, the Ruijie RG-RAP1200P Dubai supports Ruijie’s self-organizing network feature, enabling automatic discovery, networking, and configuration among gateways, switches, and wireless access points without the need for external controllers or internet access. Users can efficiently manage device deployment, configuration, remote management, and network operation and maintenance using the Ruijie Cloud app. This approach significantly reduces equipment costs, labor expenses, and time investments during wireless network construction.
Features
MU-MIMO Dual-Band 3X Faster
Ruijie Reyee RG-RAP1200P Dubai support 802.11ac Wave2 technology that boosts up your network speed of upto 1267Mbps. MU-MIMO technology enables multiple users to access the internet simultaneously. Beamforming technology ensure connection more direct, faster and more reliable.
Full Gigabit Ports to Bridge Network
Ruijie Reyee RG-RAP1200P Dubai has four ports for bridging, one of which offers PoE passthrough when the AP is powered by an 802.3at PoE+ switch, to connect like VoIP phone to your gigabit network with no need for extra electrical cables.
Standard PoE Switch
Ruijie Reyee RG-RAP1200P Dubai is conveniently powered by standard PoE Switch. No need to install additional wiring and simply plug in existing ethernet cables. Recommend you powering RAP1200(P) with a Reyee PoE Switch.
Auto Provisioning via Self-Organizing Network Technology
Ruijie Reyee RG-RAP1200P Dubai support Self-Organizing Network technology, which realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access. With the Ruijie Cloud app, users can quickly complete the device deployment.
Specifications
Hardware specifications
Radio: Dual-stream dual-band
Protocol Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands
- 802.11b/g/n : 2.4G ~ 2.4835GHz
- 802.11a/n/ac : 5G: 5.150～5.350GHz, 5.725～5.850GHz
Antenna PF antenna（2.4G: 2dBi, 5G: 2dBi）
Spatial Streams 2.4G 2x2MIMO 5G 2x2MIMO
Max Throughput
- 2.4G : up to 400Mbps
- 5G : up to 867Mbps
- Access rate per AP : 1.267Gbps
Modulation
• OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
• DSSS : DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps
• MIMO-OFDM : BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receive Sensitivity
- 11b : -91dBm(1Mbps), -88dBm(5Mbps), -85dBm(11Mbps)
- 11a/g : -89dBm（6Mbps）, -80dBm（24Mbps）, -76dBm（36Mbps）, -71dBm（54Mbps）
- 11n : -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
- 11ac HT20 : -83dBm（MCS0）, -57dBm（MCS9）
- 11ac HT40 : -79dBm（MCS0）, -57dBm（MCS9）
- 11ac HT80 : -76dBm（MCS0）, -51dBm（MCS9）
Maximum Transmit Power
- 5.725～5.850GHz : ≤18dBm (EIRP)
- 5.150～5.350GHz : ≤18dBm (EIRP)
- 2.4～2.4835GHz : ≤18dBm (EIRP)
Adjustable Power 1dBm
Dimensions 126mm×86mm×50mm
Weight 0.24kg
Service Ports

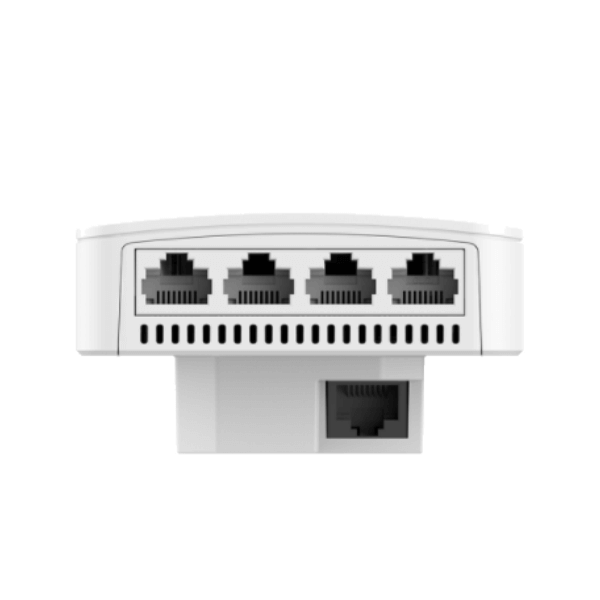

- Front : 4 10/100/1000Base-T Ethernet ports
- LAN1 port supports IEEE.802.3af PoE OUT
- Rear : 1 10/100/1000Base-T Ethernet port
