Description
Ruijie RG-RAP2260G Dubai

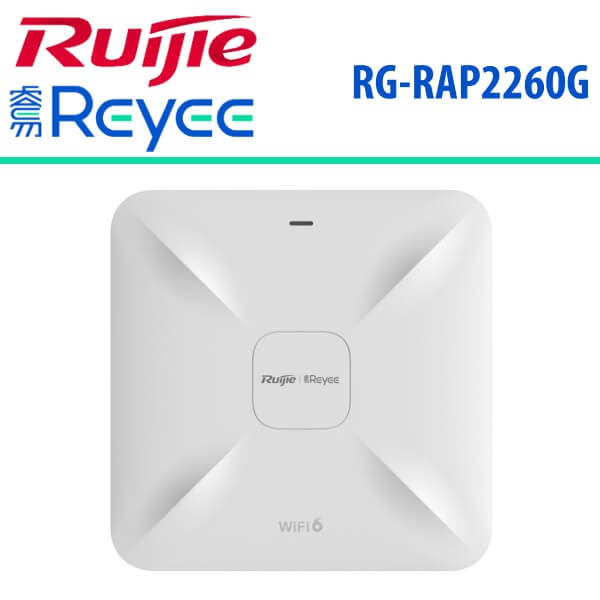

The Ruijie RG-RAP2260G Dubai Access Point is a powerful Wi-Fi 6 device designed for expansive indoor Wi-Fi coverage. It supports multiple installation options, including desktop, ceiling, wall, and pole mounting. With its versatile non-directional installation design, you can efficiently set it up in one go. This device is compatible with 802.3af/at PoE and 12V DC power supply, and it features dual LAN ports for connecting third-party devices, making it adaptable for various networking needs.
The Ruijie RG-RAP2260G Dubai is compliant with the 802.11a/b/g/n/ac/ax Wi-Fi protocols and supports MU-MIMO dual-stream technology. It comes equipped with built-in omnidirectional antennas. Operating simultaneously at 2.4GHz and 5GHz, it delivers high-speed wireless access with speeds of 574Mbps at 2.4GHz, 1201Mbps at 5GHz, and a total of up to 1775Mbps per Access Point. With a coverage range of over 20 meters, this Access Point is an excellent choice for a wide range of wireless scenarios, especially in office spaces, commercial industries, hotels, and service-oriented environments.
Features
Powerful Dual-band Wi-Fi
The Ruijie RG-RAP2260G Accesspoint Dubai supports 2.4GHz and 5GHz dual-band communication, they can provide 5GHz frequency band with less interference, wider channel, and faster speed for the terminals, allowing the users to enjoy excellent wireless experience. Ruijie Reyee RG-RAP2260G Dubai provide access rate of 800Mbps at 2.4GHz, 2402Mbps at 5GHz, in total 3202Mbps per Access Point.
Dual LAN Ports Design

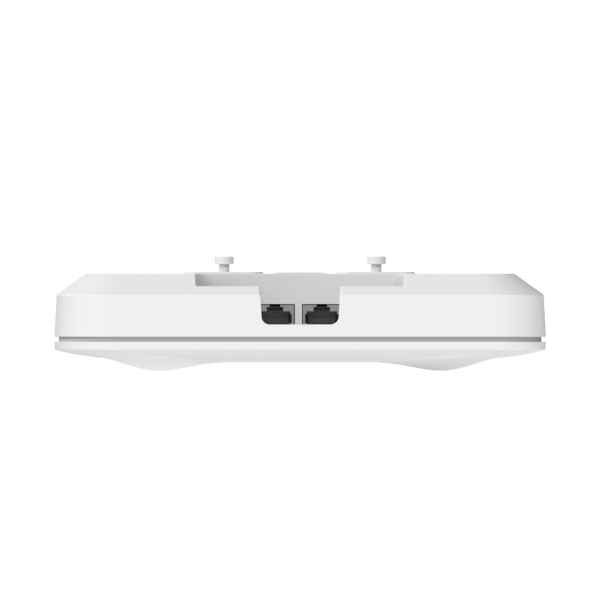

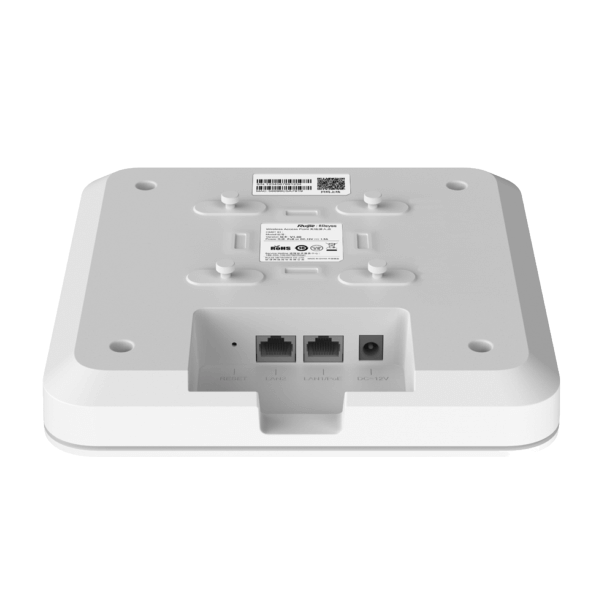

Ruijie RG-RAP2260G Accesspoint Dubai adopts the dual LAN ports design. Even for complex networking requirements, it can easily and quickly support the expansion of third-party devices, such as cameras, time and attendance devices, etc.
Support Routing and AP Mode
The RG-RAP2260G Accesspoint Dubai supports both AP and routing mode. A wireless network can be formed with multiple Access Points, or it can be used as a wireless router when deployed independently. The device offers more flexible configurations, more abundant application features, and more extensive applicable scenarios.
Support Layer 3 roaming
The device supports Layer 3 roaming for the complex Layer 3 network. When users move across the Layer 3 networks, seamless roaming can be achieved without service interruption.
Higher Stable Transmission Rates
An aluminum alloy antenna reflector is added to reflect interference signals and focus effective signals so as to provide stronger signal transmission and better receiving sensitivity. The device uses FBAR to filter out most of interferences caused by the operator’s base stations, microwave ovens, Bluetooth devices, etc., so as to provide cleaner wireless signals, higher transmission rate and more stable transmission quality.
Robust Casing
With the robust and flame-retardant material of the Access Point casing, the impact resistance is 5 times higher than that of common ABS plastic materials. The tensile and flexural strengths are increased by 30%, which is not easy to damage. Users can rest assured during usage and maintenance.
Simple Installation

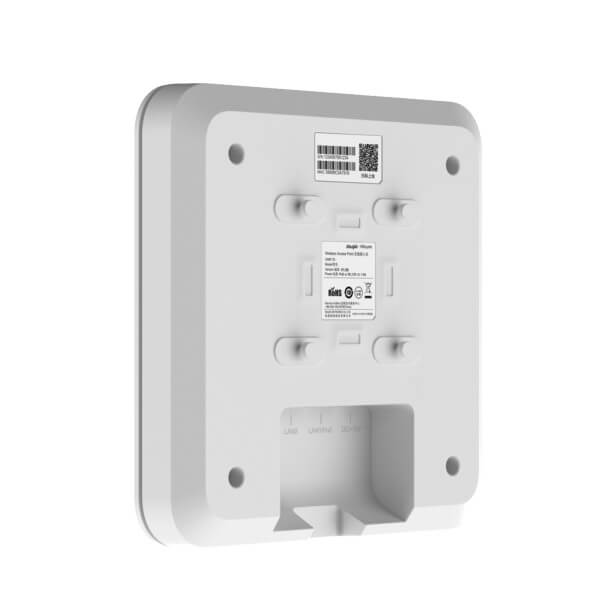

Ruijie Reyee RG-RAP2260G Dubai supports various installation methods including on desktop, ceiling, wall, and pole. Adopting the non-directional installation design, the equipment can be installed in one go efficiently.
Industrial Design
The Ruijie RG-RAP2260G Accesspoint Dubai features industrial product design, iconic edges and breathing light makes the product more recognizable.
Specifications
| Model | RG-RAP2260(G) |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n |
| Operating Bands | 802.11b/g/n/ax ：2.4G ~ 2.4835GHz
802.11a/n/ac/ax ： 5G：5.150～5.350GHz，5.725～5.850GHz |
| Antenna | Internal antennas(2.4G: 3dBi，5G: 3dBi) |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput | Up to 574Mbps at 2.4G
Up to 1201Mbps at 5G 1.775Gbp per Access Point |
| Modulation | OFDM：
BPSK@6/9Mbps QPSK@12/18Mbps 16QAM@24Mbps 64QAM@48/54Mbps DSSS： DBPSK@1Mbps DQPSK@2Mbps,and CCK@5.5/11Mbps MIMO-OFDM： BPSKPSK 16QAM 64QAM 256QAM and1024QAM OFDMA |
| Receive Sensitivity | 11b：
-96dBm(1Mbps) -93dBm(5Mbps) -89dBm(11Mbps) 11a/g： -91dBm(6Mbps) -85dBm(24Mbps) -80dBm(36Mbps) -74dBm(54Mbps) 11n： -90dBm(MCS0) -70dBm(MCS7) -89dBm(MCS8) -68dBm(MCS15) 11ac： 20MHz ：-88dBm(MCS0), -63dBm(MCS9) 40MHz ：-85dBm(MCS0), -60dBm(MCS9) 80MHz ：-85dBm(MCS0), -60dBm(MCS9) Wi-Fi 6： 80MHz ：-82dBm(MCS0), -57dBm(MCS9), -52dBm(MCS11) |
| Maximum output power of the transmitter (single stream) |
2.4GHz (2.4~2.4835GHz) ：23dBm
5GHz (5.150~5.250GHz,5.725~5.850GHz) ：23dBm |
| Adjustable Power | 1dBm |
| Dimensions | 194mm×194mm×35mm (excluding mounting kits) |
| Weight | 0.56kg (excluding mounting kits) |
| Service Ports | 2 10/100/1000M Base-T Ethernet ports, PoE/LAN1 port supports PoE |
| Management Port | NA |
| LED Indicator | Single indicator (green light) |
| Power Supply | |
| Power Consumption | ≤ 15.3W |
| Environment | Operating temperature : 0°C～40°C
Storage temperature : -40°C～70°C Operating humidity (non-condensing) : 5％～95％ Storage humidity (non-condensing) : 5％～95％ |
| Vibration Standard | IEC61373 |
| Radio Standard | EN300 328, EN301 893 |
| MTBF | >400000H |
| Operating Mode | AP mode and routing mode |
| WLAN | Maximum number of clients : 512
Recommended number of clients : 100 Up to 8 SSIDs Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID SSID-based and radio-based STA limit Support Layer 2 user isolation |
