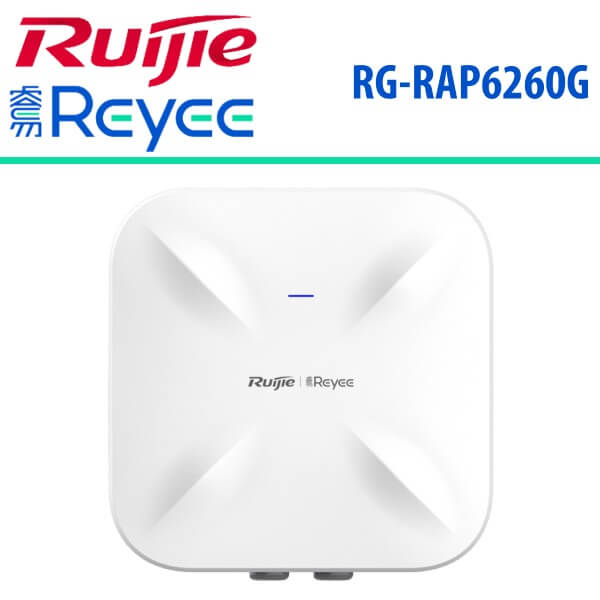

Ruijie RG-RAP6260G Dubai

Ruijie RG-RAP6260G Dubai

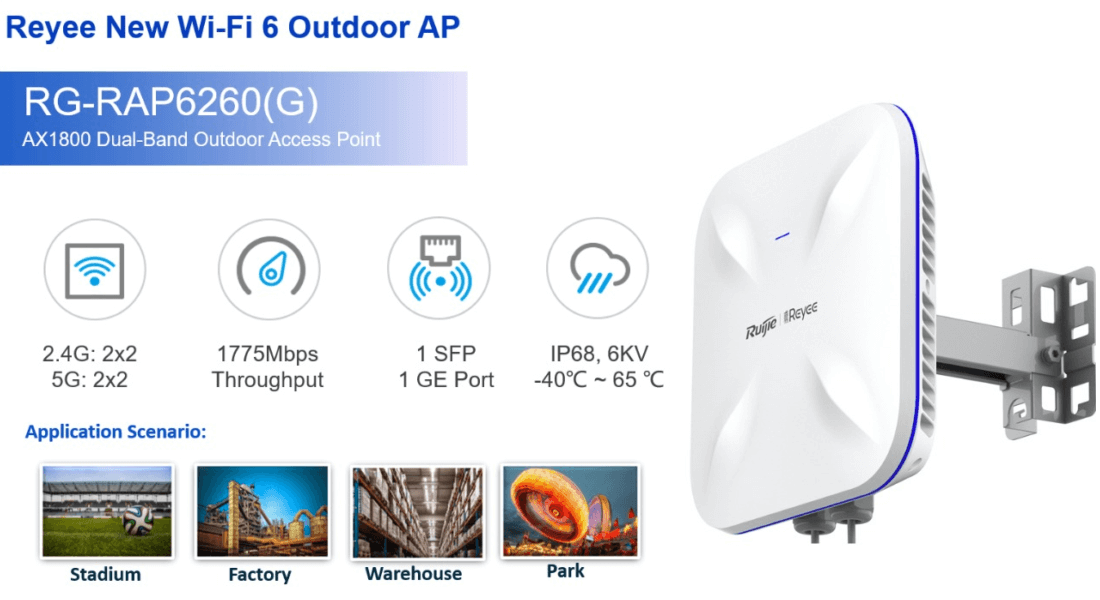

The Ruijie RG-RAP6260G Dubai Access Point is a high-performance outdoor Wi-Fi access point designed for commercial environments. This 802.11ax Wi-Fi 6 access point is ideal for covering extensive outdoor areas.

Category:

Description

Ruijie RG-RAP6260G Dubai

The Ruijie RG-RAP6260G Dubai Access Point is a high-performance outdoor Wi-Fi access point designed for commercial environments. This 802.11ax Wi-Fi 6 access point is ideal for covering extensive outdoor areas, including spaces around buildings, parking lots, schools, and public Wi-Fi zones. Its provided bracket allows for wall, horizontal, and vertical installations for added flexibility.

Managed through the Ruijie Cloud Platform, the Ruijie RG-RAP6260G Dubai offers features like automatic discovery, provisioning, self-organization, and self-configuration. To ensure reliable network connectivity, the unit should be connected via a wired backhaul, either through SFP or Gigabit Ethernet RJ45.

The Ruijie RG-RAP6260G Dubai is built to withstand outdoor conditions, with an IP68-rated protective outer shell design. It can endure extreme weather conditions, including ultra-cold and humid environments, making installation and maintenance less challenging. Additionally, it supports Power over Ethernet remote mode, making it suitable for various scenarios such as education, government, healthcare, finance, and business.With data rates of 574 Mb/s over 2.4 GHz and 1201 Mb/s over 5 GHz, the Ruijie RG-RAP6260G Dubai provides an impressive total Wi-Fi throughput of up to 1.8 Gbps.

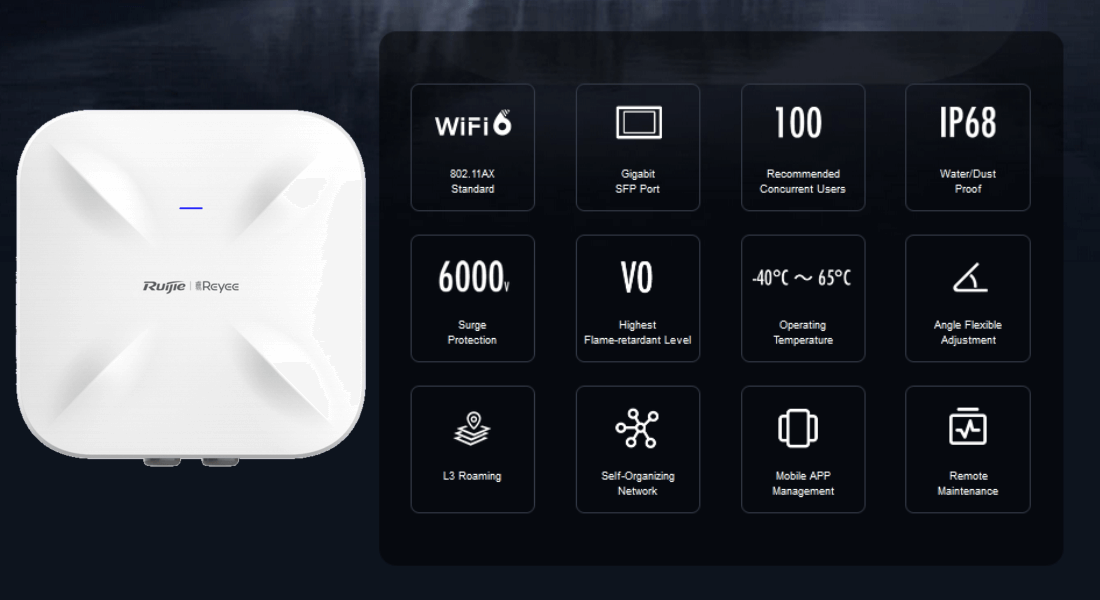

Features

  • 11ax WiFi-6 supporting speeds up to 1775 Mbps
  • Dual band dual stream (2×2:2)
  • Managed with Ruijie Cloud Controller for seamless onboarding and roaming between APs
  • Up to 512 simultaneous users per access point (100 recommended)
  • 3af/at PoE or 12 Vdc power supply
  • 1x gigabit ethernet port, 1x gigabit SFP Port

Speedy Dual Band Access Point

With concurrent 2.4GHz and 5GHz, the Ruijie RG-RAP6260G Accesspoint supports dual-band dual-stream MIMO technology, providing 574Mbps at 2.4GHz, 1201Mbps at 5GHz and up to 1775Mbps per AP. In addition, it offers a comfortable experience for low interference, wide band width and high-speed 5Ghz frequency band.

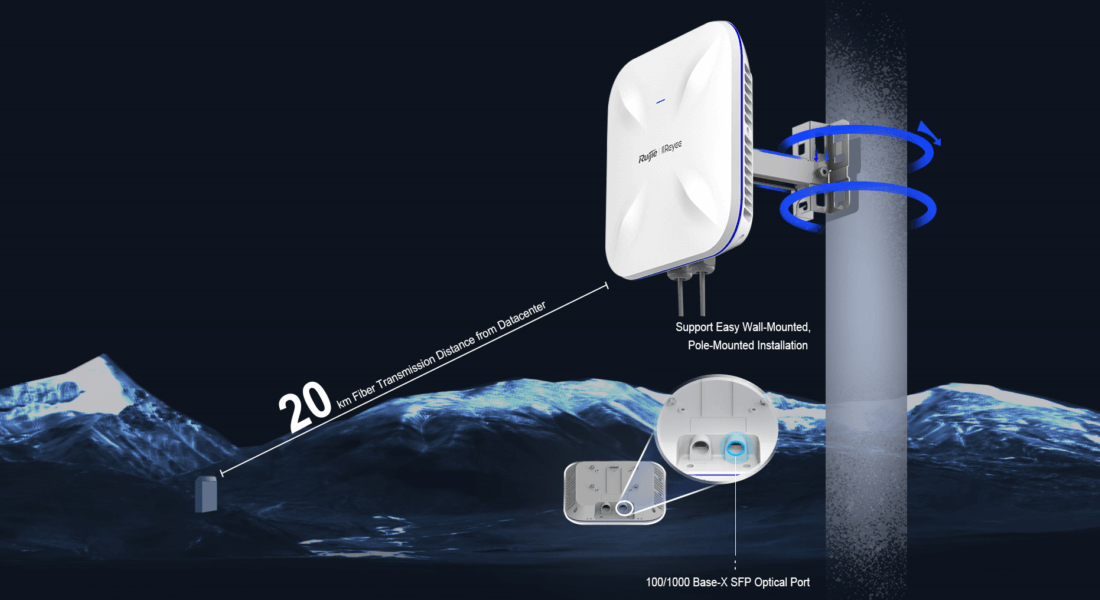

Flexible Gigabit Uplink Options

The Ruijie RG-RAP6260G Accesspoint outdoor access point offers one 10/100/1000Base-T Ethernet uplink port that rids the LAN port of the wireless access bottleneck and one 1000M SFP port that adapts to wired networking structure under different user scenarios. In addition, the SFP Base-X port takes up the data transmission workload for optimal network deployment.

Support Both Router and AP Mode

The Ruijie RG-RAP6260G Accesspoint supports both router and AP mode. It can set up Wi-Fi with multiple AP devices. At the same time, it can be a router when uses individually. The device has a flexible setting, various functions and can be applied in many scenarios.

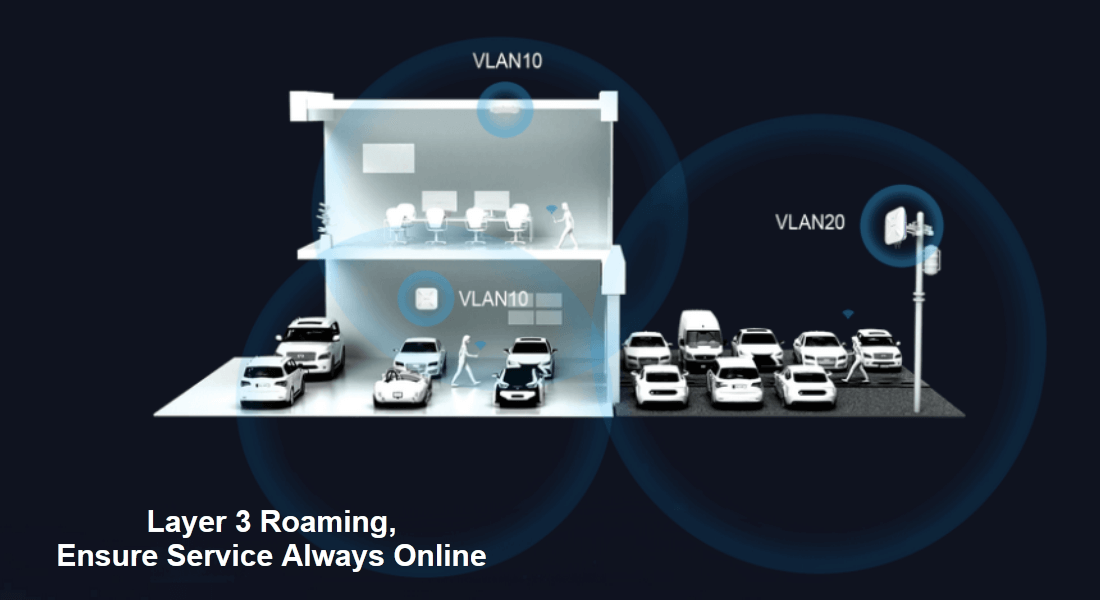

Support Layer 3

Even in the complex layer three networks, the device supports layer 3 roaming, which can provide the best experience even when the client is across the layer 3 network.

Stronger and More Stable Signal

With high-quality antennas, the transmitted signal is stronger and receiving sensitivity is better. In addition, the equipment uses FBAR filters which can effectively filter out various interferences, including operator’s cell sites, microwave ovens, Bluetooth devices, etc. Therefore, the wireless signal is cleaner, the transmission rate is higher, and the transmission quality is more stable.

Outstanding Environment Suitability

The outer shell of the product applies a completely sealed waterproof, dust-proof, moisture-proof and flame-retardant design. It meets the requirements of the IP68 protection level. It can be placed outdoors for a long time and still perform under harsh environments such as windy, rainy, and humid weather. As a result, the life cycle of the equipment is greatly improved, and at the same time and the user’s subsequent maintenance costs can be effectively reduced.

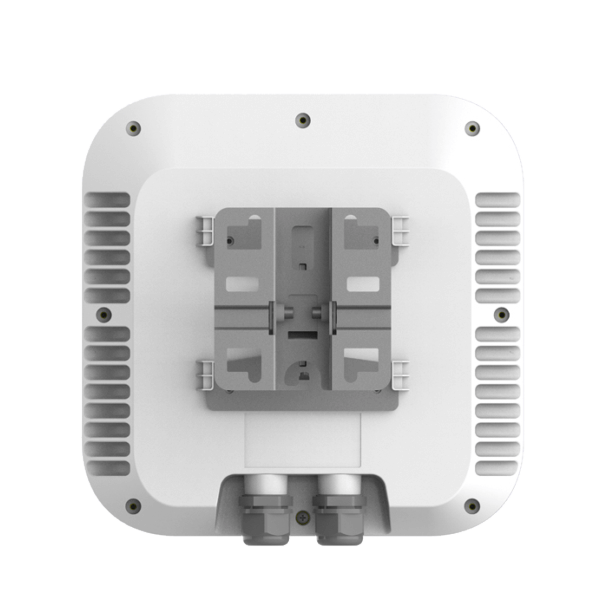

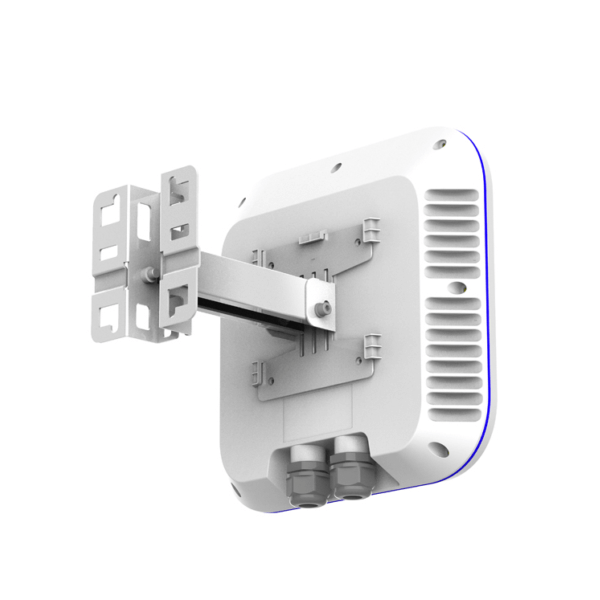

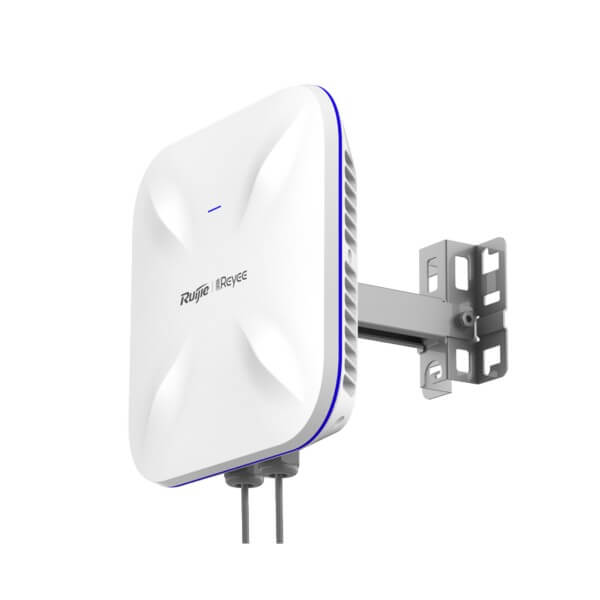

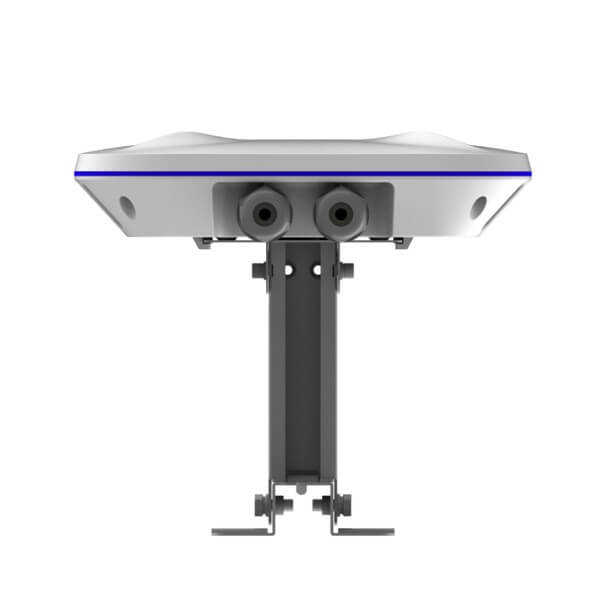

Easy-to-Use Installation

Ruijie RG-RAP6260G Accesspoint Dubai has three types of installation, wall mount, horizontal and vertical installation. It is more efficient by using the one-step installation.

Industrial Design

The RG-RAP6260G applies industrial outer shell design, which has the typical angular design. With breathing lights, it has high recognizability.

Multi-End Management

The AP supports management via Ruijie Cloud APP, Ruijie Cloud platform, EWeb management to achieve multi-end local and remote management on PC, Ruijie Cloud APP.

Fast and Smart Configuration

In large-scale complex networks, the entire network configuration can be completed by connecting to a single gateway device. As a result, there is no need to configure the devices separately, which can significantly reduce the configuration time of the device.

Scenario-Based Configuration

Scenario-based configurations can be performed via the EWeb and Ruijie Cloud APP, which can significantly reduce the configuration threshold of complex functions, such as visitor isolation solution, flow control solution, etc. Therefore, even novices can easily fulfil the diverse and complex requirements of the customers.

Visualized Operation and Maintenance

The cloud computing network topology can comprehensively present the equipment operating status of the entire network. Through the rich information in the topology, you can quickly get the complete picture of the network (network egress status, link status, device status) and quantify the user experience and network quality to master the information of the entire network.

Remote Assistance Management

The client can manage all devices via Ruijie Cloud APP, Ruijie Cloud platform to perform the remote assistance management. To achieve high effective management on the corporate internet, it can also share and give others access to perform remote assistance management.

Network Optimization with Big Data AI

Through artificial intelligence combined with cloud big data, comprehensive network intelligent operation and maintenance and optimization can be carried out. Including but not limited to: Possess automatic system repair capabilities such as automatic identification and merging of new equipment, WAN port IP address conflict avoidance, etc. Provide system intelligent optimization capabilities such as business-based network policy configuration, radio frequency channel and roaming characteristics adjustment. Provides diagnosis and repair suggestions for more than 30 common network anomalies, including DHCP conflicts, abnormal negotiation rates, traffic overruns, AP offline, device interference, etc.

Specifications

Technical Specification Specification Description
Model RG-RAP6260(G)
Radio Dual-stream dual-band
Protocol Concurrent 802.11a/b/g/n/ac/ax
Operating Bands 802.11b/g/n/ac/ax :2.4G ~ 2.4835GHz

802.11a/n/ac/ax: 5G:5.150~5.350GHz,5.725~5. (country specific)

Antenna Internal antennas (2.4G: 4dBi,5G: 6dBi)
Spatial Streams 2.4G 2x2MIMO 5G 2x2MIMO
Max Throughput Up to 575Mbps at 2.4G

Up to 1200Mbps at 5G

Totally 1775Mbps per AP

Modulation DBPSK/DQPSK/CCK(DSSS)/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM
Receive Sensitivity 11b :-91dBm(1Mbps),-88dBm(5Mbps),-85dBm(11Mbps)

11a/g :-89dBm(6Mbps),-80dBm(24Mbps),-76dBm(36Mbps),-71dBm(54Mbps)

11n :-83dBm@MCS0,-65dBm@MCS7,-83dBm@MCS8,-65dBm@MCS15

11ac HT20 :-83dBm(MCS0), -57dBm(MCS9)

11ac HT40 :-79dBm(MCS0), -57dBm(MCS9)

11ac HT80 :-76dBm(MCS0), -51dBm(MCS9)

11ax:HE80 :-82dBm(MCS0), -57dBm(MCS9),-52dBm(MCS11)

Maximum Output Power of the Transmitter

(Single Stream)

2.4GHz(2.4~2.4835GHz) :26dBm

5GHz(5.150~5.250GHz,5.725~5.850GHz) :25dBm (country-specific,comply with local laws)

Adjustable Power 1dBm
Dimensions 298mm×298mm×65mm (excluding mounting kits)
Weight ≤1.35kg (excluding mounting kits)
Service Ports 1 10/100/1000 Base-T Ethernet port supports PoE IN;

1 100/1000 Base-X SFP Port

LED Indicator Single indicator (Blue light)
Power Supply 802.3af/802.3 at PoE
Power Consumption ≤17W
Bluetooth Support
Environment Operating Temperature :-40°C~65°C
Storage Temperature :-40°C~85°C
Operating humidity :0%~100%, non-condensing
Storage humidity :0%~100%,condensing/non-condensing
Installation Ceiling/Wall-Mountable
Safety Standard GB4943、IEC 60950-1
EMC Standard GB9254、EN301 489,EN50155:EN50121
Vibration Standard IEC61373
Radio Standard EN300 328,EN301 893
MTBF >400000H
WLAN Maximum number of clients : 512
Recommended number of clients : 100
Up to 8 SSID
Support SSID hiding

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limit
Support Layer 2 user isolation
Roaming Support layer 2 and layer 3 roaming
Security Support PSK authentication
Support static blacklist and whitelist
Support WPA(TKIP),WPA2(AES),WPA-PSK data encryption
Routing Support static IP address, DHCP, PPPoE Dial
Management and Maintenance Support unified networking of all network equipment

Support local or remote management with Ruijie Cloud APP

Support local management with web

Support remote management with Ruijie Noc Cloud platform

Platform Management Features Automatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform
