Description

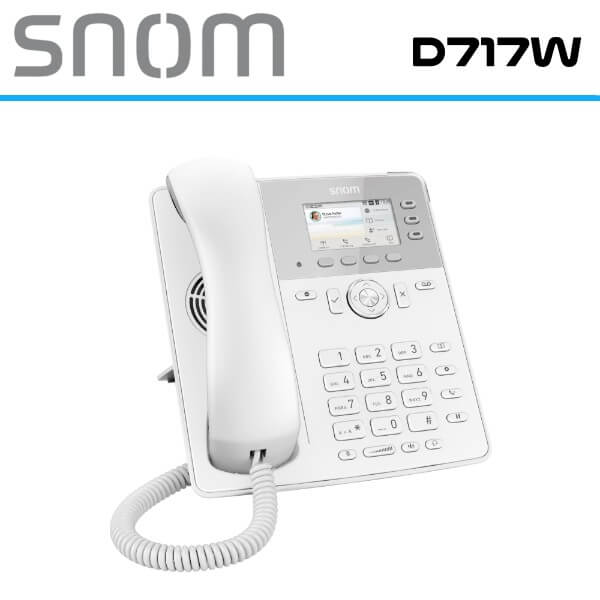

Snom D717W Dubai
The Snom D717W Dubai features a high-resolution color display and the customizable Snom SmartLabel. An integrated ambient sensor automatically adjusts the phone display brightness according to the room’s lighting conditions, saving energy and offering convenience. It includes 3 multi-colored LED function keys that can be self-labeled and an integrated gigabit switch. Additionally, the phone allows connection to various accessories through the USB port.
Technical Specifications
Features
- 6 SIP identities / accounts
- XML browser
- Call lists for dialed, received, missed calls
- Local directory with 1000 entries
- Multiple language support
- DTMF in-band / out-of-band / SIP-INFO
- Interoperable with all major IP PBX platforms
Call Features
- Speed dialing
- URL dialing
- Local dial plan
- Automatic redial on busy
- Call completion (busy/unreachable)(2)
- Caller identification
- Call waiting
- Call blocking (deny list)
- Auto answer
- Hold
- Music on hold(2)
- Blind and attended transfer
- Call forwarding
- 3-way conferencing on the phone
- Extension monitoring, call pickup(2)
- Call park, call unpark(2)
- Multicast paging
- DND mode (do not disturb)
- Keyboard lock
- Client matter code (CMC)(2)
- Unified Communications ready
Audio
- Codecs:
- G.711 A-law, μ-law
- G.722 (wideband)
- G.726, G.729AB, GSM 6.10 (FR)
- Built-in assignable ringtones
- Comfort Noise Generator (CNG)
- Voice Activity Detection (VAD)
Protocols
- SIP (RFC3261)
- DHCP, NTP
- HTTP / HTTPS / TFTP
- LDAP (Directory)
- Dual Stack IPv4 / IPv6
User Interface
- Localization (language, time, dial tone)
- Red LED for call indication / message waiting
- 4 context-sensitive keys
- 3 programmable line / function keys with multicolour LEDs
- Dedicated keys for: Message, DND, Directory,Menu, Transfer, Hold, Page
- Audio keys with LED indication: Mute,Speakerphone, Headset
- Volume key
- 5-way navigation key
- OK and Cancel keys
- Automatic backlight enabled
Security
- 802.1X authentication and EAPOL
- Transport layer security (TLS)
- SRTP (RFC3711), SIPS, RTCP
- HTTPS server/client
- password-protected web interface
- VPN-support
- VLAN (IEEE 802.1Q)
- LLDP-MED, RTCP-XR
Phone Features
- Dimensions (approx.):
- 205 x 185 x 40 mm (LxWxD) w/o foot stand
- 205 x 185 x 200/220 mm (LxWxD) with foot stand
- Weight (approx.): device 710g, footstand 120g
- Input voltage: 5Vdc (SELV)
- Power supply: PoE or 5Vdc power adapter(1), 10 Watts
- Handset: 4P4C
- Headset: 4P4C; Support for Snom EHS Advanced (1)
- Hearing-aid compatible (HAC) handset
- 1 x USB 2.0 host port, Type A
