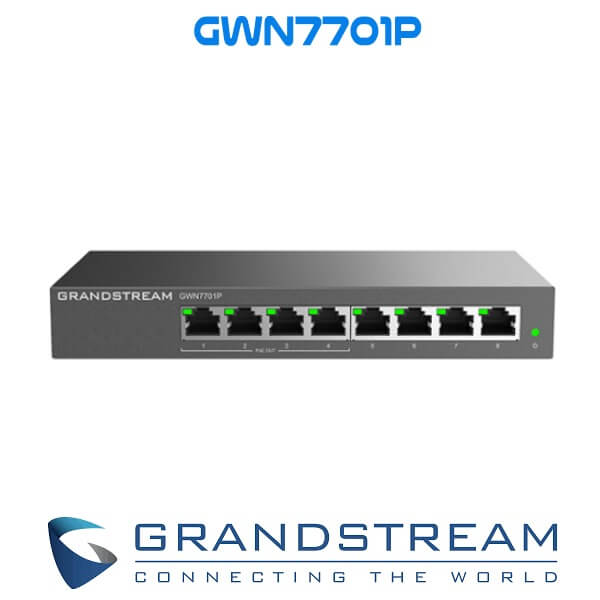

The Grandstream GWN7701P Dubai

The Grandstream GWN7701P Dubai

The Grandstream GWN7701P Dubai to automatically detect the link speed of any 10/100/1000Mbps network device and adjust accordingly for compatibility and optimal performance.

Category:

Description

The Grandstream GWN7701P Dubai

The GWN7700 series is a line of unmanaged network switches that offer a convenient and cost-effective solution for adding high-speed Gigabit connectivity to home offices and small/medium businesses. The Grandstream GWN7701P does not require any configuration or installation and comes in a desktop and wall-mountable design. It also features auto MDI/MDIX, eliminating the need for crossover cables. Each port supports auto-negotiation, allowing the GWN7700 series to automatically detect the link speed of any 10/100/1000Mbps network device and adjust accordingly for compatibility and optimal performance. The PoE (Power-over-Ethernet) models come with IEEE 802.3af/at compliant ports that provide smart dynamic PoE output, making it possible to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. The GWN7700 series, with its plug-and-play functionality, is the perfect choice for home offices and small-to-medium businesses in need of unmanaged network switches.

The Grandstream GWN7701P Specifications

Gigabit Ports 8
PoE Ports 4
Enclosure Metal
Mounting Desktop/ Wall-Mount
Standards and

Protocols

 IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Port Feature 8× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX
Network Media 1000Base-T/100Base-TX/10Base-T,  Half/Full-Duplex


PoE Configuration
  • 1~4 Ports 802.3 af/at compliant
  • Up to 30 W on Each Port, Total 60W Power Budget;
  • Overload to cut off the   lowest- priority port.
  • Priority:  Port 4 to Port 1
LED Indicators Per port: Link/Activity Green Per device: Power Green
Mac Address Table 8K
Switching Capacity 16Gbps
Jumbo Frame 9KB


Advanced Features
  • Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • Unlink clear FDB Feature IGMP:
  • IGMP Fast-Leave
  • IGMP Snoop
  • Route Port Autolearn
  • Query Refresh Member Port
Power Adapter External 48-53.5VDC/1.22A
Max Power Consumption

by Base System

 3W

(excluding PoE output power)


Environmental

 Operating Temperature: 0  to 40 °C (32  to 104 °F)

Storage Temperature: -20 to 60 °C (-4 to 140 °F)

Operating Humidity: 10% to 90% Non-condensing

Storage Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H) Unit:190 x 100 x 28mm Package: 230 x 210 x 51mm
Weight Unit: 0.44KG   Entire Package: 0.92KG
 Package  1x Switch, 1x Power Adapter, 1x QIG
