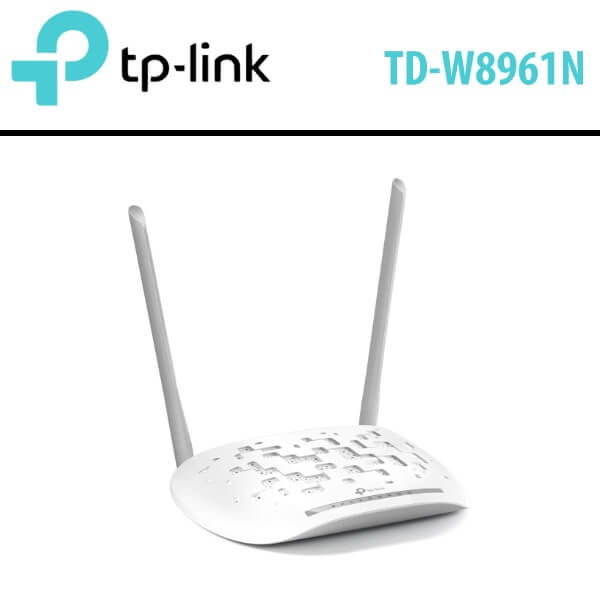

Tp-link TD-W8961N Dubai

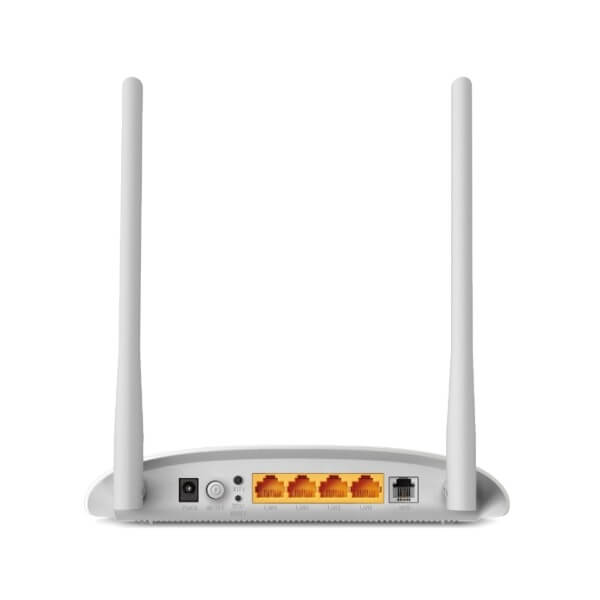

The Tp-link TD-W8961N Dubai 300Mbps Wireless N ADSL2+ Modem Router—a highly durable all-in-one solution. This device delivers the full potential of the ADSL2+ standard, coupled with exceptional reliability, making it an ideal and economical choice for both home and small business applications.

Experience the power of the Tp-link TD-W8961N Dubai as it enables you to effortlessly establish a secure wireless network. You can seamlessly share a high-speed internet connection while also facilitating access to shared files, music, photos, and printers across multiple computers.

Highlighted Features:

  • All-in-One Convenience: The Tplink TD-W8961N Dubai consolidates various networking components into a singular, sleek device. With an integrated ADSL2+ modem, NAT router, 4-port switch, and a 300Mbps wireless N access point, this device negates the need for multiple purchases, offering easy access and sharing of high-speed internet connections.
  • Impressive Wireless Performance: Equipped with 300Mbps 802.11n wireless capability and four Megabit LAN ports, the Tplink TD-W8961N Dubai is the optimal choice for users seeking bandwidth-intensive activities. It caters to seamless experiences in tasks such as lag-free conference calls, HD video streaming, and online gaming.
  • Tailored for Multimedia Applications: The Port Vlan feature binds specific LAN ports and PVCs to cater to distinct services like IPTV. The device’s built-in QoS engine supports a variety of QoS policies that prioritize internet traffic. This ensures uninterrupted IPTV streaming and lag-free online gaming, enabling users to enjoy a smooth network connection without traffic congestion. Coupled with IGMP multicast and IGMP snooping features, the TD-W8961N becomes an ideal solution for multimedia applications.

  • Advanced Network Security and Versatile Management: The Tplink TD-W8961N Dubai employs NAT and SPI firewalls that scrutinize incoming packet contents, thwarting potential internet-borne attacks. Enhancing convenience, the device supports access control based on MAC addresses, IP addresses, domain names, or specific applications like MSN or Yahoo Messenger. This enables parents and network administrators to institute restricted access policies for children or staff. Alongside its web configuration, the TD-W8961N supports TR-069 and SNMP, allowing automatic updates of firmware and settings from the ISP, thus elevating network security and management flexibility for users.

Technical Specifications :

Hardware features :

Interface

  • 4 10/100Mbps RJ45 Ports
  • 1 RJ11 Port

Button :

  • 1 Power On/Off Switch
  • 1 WPS Button
  • 1 Wi-Fi On/Off Button

External Power Supply : 9VDC/0.6A
Ieee Standard : Ieee 802.3, 802.3u

Adsl Standards :

  • Full-rate Ansi T1.413 Issue 2,
  • Itu-T G.992.1(G.DMT),
  • Itu-T G.992.2(G.Lite)
  • Itu-T G.994.1 (G.hs),
  • Itu-T G.995.1

Adsl2 Standards :

  • Itu-T G.992.3 (G.dmt.bis),
  • Itu-T G.992.4 (G.lite.bis)

Adls2+ Standards : ITU-T G.992.5

Dimensions ( W x D x H ) : 7.7 * 5.1 * 1.4 in. (195 * 130 * 35 mm )

Antenna Type : Omni directional, Fixed

Antenna Gain : 2x5dBi

Wireless features :

  • Wireless Standards : Ieee 802.11n, 802.11g, 802.11b
  • Frequency : 2.400-2.4835GHz
  • Transmit Power : <20dBm(Eirp)
  • Wireless Security : Support 64/128 bit Wep, Wpa-Psk/Wpa2-Psk,
  • Wireless Mac Filtering

Software features :

Quality of Service : QoS Remarking based on IPP/ToS, DSCP and 802.1p

Security :

  • Nat Firewall,
  • Spi Firewall,
  • Mac / Ip / Packet / Application / Url Filtering,
  • Denial of Service(Dos),
  • Syn Flooding,
  • Ping of Death

Management :

  • Web Based Configuration(Http)
  • Remote management
  • Telnet management
  • Command Line Interface
  • Ssl for TR-069
  • Snmp v1/2c
  • Snmp over Eoc
  • Web Based Firmware Upgrade
  • Cwmp(Tr-069)
  • Diagnostic Tools

Port Forwarding : Virtual Server, Dmz, Acl(Access Control List)

Vpn Pass-Through : Pptp, L2tp, IpSec Pass-through

Atm/Ppp Protocols :

  • Atm Forum Uni3.1/4.0,
  • Ppp over Atm (RFC 2364),
  • Ppp over Ethernet (RFC2516),
  • IPoa (RFC1577/2225),
  • Pvc – Up to 8 PVCs

Advanced Features :

  • Traffic Shaping(Atm QoS) Ubr, Cbr, Vbr-rt, Vbr-nrt
  • Dynamic Host Configuration Protocol (Dhcp), DHCP relay
  • Network Address Translation (Nat)
  • PVC/Ethernet Port Mapping
  • Vlan, 802.1p
  • Static Routing, RIP v1/v2 (optional)
  • Dns Relay, Ddns
  • Igmp snooping V1/2
  • Igmp Multicast
  • UPnpp

Others :
Certification : Ce, Fcc, Rohs

Package Contents :

  • Td-W8961n
  • External Splitter
  • Rj-11 Telephone Cable
  • Rj-45 Ethernet Cable
  • Quick Installation Guide
  • Power Adapter

System Requirements Microsoft :

  • Windows 98se, Nt, 2000, Xp, Vista ，Windows 7 or Windows 8
  • Mac Os, NetWare, Unix or Linux

Environment :

  • Operating Temperature : 0c~40c (32F~104F)
  • Storage Temperature : -40c~70c (-40F~158F)
  • Operating Humidity : 10%~90% non-condensing

Storage Humidity : 5%~90% non-condensing
