Tplink Archer-A7 Dubai

Tplink Archer-A7 Dubai

The Tplink Archer-A7 Dubai allows you to set up a guest network with limited and timed access for temporary visitors. When it comes to security, the Tplink Archer-A7 Dubai router supports various encryption protocols.

Category:

Description

Tplink Archer-A7 Dubai

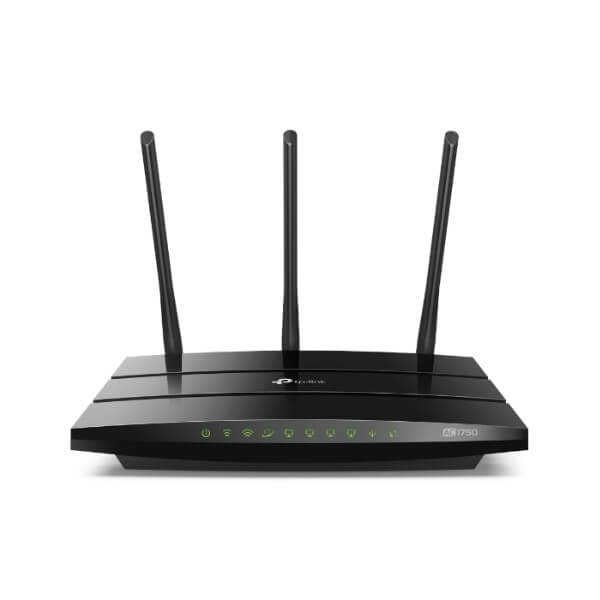

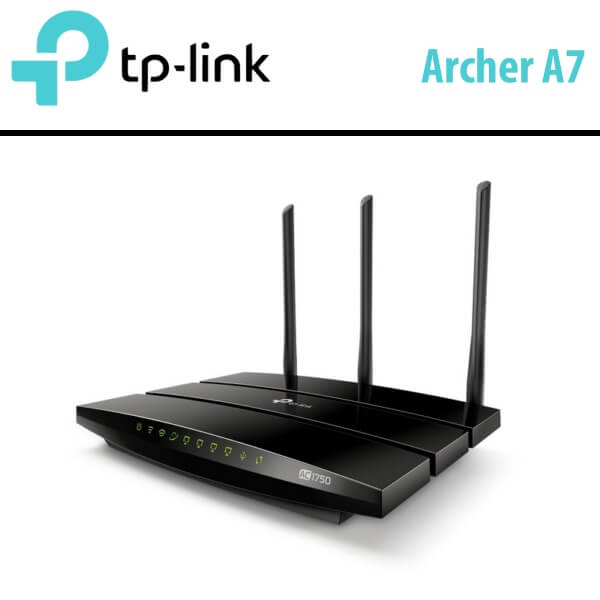

The Tplink Archer-A7 Dubai Wireless Dual Band Gigabit Router (Archer C7) by TP-Link supports the 802.11ac standard and offers simultaneous connections on both the 2.4GHz and 5GHz bands, providing a total available bandwidth of 1.75Gbps. With Wi-Fi 5 (802.11ac) capability, this router operates on dual bands, namely 2.4 GHz and 5 GHz. It can achieve speeds of up to 450 Mb/s on the 2.4 GHz band and 1300 Mb/s on the 5 GHz band, resulting in a combined speed of 1750 Mb/s. To ensure the security of your personal Wi-Fi network and prevent unauthorized access, the Tplink Archer-A7 Dubai allows you to set up a guest network with limited and timed access for temporary visitors. When it comes to security, the Tplink Archer-A7 Dubai router supports various encryption protocols, including 64-bit WEP, 128-bit WEP, WPA/WPA-PSK, and WPA2/WPA2-PSK. It also features a WPS button for a secure and hassle-free setup. In terms of connectivity, the router comes with three fixed external antennas, four Gigabit Ethernet RJ45 LAN ports, and a Gigabit Ethernet RJ45 WAN port. Additionally, it boasts a USB 2.0 Type-A port that allows you to connect an external hard drive or a printer for file sharing or wireless printing, respectively.

Technical Specs

Hardware Features

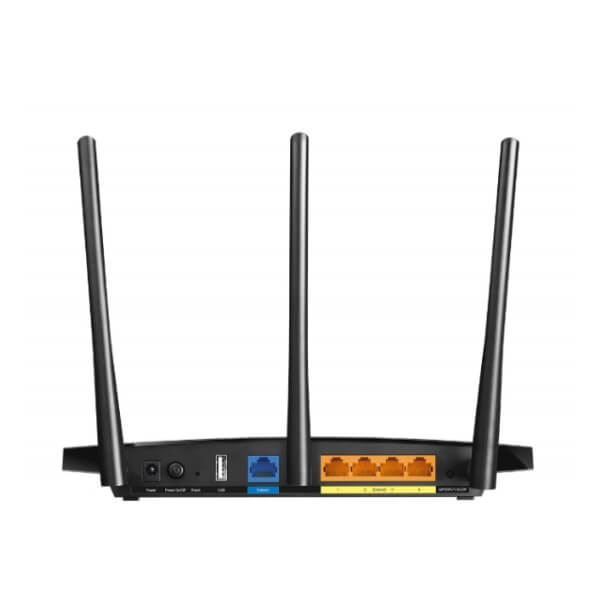

  • Interface :
    • 4 10/100/1000Mbps LAN Ports
    • 1 10/100/1000Mbps WAN Port
    • 2 USB 2.0 Ports
  • Button : WPS/Reset Button
  • Wireless On/Off Switch
  • Power On/Off Button
  • External Power Supply : 12VDC / 2A
  • Dimensions ( W x D x H ) : 9.6×6.4×1.3 in. (243×160.6×32.5mm)
  • Antenna Type : Three detachable antennas ( RP-SMA)

Software Features

  • Quality of Service : WMM, Bandwidth Control
  • WAN Type : Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)/BigPond
  • Management : Access Control
  • Local Management
    • Remote Management
    • DHCP : Server, Client, DHCP Client List,
    • Address Reservation
    • Port Forwarding : Virtual Server, Port Triggering, UPnP, DMZ
    • Dynamic DNS : DynDns, Comexe, NO-IP
    • VPN Pass-Through : PPTP, L2TP, IPSec
    • Access Control : Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
    • Firewall Security : DoS, SPI Firewall
    • IP Address Filter/MAC Address Filter/Domain Filter
    • IP and MAC Address Binding
    • Protocols : Supports IPv4 and IPv6
    • USB Sharing : Support Samba(Storage)/FTP Server/Media Server/Printer Server
    • Guest Network : 2.4GHz guest network × 1
    • 5GHz guest network × 1

Wireless Features

  • Wireless Standards :
    • IEEE 802.11ac/n/a 5GHz
    • IEEE 802.11b/g/n 2.4GHz
  • Frequency : 2.4GHz and 5GHz
  • Signal Rate :
    • 5GHz : Up to 1300Mbps
    • 2.4GHz : Up to 450Mbps
  • Reception Sensitivity :
    • 5GHz
      • 11a 6Mbps : -96dBm
      • 11a 54Mbps : -79dBm
      • 11ac HT20 : -71dBm
      • 11ac HT40 : -66dBm
      • 11ac HT80 : -63dBm
    • 2.4GHz :
      • 11g 54M : -77dBm
      • 11n HT20 : -74dBm
      • 11n HT40 : -72dBm
  • Transmit Power :
    • CE :
      • <20dBm(2.4GHz)
      • <23dBm(5GHz)
    • FCC :
      • <30dBm
  • Wireless Functions : Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
  • Wireless Security : 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
