Description

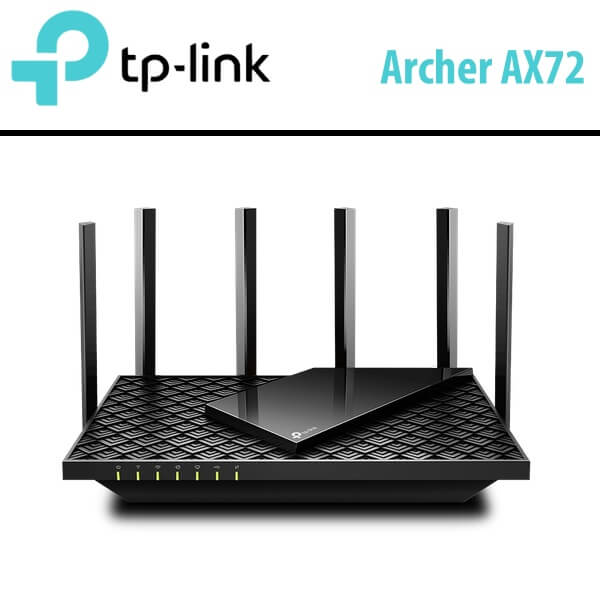

Tplink Archer-AX72 Dubai
The Tplink Archer-AX72 Dubai comes with an advanced and efficient 64-bit Qualcomm CPU, enhancing data processing and minimizing network latency. This results in a strong and stable network connection. With the ability to handle multiple devices simultaneously, your home network is future-proofed by the combination of OFDMA and MU-MIMO technologies, allowing for greater device connectivity. The integrated MU-MIMO Technology enables data transmission to multiple devices simultaneously through multiple streams, while the modern slant rectangle design adds a contemporary touch. Additionally, the scaled armor design includes a dedicated area of 167 cm² (25 in²) for efficient heat dissipation, maximizing the machine’s overall performance.
Features
- Gigabit Wi-Fi for 8K Streaming : 5400 Mbps Wi-Fi for faster browsing, streamings, and downloading, all at the same time.
- Fully Featured Wi-Fi 6 : Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable 4.8 Gbps ultra-fast connection.
- Connect 100+ Devices : Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- Extensive Coverage : Tplink Archer-AX72 Dubai is equipped with 6× antennas and Beamforming which ensure broad coverage.
- HomeShield : TP-Link’s premium security services keep your home network safe with cutting-edge features for network and IoT protection.
- More Vents, Less Heat : Improved vents area unleash the full power of the whole machine.
- USB Sharing : 1× USB 3.0 port enables easy media sharing and private cloud building.
- Easy Setup : Set up the router in minutes with Tether app.
Technical Specs
| Standards | Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX5400
5 GHz : 4804 Mbps (802.11ax, HE160) 2.4 GHz : 574 Mbps (802.11ax) |
| WiFi Range | 3 Bedroom Houses
6× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission |
| WiFi Capacity | High
Dual-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 6 Streams Connect your devices to more bandwidth |
| Working Modes | Working Modes
Access Point Mode |
| HARDWARE | |
| Processor | 1 GHz Dual-Core CPU |

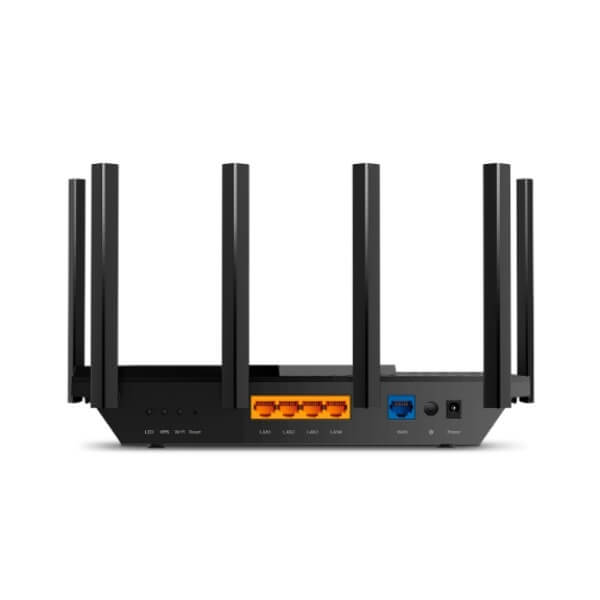

| Ethernet Ports | 1× Gigabit WAN Port
4× Gigabit LAN Ports |
| USB Support | 1× USB 3.0 Port
Supported Partition Formats : NTFS, exFAT, HFS+, FAT32 Supported Functions : Apple Time Machine FTP Server Media Server Samba Server |
| Buttons | Wi-Fi On/Off Button
Power On/Off Button LED On/Off Button WPS Button Reset Button |
| Power | 12 V ⎓ 2.5 A |
| SECURITY | |
| WiFi Encryption | SPI Firewall
Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN
PPTP |
| SOFTWARE | |
| Protocols | IPv4
IPv6 |
| OneMesh | OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products. |
| Parental Controls | HomeShield Parental Controls
Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Types | Dynamic IP
Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade
TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding
Port Triggering DMZ UPnP Virtual Server |
| IPTV | IGMP Proxy
IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation
DHCP Client List Server |
| DDNS | TP-Link
NO-IP DynDNS |
| Management | Tether App
Webpage |
| PHYSICAL | |
| Dimensions (W×D×H) | 10.7 × 5.8 × 1.9 in
(272.5 × 147.2 × 49.2 mm) |
| Package Contents | Wi-Fi Router Archer AX72
Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature : 0℃~40℃ (32℉ ~104℉)
Storage Temperature : -40℃~70℃ (-40℉ ~158℉) Operating Humidity : 10%~90% non-condensing |
