Description
Tplink Archer-AX73 Dubai

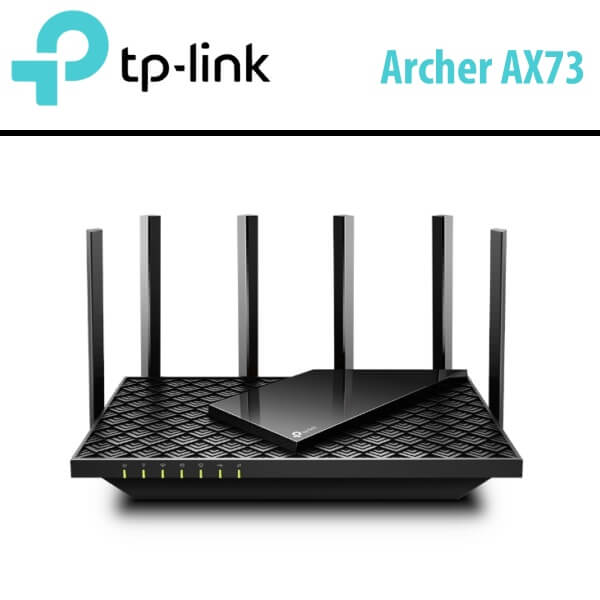

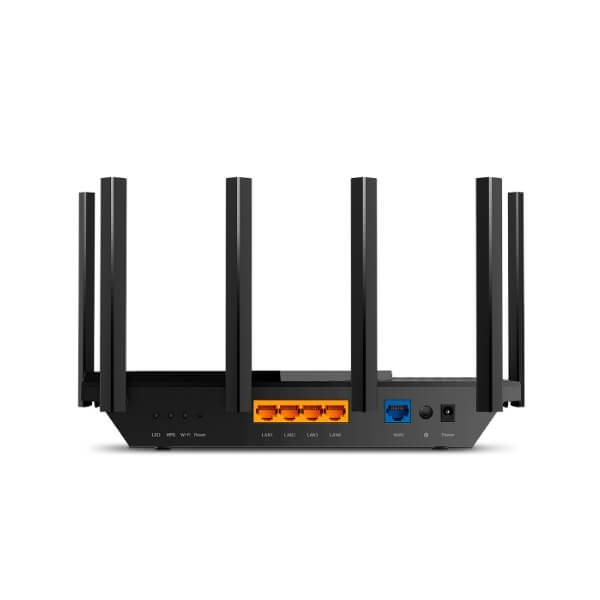

The Tplink Archer-AX73 Dubai is a modern Wi-Fi 6 Router that operates on both the 2.4 GHz and 5 GHz bands. It supports the latest 802.11ax WiFi standard and is also compatible with older standards such as 802.11a/b/g/n/ac. The router features Gigabit ports, 6 fixed antennas, and a USB port. With MU-MIMO technology, it can handle multiple devices simultaneously without compromising network performance. The router utilizes 4×4 MIMO in the 5 GHz band and 2×2 MIMO in the 2.4 GHz band. Thanks to the 802.11ax standard, it offers impressive transmission speeds of 4804 Mbps in the 5 GHz band and 574 Mbps in the 2.4 GHz band. On the back, you’ll find 4x Gigabit LAN ports, 1x Gigabit WAN port for connecting to the internet, and a powerful 3-core CPU with a clock speed of 1.5 GHz to ensure smooth routing.
Tplink Archer-AX73 Specifications
Wi-Fi 6 Advancement: Experience the cutting-edge Wi-Fi 6 technology, which offers remarkable high-speed performance, minimal latency, and the ability to connect numerous devices simultaneously within your home network. With support for 4T4R and HE160 technology in the 5 GHz band, you can achieve remarkable connection speeds of up to 4.8 Gbps.
Exceptional Speed for Flawless 8K Transmission: Benefit from Wi-Fi speeds that soar up to 5,400 Mbps, enabling you to seamlessly engage in activities such as browsing the internet, streaming videos, and downloading content at high speeds.
Vast Wi-Fi Coverage: The Tplink Archer-AX73 Dubai ensures a reliable and stable connection across your entire residence. Equipped with a potent FEM chip, six antennas, Beamforming, and 4T4R technology, it blankets your living space with ample Wi-Fi coverage for all your devices.
Seamless Connectivity for 200 Devices: Effortlessly cater to numerous devices, whether it’s for broadcasting or online gaming. Leverage advanced technologies like OFDMA, enabling various devices to optimize a single stream for enhanced performance, and MU-MIMO, which empowers multiple devices to utilize multiple streams concurrently. This feature secures the longevity of your home Wi-Fi network and facilitates the seamless connection of multiple devices simultaneously.
Enhanced Heat Dissipation: The innovative design of the top panel features an array of perforations, facilitating superior heat distribution. This thoughtful engineering ensures that the router operates at its peak performance without overheating concerns.
TP-Link HomeShield Protection: Elevate your security with TP-Link HomeShield, safeguarding all connected devices from potential threats such as DDoS attacks, malicious websites, and port-level intrusions. This comprehensive security measure ensures the utmost protection and privacy of your personal data.
Swift Connections and Effortless Sharing: Leverage the Gigabit Ethernet ports to unlock maximum wired network bandwidth. Seamlessly link computers, Smart TVs, gaming consoles, and external storage devices via the USB 3.0 port for rapid and dependable connections. This port not only streamlines media file sharing and enables private cloud creation but also supports 3G/4G USB modem connections.
Simplified Configuration: Setting up the Tplink Archer-AX73 Dubai is a breeze, taking just minutes through the intuitive web interface or the user-friendly Tether app, available for both Android and iOS platforms.
Technical Details
Features / filters | |
LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
Maximum wireless transmission speed | 5400 Mb/s |
Number of LAN ports | 4x 10/100/1000BaseTX (RJ45) |
Number of WAN ports | 1x 10/100/1000BaseTX (RJ45) |
Operating frequency | Dual Band (2.4GHz, 5GHz) |
Wireless network standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11b, IEEE 802.11g, IEEE 802.11ax, |
Access Control List (ACL) | Y |
Antenna gain | Under 10dbi |
Antenna type | Outside, External, |
Antennas quantity | 6 |
Application | Indoor |
Built-in modem | None |
Built-in processor | Y |
Cables included | LAN (RJ-45) |
Cabling technology | 10/100/1000Base-T(X) |
Depth | 147.2 |
Detachable antennas | No |
Device type | Wireless router |
DHCP client | Y |
DMZ support | Y |
DoS attack prevention | Y |
Dynamic DNS (DDNS) | Y |
Ethernet LAN | Y |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 10,100,1000 |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet WAN | Y |
Filtering | Y |
Firewall | Y |
Harmonized System (HS) code | 85176990 |
Height | 49.2 |
IP address filtering | Y |
MAC address filtering | Y |
Management | Dedicated application, By web browser, |
MIMO Type | MU-MIMO 4×4 |
Modulation | 1024-QAM,OFDM |
MU-MIMO technology | Y |
Network address translation (NAT) | Y |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g |
On/off switch | Y |
Operating relative humidity (H-H) | 10 – 90 |
Operating temperature (T-T) | 0 – 40 |
Parental control | Y |
Port forwarding | Y |
Port triggering | Y |
Power source type | DC |
Processor cores | 3 |
Processor frequency | 1500 |
Product colour | Black |
Product type | Portable router |
Quality of Service (QoS) support | Y |
Quick installation guide | Y |
Reset button | Y |
Security algorithms | WPA,WPA-Enterprise,WPA2,WPA2-Enterprise,WPA3 |
Stateful Packet Inspection (SPI) | Y |
Storage relative humidity (H-H) | 5 – 90 |
Storage temperature (T-T) | -40 – 70 |
Support Samba (storage) | Y |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Type of case | Plastic |
Type of device power supply | Power supply |
Universal Plug and Play (UPnP) | Y |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB port | 1x USB, Y, |
WAN connection type | RJ-45 |
Web-based management | Y |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
Width | 272.5 |
WiFi encryption | WEP, WPA/WPA2, WPA3, |
Wireless Distribution System (WDS) bridge | Y |
WLAN data transfer rate (first band) | 4804 |
WLAN data transfer rate (max) | 5400 |
WLAN data transfer rate (second band) | 574 |
WPS push button | Y |
Wireless device | |
Standards | · IEEE 802.11ax/ac/n/a 5 GHz
· IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi network speeds | · 5 GHz : 4804 Mbps (802.11ax, HE160)
· 2.4 GHz : 574 Mbps (802.11ax) |
WiFi network coverage | · 6 powerful antennas integrated into the device
· Beamforming · High power front-end module · 4T4R |
WiFi network performance | · Two bands
· MU-MIMO 4×4 · OFDMA · Airtime Fairness · DFS · 6 streams |
Modes of operation | · Router mode
· Access point (AP) mode |
Hardware features | |
Processor | Three-core processor clocked at 1.5 GHz |
Ethernet Ports | · 1 Gigabit WAN port
· 4 Gigabit LAN ports |
Supported USB types | 1 USB 3.0 port
Supported partition types : Supported features : · Apple Time Machine · FTP server · Media server · Samba server |
Buttons | · On/Off. Wi-Fi
· Power on/off · On/Off LEDs · WPS · Reset |
Power | 12 V ⎓ 2.5 A |
Transmission security | |
WiFi network encryption | · WPA
· WPA2 · WPA3 · WPA/WPA2-Enterprise (802.1x) |
Network protection | · SPI firewall
· Access control · IP and MAC address binding · ALG · HomeShield |
Guest Network function | · 5 GHz guest network
· 2.4 GHz guest network |
VPN server | · OpenVPN
· PPTP |
Software | |
Protocols | · IPv4
· IPv6 |
Service packages | HomeShield |
OneMesh | OneMesh helps you create a flexible network that, when combined with TP-Link OneMesh products, covers the entire footprint of your home without having to replace your existing devices or buy a completely different solution to support your Wi-Fi ecosystem. |
Parental controls | · User profiles
· Content filtering library · Family Time · Sleep time · Access blocking · Rewarding with extra access time · Statistics on time spent online · Suspension of internet access · Weekly and monthly reports |
WAN types | · Dynamic IP Address Allocation
· Static IP address assignment · PPPoE · PPTP · L2TP |
Quality of Service | QoS priorities for devices |
Cloud service | · Automatic firmware updates
· TP-Link ID · DDNS |
NAT redirection | · Port Forwarding
· Port Triggering · DMZ · UPnP · Virtual servers |
IPTV | · IGMP Proxy
· IGMP Snooping · Bridge · VLAN tagged |
DHCP | · Address Reservation
· List of DHCP clients · Server |
DDNS | · TP-Link
· NO-IP · DynDNS |
Management | · Tether application
· Website |
Appearance and contents of the package | |
Dimensions (S×G×W) | 272.5 × 147.2 × 49.2 mm. |
Package contents | · Archer AX73 Wi-Fi Router
· Power adapter · RJ45 Ethernet cable · Quick installation guide |
Other | |
System requirements | · Internet Explorer 11 , Firefox 12.0 , Chrome 20.0 , Safari 4.0 or other browser with JavaScript enabled
· Cable modem or DSL (if required) · Contract with an Internet service provider (Internet access) |
Certificates | FCC, CE, RoHS |
Work environment | · Permissible operating temperature : 0℃~40℃ (32℉ ~104℉)
· Permissible storage temperature : -40℃~70℃ (-40℉ ~158℉) · Permissible air humidity : 10%~90%, non-condensing · Permissible storage humidity : 5%~90%, non-condensing |
