Tplink CPE210 Dubai

Tplink CPE210 Dubai

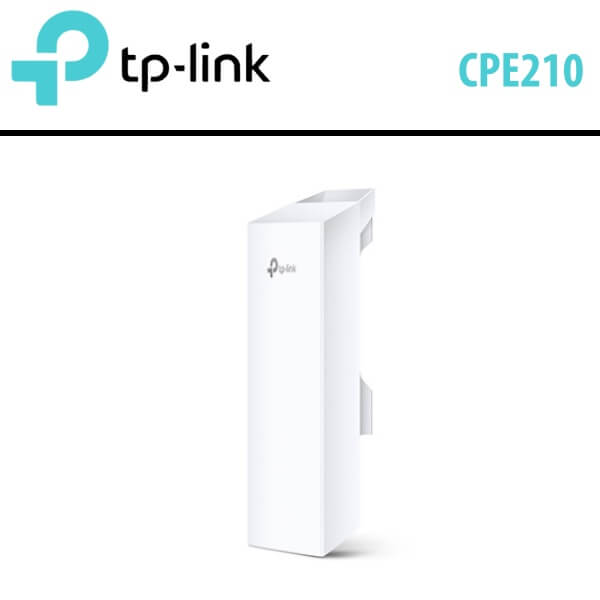

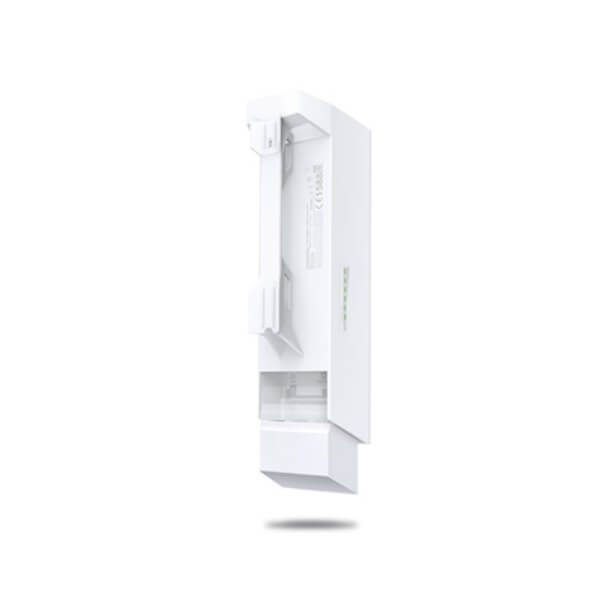

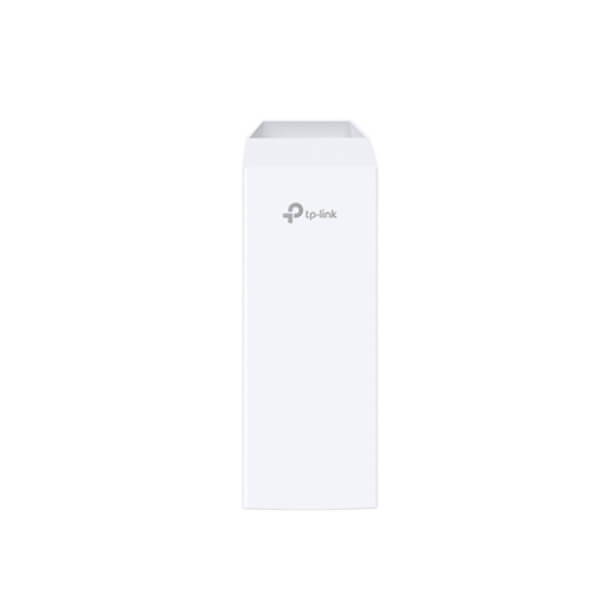

The Tplink CPE210 Dubai 2.4 GHz N-300 9 dBi Outdoor Customer-Premises Equipment from TP-Link is a versatile solution for enhancing network performance and coverage. This CPE is built with a weatherproof enclosure that includes robust features.

Category:

Description

Tplink CPE210 Dubai

The Tplink CPE210 Dubai 2.4 GHz N-300 9 dBi Outdoor Customer-Premises Equipment from TP-Link is a versatile solution for enhancing network performance and coverage. This CPE is built with a weatherproof enclosure that includes robust features like 15 KV ESD protection and 6,000 V lightning protection, making it highly resilient even in extreme weather conditions.

The Tplink CPE210 Dubai is encased in durable outdoor ASA stabilized plastic and holds an IPX5 waterproof certification. Beneath its rugged exterior, you’ll discover a Fast Ethernet Passive PoE input, eliminating the need for an extra PoE adapter. Additionally, it features a grounding terminal for added safeguarding against lightning strikes.

Once installed, you can leverage IEEE 802.11b/g/n networking standards to connect virtually any Wi-Fi-enabled device to the internet. Operating on the 2.4 GHz frequency, the Tplink CPE210 Dubai supports a maximum data transfer rate of up to 300 Mbps, with a transmit power of up to 27 dBm. You can configure the CPE to meet a wide range of networking requirements, thanks to its support for AP, client, bridge, repeater, AP router mode, and AP client (WISP client) operation modes.

Features

  • Tplink CPE210 Dubai has built-in 9 dBi 2×2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 27 dBm / 500 mw
  • System-level optimizations for more than 9 mi+ (15 km+) long range wireless transmission
  • TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for PTMP applications
  • Tplink CPE210 Dubai is integrated with a centralized Management System – Pharos Control
  • AP / Client / Repeater / Bridge / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE Adapter supports up to 200 feet (60 meter) Power over Ethernet deployment and allows the device to be reset remotely

Technical Specs

Wireless
Wireless Frequency Bands 2.4 GHz Single-Band
Number of Antennas 1
MU-MIMO Support 2 x 2
WLAN Mode Wi-Fi 4 (802.11n)
Sensitivity -76 to -96 dBm
Antenna Gain 9 dBi
Transmit Power 26 to 27 dBm
Supported Protocols
  • MAC Filtering
  • SSID
Antenna Placement Internal
Performance
Throughput 300 Mb/s Total
2.4 GHz : 300 Mb/s
Interface
Ports 1 x 10/100 Mb/s Ethernet (RJ45) PoE (Type 1)
USB Sharing Support No
Security
Guest Network Support No
Wireless Security WEP, WPA, WPA2
VPN Protocol None
Firewall Support None
Hardware
RAM 64 MB
Storage Capacity 8 MB
Supported IEEE Standards 802.11b, 802.11g, 802.11n
Electrical
DC Input Power 16 to 27 VDC
Power Consumption 10.5 W
Environmental
Operating Temperature -22 to 158°F / -30 to 70°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 10 to 90%
Storage Humidity 5 to 95%
General
IP Rating IPX5
Certifications FCC
Dimensions 8.8 x 3.1 x 2.4″ / 224 x 79 x 60 mm
Packaging Info
Package Weight 1.67 lb
Box Dimensions (LxWxH) 10.7 x 5.3 x 4.15″
