Tplink CPE220 Dubai

Tplink CPE220 Dubai

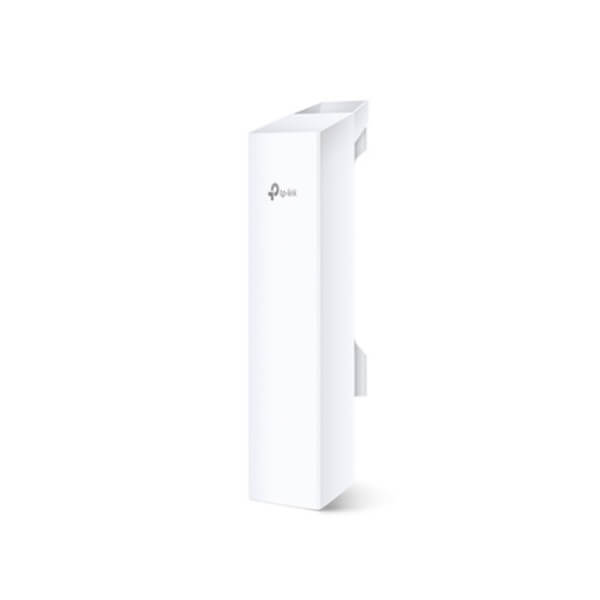

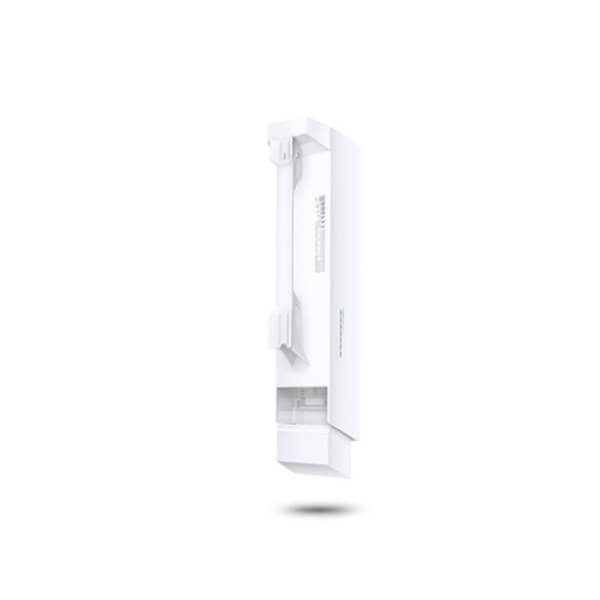

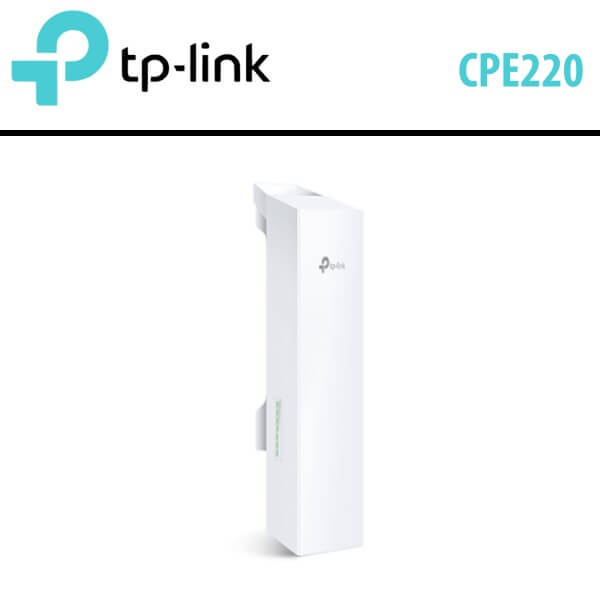

The Tplink CPE220 Dubai is a 2.4GHz Outdoor Radio which comes with a built-in 12dBi 2×2 dual-polarized directional MIMO antenna, and is designed to provide an adjustable transmission power from 0 to 30dBm/1000mw.

Category:

Description

Tplink CPE220 Dubai

The Tplink CPE220 Dubai is a 2.4GHz Outdoor Radio which comes with a built-in 12dBi 2×2 dual-polarized directional MIMO antenna, and is designed to provide an adjustable transmission power from 0 to 30dBm/1000mw. It also provides a system-level optimizations for more than 13km long range wireless transmission, proving to be a highly reliable network solution. The Tplink CPE220 Dubai is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. It is also coupled with user-friendly design, hence an ideal choice for both business and home users.

Features

  • Tplink CPE220 Dubai comes with a built-in 12dBi 2×2 dual-polarized directional MIMO antenna
  • Tplink CPE220 Dubai offers an adjustable transmission power from 0 to 30dBm/1000mw
  • System-level optimizations for more than 13km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralized Management System – Pharos Control
  • AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
  • Tplink CPE220 Dubai comes with a passive PoE Adapter which supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Technical Specifications :

HARDWARE FEATURES :
PROCESSOR Qualcomm Atheros 560MHz CPU, MIPS 74Kc
MEMORY 64MB DDR2 RAM, 8MB Flash
INTERFACE Has One (1) 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
One (1) 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
Also has One (1) Grounding Terminal, and One (1) Reset Button
POWER SUPPLY Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range : 16-27VDC
POWER CONSUMPTION 10.8 Watts Max
Note : When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.
DIMENSIONS ( W X D X H ) 11×3.1×2.1 inch (276×79×60 mm)
ANTENNA TYPE Built-in 12dBi 2×2 Dual-polarized Directional Antenna
Beam Width : 60° (H-Plane) / 30° (E-Plane)
Note : For more details, please refer to datasheet
PROTECTION 15KV ESD Protection
6KV Lightning Protection
ENCLOSURE Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES :
WIRELESS STANDARDS IEEE 802.11b/g/n (with Pharos MAXtream disabled)
PROPRIETARY PROTOCOL TDMA Mode (with Pharos MAXtream enabled)
WIRELESS SPEEDS Up to 300Mbps (40MHz,Dynamic)
FREQUENCY 2.4GHz
TRANSMISSION POWER 30dBm/1000mw (Adjustable power by 1dBm)
POE ADAPTER FEATURES
DIMENSIONS(W X D X H) 85.8×43.9×31.9 mm
INTERFACES 1 AC Jack with Earth Ground

1 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data)

1 10/100Mbps/1000Mbps Shielded Ethernet Port (Data)

BUTTON Remote Reset Button
POWER STATUS LEDS Green
INPUT 100-240VAC, 50/60Hz
OUTPUT 24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
EFFICIENCY >80%
CERTIFICATIONS CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
CERTIFICATION CE, FCC, RoHS, IPX5
PACKAGE CONTENTS Outdoor Wireless CPE

24V 1A Passive PoE Adapter

Pole Mounting Straps

AC Power Cord

Installation Guide

SYSTEM REQUIREMENTS Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7,
MAC OS, NetWare, UNIX or Linux.
Note : We recommend you to use one of following Web browsers for an improved user
experience : Google Chrome, Safari, and Firefox. IE browsers are not recommended.
ENVIRONMENT Operating Temperature : -30°C~70°C (-22℉~158℉)

Storage Temperature : -40℃~70℃ (-40℉~158℉)

Operating Humidity : 10%~90% non-condensing

Storage Humidity : 5%~95% non-condensing
