Description

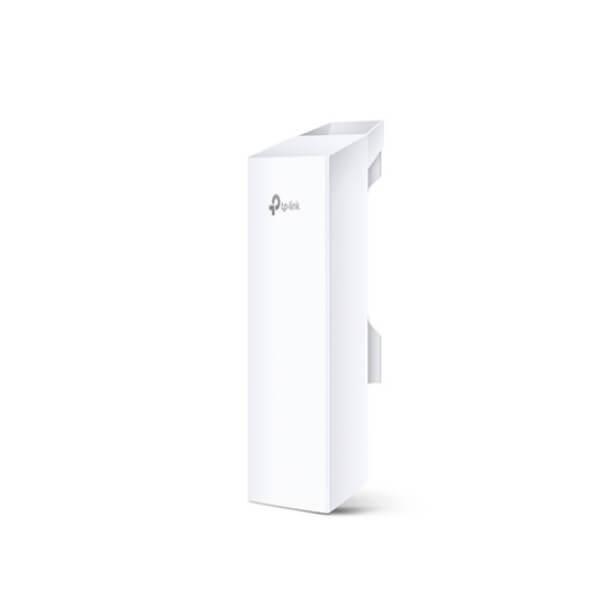

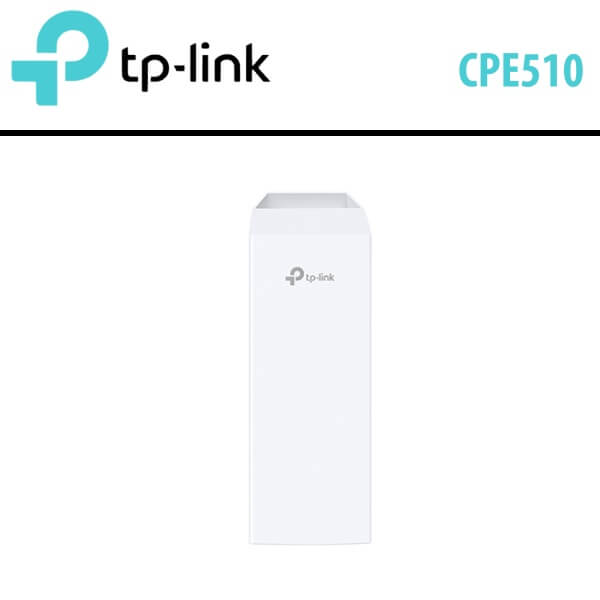

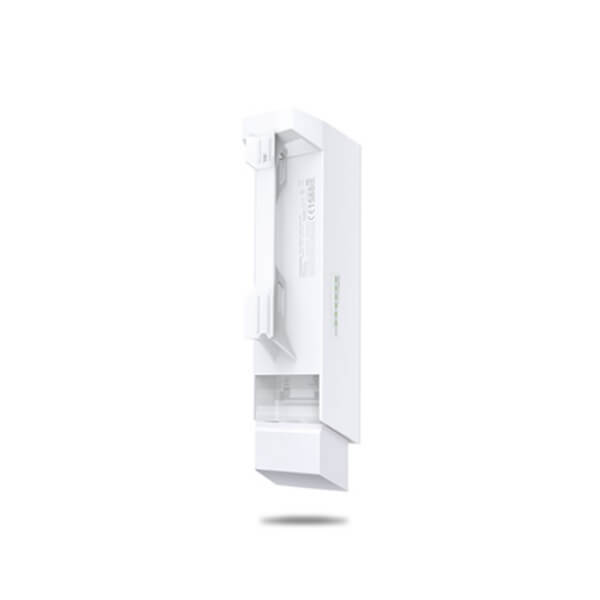

Tplink CPE510 Dubai

The Tplink CPE510 Dubai is an outdoor radio operating at 5GHz, boasting a speedy 300Mbps and a powerful 13dBi antenna. It’s engineered to expand wireless network coverage in outdoor settings, offering an affordable and versatile solution. With its integrated centralized management application, it’s adaptable for various scenarios, including point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage applications. Its combination of professional-grade performance and user-friendly design makes the Tplink CPE510 Dubai an excellent choice for both businesses and home users alike.

Key Features:

• Incorporates a 13dBi 2×2 dual-polarized directional MIMO antenna
• Tplink CPE510 Dubai offers adjustable transmission power ranging from 0 to 23dBm/200mw
• System-level optimization for robust long-range wireless transmission exceeding 15km
• Utilizes TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology, enhancing performance in throughput, capacity, and latency – especially well-suited for PTMP applications
• Includes the built-in centralized Management System – Pharos Control, providing flexibility for point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage applications
• Supports multiple operation modes: AP, Client, Bridge, Repeater, AP Router, AP Client Router (WISP) • Housed in an outdoor-stabilized enclosure with IPX5 waterproof certification
• Features dual Ethernet ports and an integrated grounding terminal
• Offers robust protection with 6KV Lightning Protection and 15KV ESD Protection
• Comes with a passive PoE Adapter supporting power over Ethernet deployment up to 60 meters (200 feet) and remote device reset capability
• Ensures data security through WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption
• Allows for bandwidth selection of 5/10/20/40MHz
• Provides useful tools such as Throughput Monitor, Spectrum Analyzer, Speed Test, and Ping tools for network monitoring
• Simplifies antenna alignment with wireless signal quality indicators accessible through the Web interface.

Technical Specifications :

HARDWARE FEATURES

• Processor : Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
• Memory : 64MB DDR2 RAM, 8MB Flash
• Interface :
  • 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
  • 1 Grounding Terminal
  • 1 Reset Button
• Power Supply :
  • Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  • Voltage range : 16-27VDC
• Power Consumption : 10.5 Watts Max
  Note : When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
• Dimensions ( W x D x H ) : 224 x 79 x 60 mm
• Antenna Type :
  • Built-in 13dBi 2×2 Dual-polarized Directional Antenna
  • Beam Width : 45° (H-Plane) / 30° (E-Plane)
• Protection :
  • 15KV ESD Protection
  • 6KV Lightning Protection
• Enclosure :
  • Outdoor ASA stabilized plastic material
  • IPX5 waterproof Certification

WIRELESS FEATURES

• Wireless Standards : IEEE 802.11a/n (with Pharos MAXtream disabled)
• Proprietary Protocol : TDMA Mode (with Pharos MAXtream enabled)
• Wireless Speeds :
  • Up to 300Mbps (40MHz,Dynamic)
  • Up to 144.4Mbps (20MHz,Dynamic)
  • Up to 72.2Mbps (10MHz,Dynamic)
  • Up to 36.1Mbps (5MHz,Dynamic)
• Frequency : 5.15~5.85GHz
  Note : Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
• Transmission Power : 23dBm/200mw (Adjustable power by 1dBm)

Note : Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES

• Wireless Configurations :
• Pharos MAXtream TDMA Technology
• 802.11a/n Modes
• Selectable Channel Width : 5/10/20/40MHz
• Automatic Channel Selection
• Transmission Power Control
• Dynamic Frequency Selection (DFS)
• WDS Enable/Disable
• Security : WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
• SSID Broadcast Enable/Disable
• Multi-SSID with VLAN Tagging (AP mode only)
• Distance/ACK Timeout Setting
• Wireless MAC Address Filter
• Wireless Advanced :
  • Beacon Interval/RTS Threshold/Fragmentation
  • Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
• Management :
  • Discovery and Remote Management via Pharos Control application
  • HTTP/HTTPS Web-based management
  • System Log
  • SNMP Agent(v2c)
  • Ping Watch Dog
  • Dynamic DDNS
  • SSH Server
• System Tools :
  • Wireless Signal Quality Indicators :
  • Signal Strength/Noise/Transmit CCQ/CPU/Memory
  • Monitors : Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
  • Spectrum Analyzer
  • Speed Test
  • Ping
  • Traceroute
• System-level optimizations :
  • Optimized IGMP Snooping/Proxy for multicast applications
  • Hardware watch dog

POE ADAPTER FEATURES

• Dimensions(W x D x H) : 85.8*43.9*29.7mm
• Input Current : 0.4A Max @ 100VAC
• Input Voltage : 100VA~240VAC @ 50Hz~60Hz
• Output :
  • 24VDC, 1.0A Max
  • +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
• Efficiency : >84.28%
• Output Voltage : 24VDC(+4,5pins; -7,8pins)
• Power LEDs : Green
• Certifications : CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mar/PSE
• Interfaces :
  • 1 AC Jack with Earth Ground
  • 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
  • 1 10/100/1000Mbps Shielded Ethernet Port (Data)

OTHERS

• Certification : CE, FCC, RoHS, IPX5
• Package Contents :
  • Outdoor Wireless CPE
  • 24V 0.6A Passive PoE Adapter
  • Pole Mounting Straps
  • AC Power Cord
  • Quick Installation Guide
• System Requirements :
• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
  Note : We recommend you to use one of following Web browsers for an improved user experience : Google Chrome, Safari, and Firefox. IE browsers are not recommended.
• Environment :
  • Operating Temperature : -40°C~70°C (-40℉~158℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~95% non-condensing
