Tplink CPE610 Dubai

Tplink CPE610 Dubai

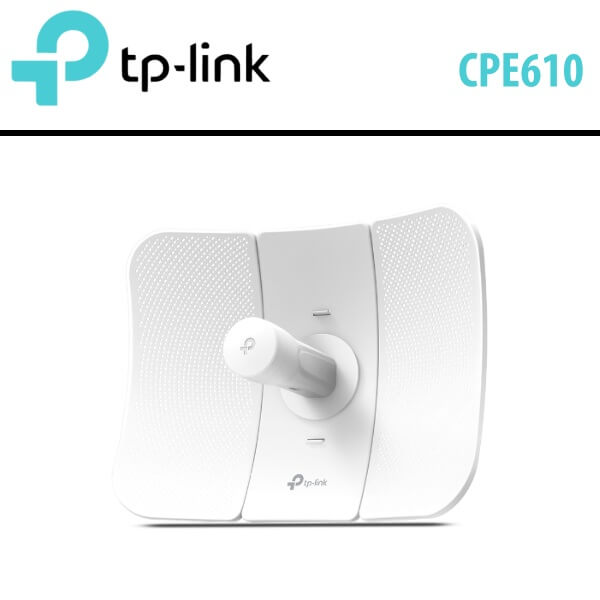

The Tplink CPE610 Dubai is a high-performance outdoor CPE access point, operating on the 5GHz frequency and providing an impressive data transfer speed of up to 300Mbps. Equipped with dual-polarized directional antennas boasting a 23dBi gain.

Category:

Description

Tplink CPE610 Dubai

The Tplink CPE610 Dubai is a high-performance outdoor CPE access point, operating on the 5GHz frequency and providing an impressive data transfer speed of up to 300Mbps. Equipped with dual-polarized directional antennas boasting a 23dBi gain, this access point is designed to significantly expand your wireless network coverage. It delivers both quality and affordability, making it an excellent choice for enhancing your network. Additionally, it supports an operating temperature range of 0 to 40 degrees Celsius and an operating humidity range of 10-90% (non-condensing).

Features

2×2 MIMO MAXtream TDMA :
23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission

Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission :
With 23dBi high-gain directional 2×2 MIMO Casse grain antenna and dedicated metal reflector, the Tplink CPE610 Dubai provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps1 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.

Stable Structural Design and Flexible Installation :

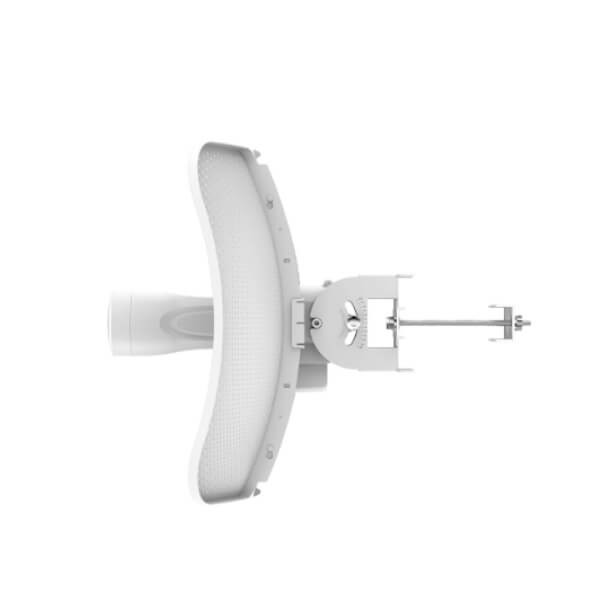

Snap-lock parts make assembly simple and convenient. Pole mount kits and the freedom of three-axis alignment facilitate flexible installation. Sturdy design of the Tplink CPE610 Dubai ensures stability in windy conditions.

Compact and Lightweight Packaging :
Small and lightweight boxes benefit shipping, logistics and retail.

TECHNICAL SPECIFICATIONS

Brand TP-Link
Wireless Wireless : IEEE 802.11a/n
Configuration Network : WAN : Static, Dynamic, PPPoE, L2TP, PPTP

LAN : Static, Dynamic, DHCP

Forwarding : ALG, UPnP, Virtual Server, Port Trigger

Security : SPI Firewall, Ping Forbidden, DoS Protection, Access Control & Static Routing

Bandwidth Control, IP & MAC Binding & Wireless : Pharos Maxterm TDMA Technology

Selectable Channel Width : 5, 10, 20, 40 MHz, Auto Channel Selection & Transmit Power Control

Dynamic Frequency Selection

WDS Enable, Disable, Security : WPA, WPA2, WPA-PSK, WPA2-PSK Encryption

64, 128, 152-bit WEP Encryption & SSID Broadcast Enable, Disable

Multi-SSID with VLAN Tagging

Distance, ACK Timeout Setting & Wireless MAC Address Filter

Wireless Advanced & Beacon Interval, RTS Threshold, Fragmentation Threshold, DTIM Interval, AP Isolation, Short GI, Wi-Fi Multimedia

Memory 64 MB DDR2 RAM & 8 MB Flash
Enclosure Material : Outdoor PC Stabilized Plastic & Weatherproof : IP65 Water & Dust Proof Design
System Tools : Wireless Signal Quality Indicators, Signal Strength, Noise, Transmit CCQ, CPU, Memory, Monitors : Throughput, Stations, Interfaces, ARP, Routes, WAN, DHCP, Spectrum Analyzer, Speed Test, Ping & Traceroute
Suitable For Outdoor
Power Supply Passive Power over Ethernet via LAN

16-27 V DC

Colour Power Status LEDs : Green
Input 100-240 V AC & 50-60 Hz
Package Contents Outdoor Wireless CPE

24 V 0.5 Amp Passive POE Adapter

Pole Mounting Straps

AC Power Cord & Installation Guide

Efficiency >84.29%
System Requirements Windows : 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare & UNIX or Linux
Output 24 V DC, 0.5 Amp Max & +4, 5 Pins & -7, 8 Pins
Power Transmission Max. 25 dBm
Protocol Proprietary : TDMA Mode
Protection 15 kV ESD Protection & 6 kV Lightning Protection
Item Code CPE610
Storage Temperature -40 to 70°C
Operating Temperature 0 to 40°C
Speed Wireless :

Upto 300 Mbps

Upto 144.4 Mbps

Upto 72.2 Mbps & Upto 36.1 Mbps

Storage Humidity 5-90% (Non-Condensing)
Warranty 3 Years Warranty
Dimensions 366x280x207 mm

POE Adapter : 85.8×43.9×29.7 mm

Remote Management Protocol Discovery & Remote Management via Pharos Control application, HTTP/HTTPS Web-Based Management, System Log, SNMP Agent, Ping Watch Dog, Dynamic DDNS & SSH Server
Processor Qualcomm 560MHz CPU & MIPS 74KC
Certification CE, FCC, UL, IC, GS, PSB, C-tick, SAA, S-Mark & KC-mark

CE, FCC, IC, RoHS & IP65

Number of Buttons Remote Reset Button
Antenna Type Gain : 23 dBi & Beamwidth : 9°Azimuth, 7°Elevation
Operating Humidity 10-90% (Non-Condensing)
