Tplink CPE710 Dubai

Tplink CPE710 Dubai

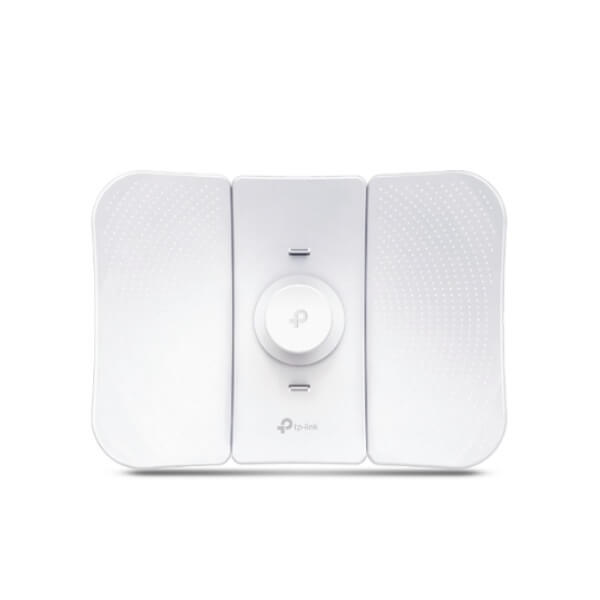

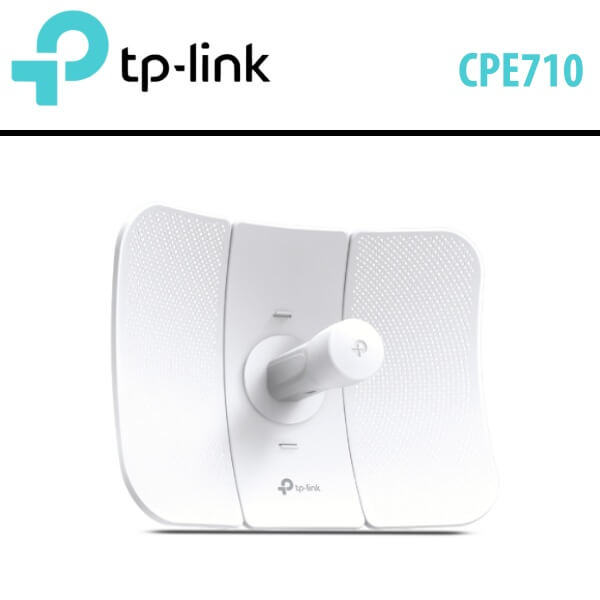

The Tplink CPE710 Dubai 5 GHz Wireless-AC867 Outdoor CPE from TP-Link. This device boasts a robust 23 dBi directional antenna, complete with a dedicated metal reflector and cutting-edge 2 x 2 MIMO technology. Operating on the 802.11ac.

Category:

Description

Tplink CPE710 Dubai

The Tplink CPE710 Dubai 5 GHz Wireless-AC867 Outdoor CPE from TP-Link. This device boasts a robust 23 dBi directional antenna, complete with a dedicated metal reflector and cutting-edge 2 x 2 MIMO technology. Operating on the 802.11ac standard, this outdoor CPE excels at overcoming interference, enabling high-speed data transfer of up to 867 Mb/s across the 5 GHz frequency spectrum.

Constructed primarily from durable PC stabilized plastic, fortified with wind resistance, and endowed with IP65-rated weatherproofing, this device operates reliably within a temperature range spanning from -40°F to 150°F. Moreover, it offers robust protection with 15kV ESD and 6kV lightning protection. The snap-lock design, coupled with the included three-axis pole-mounting kit, ensures a swift and hassle-free installation process.

This Tplink CPE710 Dubai is powered via passive PoE through its Gigabit Ethernet port and includes a convenient PoE adapter. For streamlined network configuration, management, and monitoring, you can count on the user-friendly Pharos Control centralized system.

Features

Pharos Control Software

The Pharos Control centralized management software is included with the Tplink CPE710 Dubai, and it helps users manage devices in their network from a single PC. Its functions include device discovery, status monitoring, firmware upgrading, and network maintenance through a web-based interface.

Professional-Standard 23 dBi Directional Antenna for Long-range Wireless Transmission

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the Tplink CPE710 Dubai provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

Stable Structural Design and Flexible Installation

Snap-lock parts make assembly simple and convenient. Pole mount kits and the freedom of three-axis alignment facilitate flexible installation. Sturdy design ensures stability in windy conditions

Specifications

Hardware
Ports 1 x 10/100/1000 Mbps Shielded Ethernet Port (PoE)
IEEE Standards IEEE 802.11a/n/ac
Frequency 5 GHz (Single-Band)
MIMO 2 x 2
Antenna Gain 23 dBi
Transmit Power 27 dBm
Antenna Beamwidth 9° (Azimuth) / 7° (Elevation)
Throughput 867 Mb/s (5 GHz)
Processor 750 MHz Qualcomm MIPS 74Kc
RAM 128 MB DDR2
Electrical
AC Power 100 to 240 VAC, 50/60 Hz
DC Power Input 16 to 27 VDC
Environmental
Operating Temperature -40 to 150°F / -40 to 70°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 10 to 90%
Storage Humidity 5 to 95%
Physical
Protection 15 KV ESD Protection
6 KV Lightning Protection
IP Rating IP65 Water and Dust Proof Design
Material Outdoor PC Stabilized Plastic
Metal
Dimensions 14.4 x 11.0 x 8.1″ / 366 x 280 x 207 mm
Warranty Limited Lifetime Warranty
Packaging Info
Package Weight 3.68 lb
Box Dimensions (LxWxH) 13.1 x 6.25 x 5.45″
