Tplink EAP110-Outdoor Dubai

Tplink EAP110-Outdoor Dubai

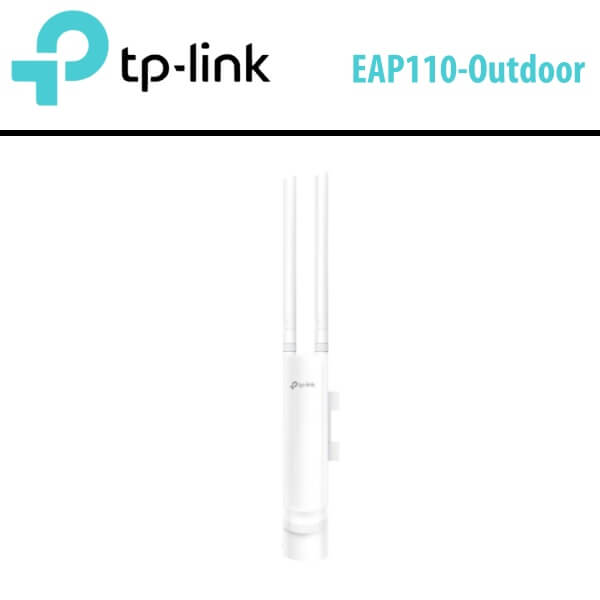

The Tplink EAP110-Outdoor Dubai is suitable for a variety of situations, whether they be indoor or outdoor. Equipped with strong transmission power and two high-gain omnidirectional antennas, the Tplink EAP110-Outdoor Dubai delivers reliable wireless coverage.

Category:

Description

Tplink EAP110-Outdoor Dubai

The Tplink EAP110-Outdoor Dubai is suitable for a variety of situations, whether they be indoor or outdoor. Equipped with strong transmission power and two high-gain omnidirectional antennas, the Tplink EAP110-Outdoor Dubai delivers reliable wireless coverage, reaching distances of up to 200 meters in outdoor environments. Additionally, the Omada Controller software allows small and medium-sized businesses to manage numerous indoor and outdoor access points from a centralized location.

Features

  • Built for outdoor Wi-Fi applications
  • Up to 300Mbps Wi-Fi with 2×2 MIMO technology
  • High transmission power and high gain antennas provide a long-range coverage area
  • Durable, weatherproof enclosure to withstand fair and foul weather
  • Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
  • Auranet Controller Software lets administrators easily manage hundreds of EAPs
  • Captive portal provides a convenient method for guest authentication
  • Supports management vlan for an enhanced network management

Technical Specs

HARDWARE FEATURES

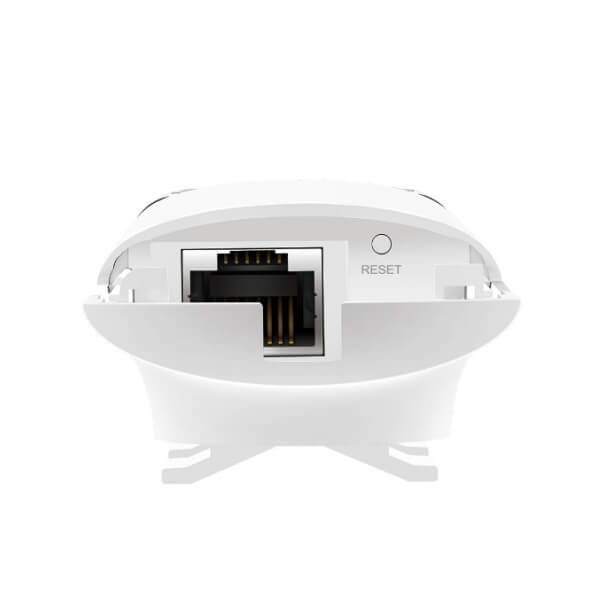

Interface 1 × Fast Ethernet (RJ-45) Port
(Support Passive PoE)
Button Reset
Power Supply 24V Passive PoE
(+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 3.1 W
Dimensions ( W x D x H ) 8.2 × 3.7 × 1.7 in.
(209 × 95 × 42.6 mm)
Antenna Type 2 × 3dBi External Omni waterproof
Weatherproof Enclosure IP65
Mounting Pole or wall mounting (mounting kit included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11n/g/b
Frequency 2.4GHz
Signal Rate 11n : Up to 300Mbps*

11g : Up to 54Mbps*

11b : Up to 11Mbps*

Transmit Power < 27dBm
Wireless Functions Multiple SSIDs (Up to 8 SSIDs)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (adjustable on 1 dBm step)

QoS (WMM)

Load Balance

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID, AP, and Client

Wireless Security Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

64/128/152-bit WEP / WPA / WPA2-Enterprise,

WPA-PSK / WPA2-PSK

MANAGEMENT
Omada App Yes
Centralized Management Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Cloud Access Yes. Requiring the use of OC300, OC200, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local and Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification FCC, RoHS
Package Contents 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor

Passive PoE Adapter

Power Cord

Mounting Kit

Waterproof Rubber Insert

Waterproof Antennas

Installation Guide

Environment Operating Temperature : -30℃~65℃ (-22℉~149℉)

Storage Temperature : -40℃~70℃ (-40℉~158℉)

Operating Humidity : 10%~90% non-condensing

Storage Humidity : 5%~90% non-condensing
