Description

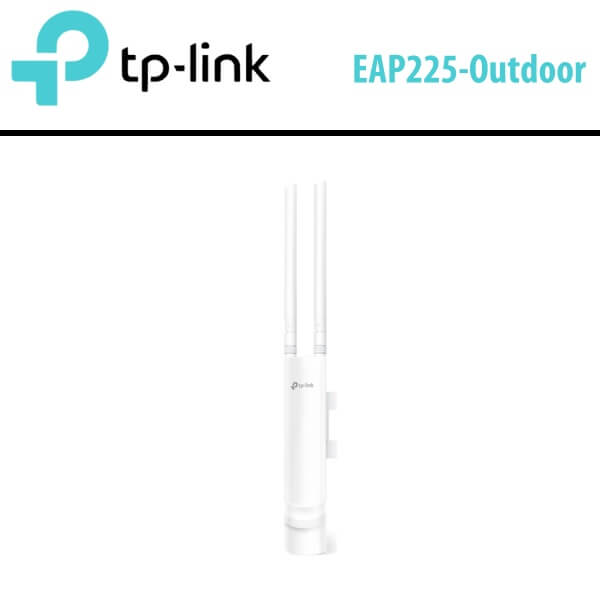

Tplink EAP225 Dubai
Expand the coverage of your outdoor Wi-Fi network effortlessly using the Tplink EAP225 Dubai Outdoor Wireless AC1200 Gigabit Indoor/Outdoor Access Point by TP-Link. This access point operates on the advanced 802.11a/b/g/n/ac Wi-Fi standards, functioning seamlessly across both the 2.4 GHz and 5 GHz frequencies. With support for data transfer speeds of up to 1200 Mb/s, it ensures swift connectivity.
Designed to excel in challenging conditions, this access point features a robust weatherproof housing, guaranteeing durability against the elements. Setting up is a breeze, facilitated by the inclusion of pole- and wall-mounting kits. Moreover, PoE connectivity negates the need for a separate power source, simplifying the installation process.
Once deployed, the free Omada Controller Software simplifies management not only for this access point but also for an array of other access points. The captive portal streamlines the guest authentication process, enhancing user experience.
Features
- Tplink EAP225 Dubai has a durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200 Mb/s with 2×2 MIMO technology
- Tplink EAP225 Dubai is fitted with high transmission power and high-gain antennas provide a long-range coverage area
- Free Omada Controller software enables administrators easily manage hundreds of EAPs
- Captive portal provides a convenient method for guest authentication
- Facebook Wi-Fi and SMS authentication help to boost your business
- Tplink EAP225 Dubai features an 802.3af/passive PoE (PoE adapter included) compatible and simple mounting design which allows for flexible deployment and convenient installation
Technical Specs
| Wireless | |
| Wireless Frequency Bands | 2.4 GHz, 5 GHz |
| Number of Antennas | 2 |
| MU-MIMO Support | 2 x 2 |
| WLAN Mode | Wi-Fi 5 (802.11ac) |
| Antenna Gain | 3 to 4 dBi |
| Transmit Power | 22 to 23 dBm |
| Supported Protocols | MAC Filtering
SNMPv1 SNMPv2c SSID WMM |
| Antenna Placement | External (Detachable) |
| Throughput | 1200 Mb/s Total
2.4 GHz : 300 Mb/s 5 GHz : 867 Mb/s |
| Interface | |

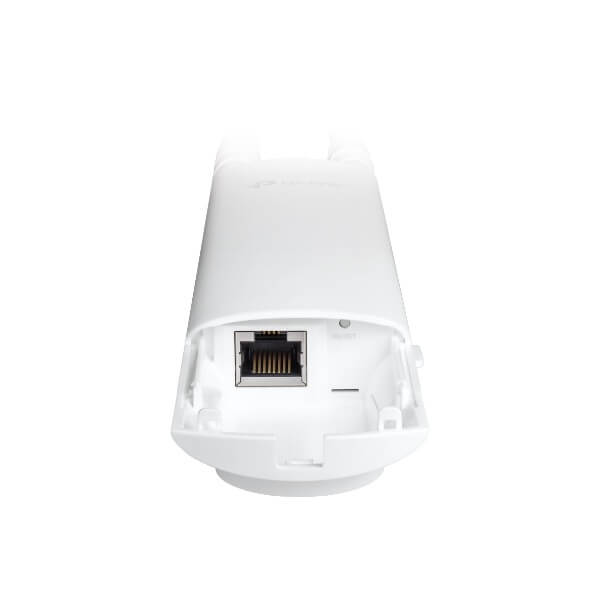

| Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| Security | |
| Wireless Security | WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
| Management | |
| Operation Modes | Access Point |
| Max SSIDs Supported | 16 |
| Hardware | |
| Supported IEEE Standards | 802.11ac, 802.11a, 802.11b, 802.11g, 802.11n, 802.1x, 802.3af |
| Electrical | |
| Power Consumption | 10.5 W |
| Environmental | |
| Operating Temperature | -22 to 158°F / -30 to 70°C |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 10 to 90% |
| Storage Humidity | 5 to 90% |
| General | |
| IP Rating | IP65 |
| Certifications | CE, FCC, RoHS *as per Manufacturer |
| Mount Options | Pole, Wall |
| Dimensions | 8.5 x 1.8 x 1.1″ / 215.9 x 45.7 x 27.9 mm |
| Packaging Info | |
| Package Weight | 1.4 lb |
| Box Dimensions (LxWxH) | 10.6 x 5.6 x 4″ |
