Description

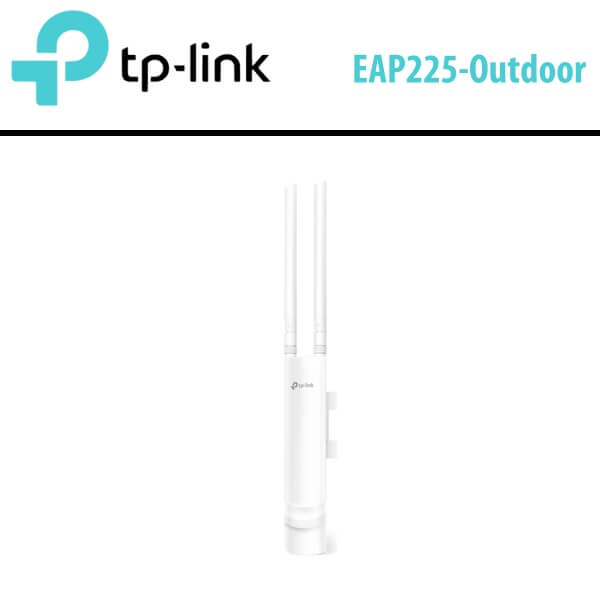

Tplink EAP225-Outdoor Dubai

The Tplink EAP225-Outdoor Dubai is meticulously crafted, featuring special antenna design, aesthetics, versatile power options, and installation methods, making it the perfect solution for various indoor and outdoor scenarios.

Equipped with two detachable omni-directional antennas, the Tplink EAP225-Outdoor Dubai offers the flexibility to attach additional antennas to meet your specific needs.

Thanks to its robust transmission power and high-gain omnidirectional antennas, the Tplink EAP225-Outdoor Dubai delivers reliable wireless coverage, extending beyond 200 meters at 2.4GHz and surpassing 300 meters at 5GHz in outdoor environments.

Key Features:

Sturdy, weather-resistant enclosure designed for outdoor Wi-Fi applications
Achieve speeds of up to 1200Mbps with 2×2 MIMO technology
Benefit from Omada Mesh Technology, facilitating wireless connections between APs for extended coverage, enhancing flexibility and convenience in wireless deployments
Seamless Roaming support ensures uninterrupted video streaming and voice calls as users transition between areas
Enjoy extensive coverage with high transmission power and high-gain antennas
Effortless management with free cloud centralized management and the Omada app, providing ultimate convenience
Establish a secure guest network, offering multiple authentication options such as SMS, Facebook Wi-Fi, vouchers, and robust wireless security technologies
Compatibility with 802.3af/Passive PoE (PoE Adapter Included) and a straightforward mounting design for flexible deployment and convenient installation

Technical Specs

HARDWARE FEATURES

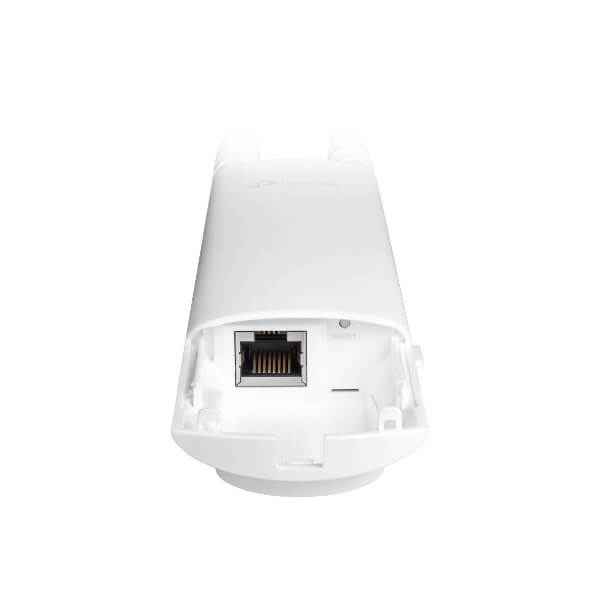

Interface	Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)
Button	Reset
Power Supply	802.3af/A PoE 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption	10.5W
Dimensions ( W x D x H )	8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)
Antenna	2.4GHz : 2 * 3dBi, 5GHz : 2 * 4dBi
Weatherproof Enclosure	IP65

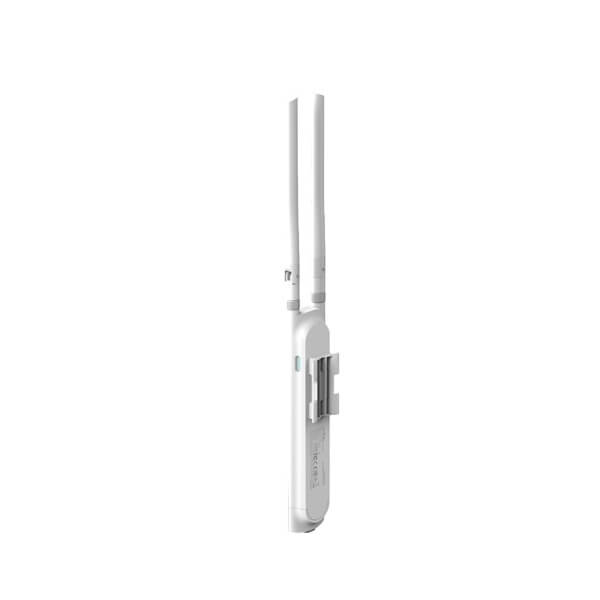

Mounting	Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/b/g/n/ac
Frequency	2.4GHz, 5GHz
Signal Rate	802.11ac : 5G : 6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G : 78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n : 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b : 1, 5.5, 11Mbps 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions	Multiple SSIDs（Up to 16 SSIDs, 8 for each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) MU-MIMO Airtime Fairness Beamforming Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support
Transmission Power	CE : <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP) FCC : <23 dBm (2.4 GHz), <22 dBm(5 GHz)
MANAGEMENT
Omada App	Yes
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller
Omada Controller Software	Yes
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c
System Logging Local/Remote Syslog	Yes
SSH	Yes
Web-based Management	Yes
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
OTHERS
Certification	CE、FCC、RoHS
Package Contents	AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point EAP225-Outdoor Power Adapter Mounting Kits Installation Guide
Environment	Operating Temperature : -30℃~70℃ (-22℉~158℉) Storage Temperature : -40℃~70℃ (-40℉~158℉) Operating Humidity : 10%~90% non-condensing Storage Humidity : 5%~90% non-condensing
