The Tplink EAP230-Wall Dubai enables concurrent internet access for multiple users. It achieves impressive speeds of up to 1200 Mbps across both the 2.4 GHz and 5 GHz wireless bands, ensuring seamless high-speed connectivity for a variety of devices.

Category:

Description

Tplink EAP230-Wall Dubai

The Tplink EAP230-Wall Dubai is meticulously engineered to cater to the networking demands of spaces featuring multiple partitioned rooms, such as hotels, offices, and dormitories. By installing a device in each room, it guarantees a dedicated, high-speed Wi-Fi connection for every individual user.

With its integration of 802.11ac wave 2 technology, the Tplink EAP230-Wall Dubai enables concurrent internet access for multiple users. It achieves impressive speeds of up to 1200 Mbps across both the 2.4 GHz and 5 GHz wireless bands, ensuring seamless high-speed connectivity for a variety of devices.

Highlighted Features:

  • Rapid Dual-Band Wi-Fi: Experience simultaneous speeds of 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band, achieving a total of 1,167 Mbps Wi-Fi speeds with MU-MIMO support.
  • Gigabit Connectivity: Benefit from 2 Gigabit Ethernet ports (1× uplink + 1× downlink) for fast and reliable wired connections.
  • Seamlessly Integrated into Omada SDN: Enjoy Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring for streamlined network administration.
  • Centralized Management: Manage your network with ease using cloud access and the Omada app, providing ultimate convenience.
  • Private Room Networks: Tailored to fulfill networking requirements in environments with multiple segregated rooms, such as hotels, offices, and dormitories.

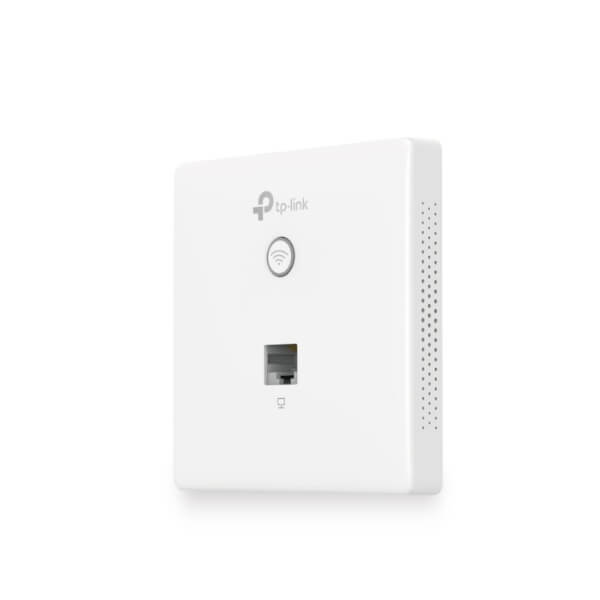

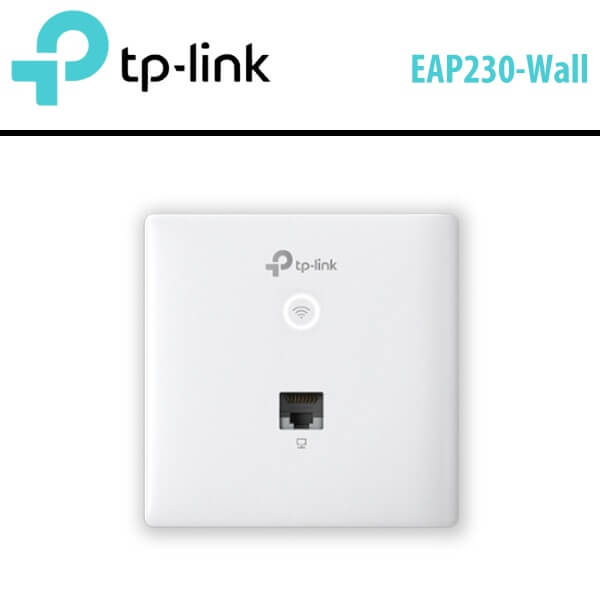

  • Sleek Design: The Tplink EAP230-Wall Dubai boasts an elegant, ultra-thin profile measuring just 11 mm, resembling the size and shape of a light switch or power outlet faceplate, ensuring a seamless fit in any room.
  • Effortless Installation and PoE Support: Facilitate installation with easy-mount construction, compatibility with 86 mm & EU standard junction boxes, and support for 802.3af/at PoE.
  • Secure Guest Network: Implement a secure guest network with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and a wide range of wireless security technologies.

Technical Specs

Hardware Features

Interface

  • Uplink : 1 x 10/100/1000 Mbps Ethernet Port
  • Downlink : 1 x 10/100/1000 Mbps Ethernet Port

Physical Security Lock

  • No

Button

  • LED/WiFi Button, RESET

Power Supply

  • 3af/802.3at PoE

Power Consumption

  • 7 W

Dimensions

  • 8 × 86.8 × 30.2 mm (3.4 × 3.4 × 1.2 in.)

Antenna

  • 2 Dual-Band Antennas
    • 4 GHz : 2 x 4 dBi
    • 5 GHz : 2 x 3.6 dBi

Mounting

  • Wall Plate Mounting

Hardware Watch Dog

  • Yes

Wireless Features

Wireless Standards

  • IEEE 802.11n/g/b/ac

Frequency

  • 4 GHz and 5 GHz

Signal Rate

  • 5 GHz : Up to 867 Mbps
  • 4 GHz : Up to 300 Mbps

Wireless Functions

  • 16 SSIDs (Up to 8 SSIDs on each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Load Balance
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
  • MU-MIMO
  • Band Steering
  • Beamforming

Wireless Security

  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Local LAN port based VLAN
  • Rogue AP Detection
  • 1X Support
  • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power

  • CE :
    • <20 dBm (2.4 GHz, EIRP)
    • <23 dBm (5 GHz, EIRP)

Management

Omada App

  • Yes

Centralised Management

  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300 – sold separately, see accessories tab)
  • Omada Hardware Controller (OC200 – sold separately, see accessories tab)
  • Omada Software Controller

Cloud Access

  • Through OC300 (sold separately), OC200 (sold separately), Omada Cloud-Based Controller, or Omada Software Controller

Email Alerts

  • Yes

LED ON/OFF Control

  • Yes

Management MAC Access Control

  • Yes

SNMP

  • v1,v2c

System Logging Local/Remote Syslog

  • Local/Remote Syslog

SSH

  • Yes

Web-based Management

  • HTTP/HTTPS

L3 Management

  • Yes

Multi-site Management

  • Yes

Other Spcifications

Certification

  • CE, RoHS

System Requirements

  • Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10

Environment

  • Operating Temperature : 0ºC – 40ºC (32ºF – 104ºF)
  • Storage Temperature : -40ºC – 70ºC (-40ºF – 158ºF)
  • Operating Humidity : 10% – 90% RH non-condensing
  • Storage Humidity : 5% – 90% RH non-condensing

Package Contents

  • 1 x TP-Link EAP230-Wall
  • 1 x Installation Guide
  • 1 x Mounting Screw
