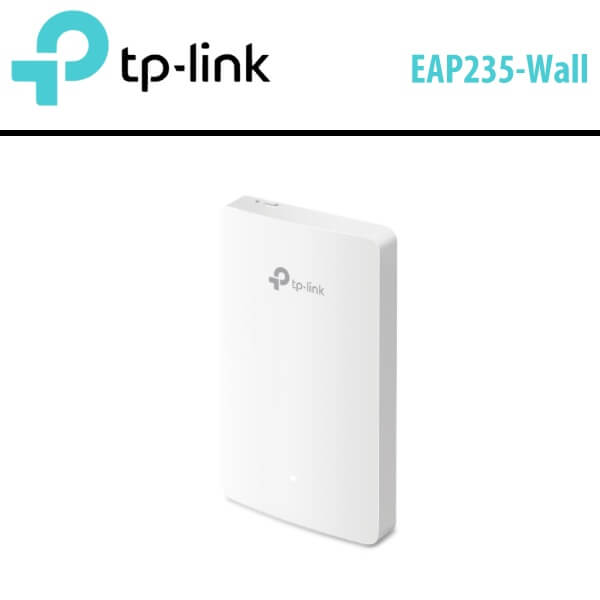

Tplink EAP235-Wall Dubai

Tplink EAP235-Wall Dubai

The Tplink EAP235-Wall Dubai is an Omada wireless MU-MIMO access point, ensuring compatibility with Omada for seamless control through the Omada app. To maintain a clear distinction between your professional and personal networks.

Category:

Description

Tplink EAP235-Wall Dubai

The Tplink EAP235-Wall Dubai is an Omada wireless MU-MIMO access point, ensuring compatibility with Omada for seamless control through the Omada app. To maintain a clear distinction between your professional and personal networks, you can effortlessly establish a guest network without the need for additional network cabling. Moreover, this access point supports Power over Ethernet (PoE) and boasts three Ethernet ports, ideal for connecting IP phones or IP cameras, among other devices. Please note that this access point exclusively operates with Power over Ethernet, necessitating a PoE adapter or a compatible switch for operation.

Highlighted Features:

  • Swift Dual-Band Wi-Fi: Experience concurrent speeds of 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band, delivering a total of 1,167 Mbps Wi-Fi speeds equipped with MU-MIMO support.
  • Four Gigabit Ports: Equipped with 4 Gigabit Ethernet ports (1× uplink + 3× downlink), featuring one downlink port supporting PoE pass-through, providing power for connected wired devices.
  • Seamlessly Integrated into Omada SDN: Enjoy the convenience of Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Manage your network effortlessly with cloud access and the Omada app, ensuring ultimate ease of use.
  • Sleek Aesthetic: The ultra-slim and unobtrusive design seamlessly blends into a variety of environments, including hotel rooms, hospitals, offices, dormitories, and more.
  • Effortless Installation and PoE Support: Facilitate installation with easy-mount construction, compatibility with 86 mm & EU & US standard junction boxes, and support for 802.3af/at PoE.
  • Secure Guest Network: Implement a secure guest network with a range of authentication options (SMS/Facebook Wi-Fi/Voucher, etc.) and comprehensive wireless security technologies.
  • Advanced Wireless Technologies: Enhance network performance with MU-MIMO, Band Steering, and Beamforming technologies, optimizing your wireless experience.

Technical Specifications

HARDWARE FEATURES
Interface Uplink : 1× 10/100/1000 Mbps Ethernet Port
Downlink : 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/802.3at PoE
Power Consumption 9.8 watts /24.4 watts (PoE Out Included)

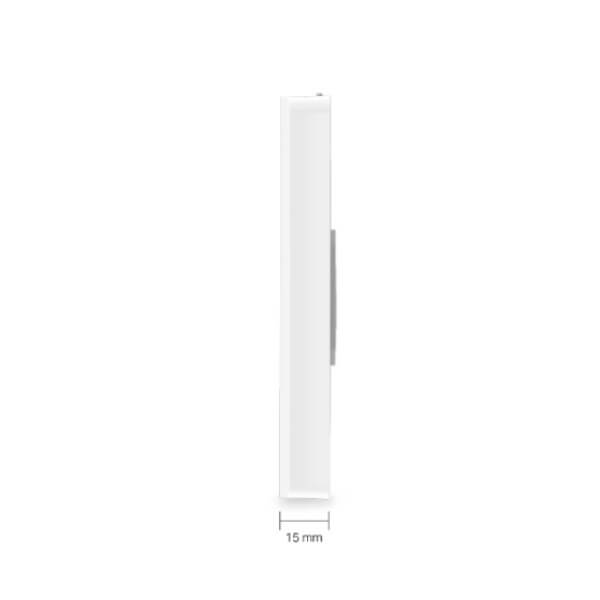

Dimensions 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna 2 Dual-Band Antennas

  • 2.4 GHz : 2× 4 dBi
  • 5 GHz : 2× 4 dBi
Mounting Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz : Up to 867 Mbps
2.4 GHz : Up to 300 Mbps
Wireless Functions
  • 16 SSIDs (Up to 8 SSIDs on each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO
  • Band Steering
  • Beamforming
  • Load Balance
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Local LAN port based VLAN
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power CE :

  • ≤20 dBm (2.4 GHz, EIRP)
  • ≤23 dBm (5 GHz, EIRP)FCC :
  • ≤21 dBm (2.4 GHz)
  • ≤21 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall
  • Installation Guide
  • Mounting Screw
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
