Tplink EAP245 Dubai

Tplink EAP245 Dubai

The Tplink EAP245 Dubai achieves speeds of up to 867Mbps on the 5GHz band and 300Mbps on the 2.4GHz band. Notably, WEP encryption is not supported in 802.11N mode.

Category:

Description

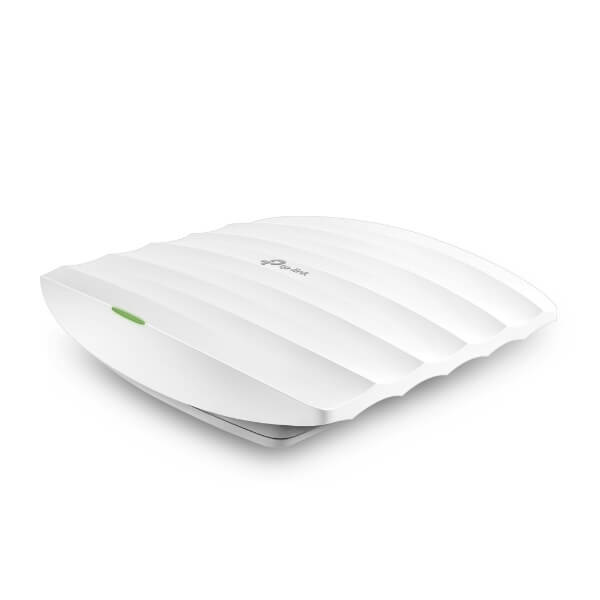

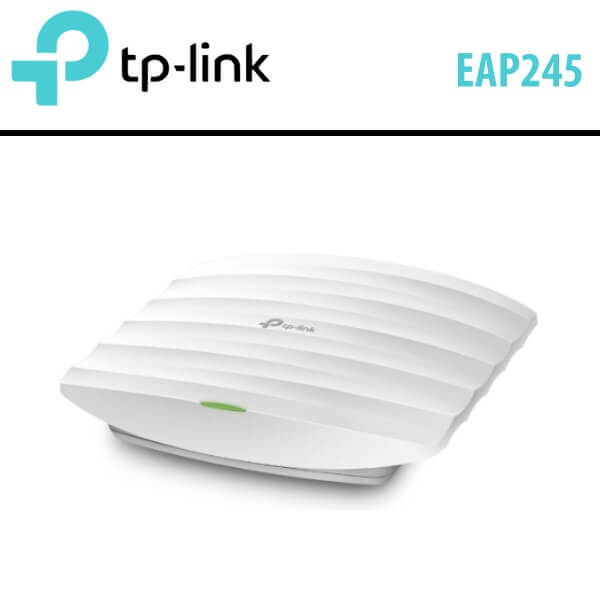

Tplink EAP245 Dubai

The Tplink EAP245 Dubai offers support for both 802.3af PoE and Passive PoE power supply options, enabling it to be powered through a PoE switch or the included PoE adapter. Its elegant design and straightforward mounting system simplify deployment by allowing easy attachment to walls or ceilings, enhancing flexibility.

Utilizing 802.11k/802.11v seamless roaming technology, the access point seamlessly switches clients to the strongest signal, ensuring uninterrupted connectivity even while moving. This seamless transition is particularly beneficial for maintaining smooth operation in sensitive applications like VoIP and video conferences.

In terms of performance, the Tplink EAP245 Dubai achieves speeds of up to 867Mbps on the 5GHz band and 300Mbps on the 2.4GHz band. Notably, WEP encryption is not supported in 802.11N mode or 802.11AC mode. If WEP is applied in 802.11N, 802.11ac, or 802.11N/AC mixed modes, clients might experience difficulties accessing the wireless network. Applying WEP in 802.11B/g/n mode (2.4GHz) or 802.11a/n mode (5GHz) could lead to lower transmission rates and reduced performance. The maximum wireless transmission rates are determined by the physical rates outlined in the IEEE standard 802.11.

Highlighted Features:

  • Achieve uninterrupted wireless connections with a high-speed wireless data rate of 1750Mbps.
  • Utilize the Free Controller Software to conveniently manage numerous EAPs from a centralized platform.
  • Support for Power over Ethernet (802.3at) ensures cost-effective and hassle-free installation.
  • Employ the Captive Portal feature for streamlined Wi-Fi guest authentication.
  • Effortless installation made possible by the straightforward mounting design suitable for walls or ceilings.
  • Apply per SSID rate limiting to control individual client bandwidth.
  • Ensure seamless network experiences for a large number of users in high-density business networks through Load Balancing.
  • Optimize connections by automatically steering dual-band devices to the broader 5GHz band via Band Steering.
  • Implement Access Control to manage client access within specified network segments.
  • Schedule automatic reboots for all APs at designated times using the Reboot Schedule feature.
  • Enhance WLAN security with WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication, and rogue access point detection.
  • Create multiple wireless networks for various user groups using the Multi-SSID feature.
  • Enjoy compatibility with a wide range of 802.11 a/b/g/n/ac products.
  • Choose from diverse operating modes, including managed AP and standalone AP, to suit different application scenarios.
  • Prioritize video and voice streams with QoS functionality, ensuring smoother performance for these services.

Tplink-EAP245-Technical Specs

Brand TP-LINK
Model EAP245
Standards and Protocols IEEE 802.11ac/n/g/b/a
Antenna Internal Omni

2.4GHz : 3 x 4dBi

5GHz : 3 x 4dBi

Frequency Range 2.4GHz and 5GHz
Wireless Transmit Power CE :

<20dBm(2.4GHz)

<23dBm(5GHz)

FCC :
<27dBm(2.4GHz & 5GHz)

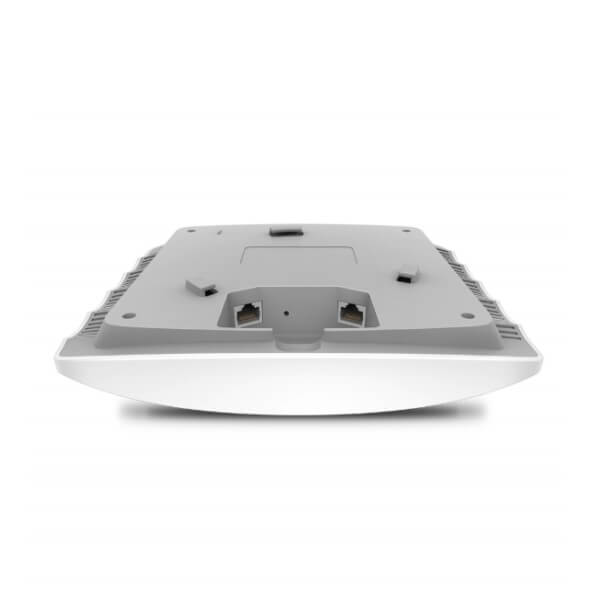

Interface x1 Gigabit Ethernet (RJ-45) Port Support IEEE802.3at PoE
Data Rates 5GHz : Up to 1300Mbps

2.4GHz : Up to 450Mbps

Wireless Security Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

64/128/152-bit WEP / WPA / WPA2-Enterprise,

WPA-PSK / WPA2-PSK

PoE 802.3af/A PoE

48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Supply PoE or External 12VDC / 1.5A Power Supply
Power Consumption Power Consumption : 12.7 W
Environment Operating Temperature : 0℃~40℃ (32℉~104℉)

Storage Temperature : -40℃~70℃ (-40℉~158℉)

Operating Humidity : 10%~90% non-condensing

Storage Humidity : 5%~90 % non-condensing

Certifications CE, FCC, RoHS
Package Contents AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245

Gigabit Passive PoE Adapter

Power Cord

Mounting Kits

Installation Guide
