Tplink EAP610-Outdoor Dubai

Tplink EAP610-Outdoor Dubai

The Tplink EAP610-Outdoor Dubai incorporates OFDMA and MU-MIMO technologies, significantly enhancing multi-user efficiency. This integration empowers the access point to facilitate simultaneous connections for numerous clients.

Category:

Description

Tplink EAP610-Outdoor Dubai

Leveraging the latest advancements in Wi-Fi 6 technology, the Tplink EAP610-Outdoor Dubai AP achieves impressive speeds, reaching up to 1.8 Gbps. This ensures elevated data rates on both the 5 GHz and 2.4 GHz bands, catering to the demands of dynamic multi-user scenarios, such as those encountered in outdoor swimming pools, cafés, and amusement parks.

Enhanced with professional antennas and high-power amplifiers, the Tplink EAP610-Outdoor Dubai capitalizes on Wi-Fi 6 technology to establish robust and extensive wireless coverage across diverse outdoor settings. Notably, it boasts an exceptional range, spanning up to 200 meters on the 2.4 GHz band and 300 meters on the 5 GHz band.

Furthermore, the Tplink EAP610-Outdoor Dubai incorporates OFDMA and MU-MIMO technologies, significantly enhancing multi-user efficiency. This integration empowers the access point to facilitate simultaneous connections for numerous clients, catering to the needs of large open areas with dozens of users.

Features

  • Superior Wi-Fi 6 Speeds : Tplink EAP610-Outdoor Dubai delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology
  • Higher Network Efficiency : Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
  • Long-Range Coverage : Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
  • Omada Mesh Technology : Enables wireless connectivity between access points for extended range and flexible deployment
  • Stay Smooth with Fast Roaming : Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points
  • Centralized Cloud Management : Tplink EAP610-Outdoor Dubai integrates into Omada SDN for cloud access and remote management

Technical Specs

HARDWARE FEATURES

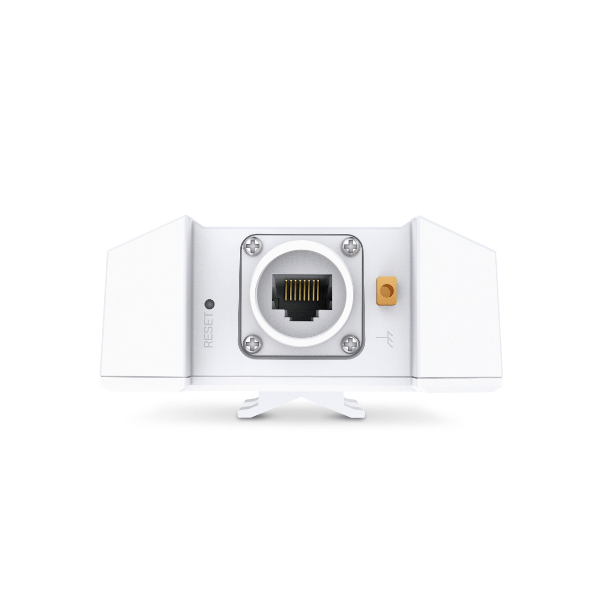

Interface 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button Reset
Power Supply 802.3at PoE

48V/0.5A Passive PoE (PoE Adapter Included)

Power Consumption EU : 12.5W (802.3at PoE or Passive PoE)

US : 14.7W (802.3at PoE or Passive PoE)

Dimensions ( W x D x H ) 280.4×106.5×56.8 mm (without antenna & mounting kit)
Antenna 2.4 GHz : 2× 4 dBi

5 GHz : 2× 5 dBi

Weatherproof Enclosure IP67

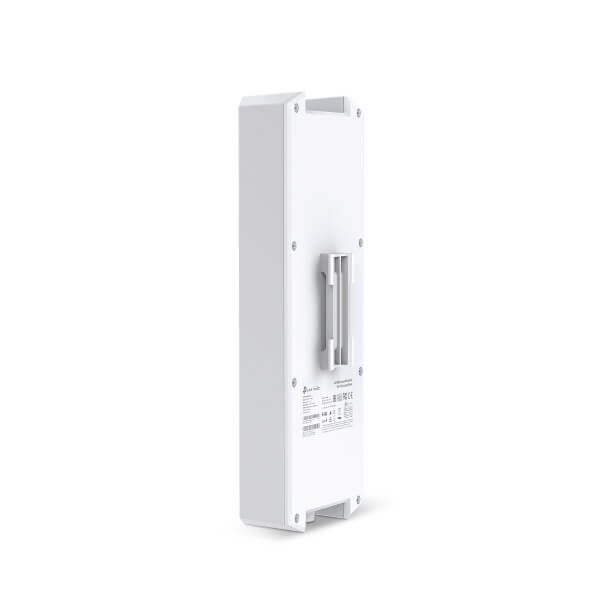

Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz, 5 GHz
Signal Rate 802.11ax : 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)

802.11ac : 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)

802.11n : 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)

802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b : 1, 2, 5.5, 11 Mbps

802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Transmit Power CE : <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)

FCC : <25 dBm (2.4 GHz), <25 dBm(5 GHz)

Wireless Functions 1024-QAM

4× Longer OFDM Symbol

OFDMA

Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS (WMM)

MU-MIMO

Omada Mesh

Seamless Roaming

Band Steering

Load Balance

Airtime Fairness

Beamforming

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT
Omada App Yes
Centralized Management Omada Cloud-Based Controller

Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents Access Point EAP610-Outdoor

Passive PoE Adapter

Power Cord

Mounting Kits

Waterproof Kits

Waterproof Antenna

Installation Guide

Environment Operating Temperature : -30–70 ℃ (-22–158 ℉)

Storage Temperature : -40–70 ℃ (-40–158 ℉)

Operating Humidity : 10–90% RH non-condensing

Storage Humidity : 5–90% RH non-condensing
