Description

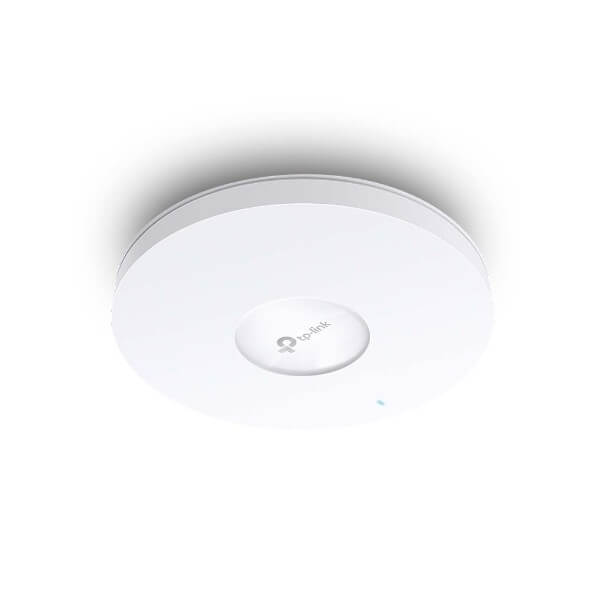

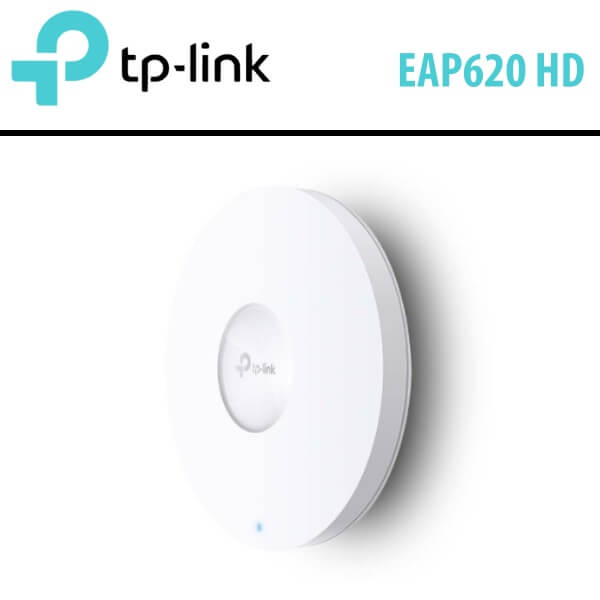

Tplink EAP620HD Dubai

The Tplink EAP620HD Dubai Omada WiFi 6 Access Point incorporates cutting-edge 802.11ax (WiFi 6) technologies, including 1024 QAM and Long OFDM Symbol, enabling it to enhance speeds significantly, reaching up to 1775 Mbps. This translates to 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band. With its eight (8) spatial streams, it substantially boosts multi-user throughput, accommodating a wider range of applications seamlessly.

Features

Blazing Fast Speeds with 4 Spatial Streams
The Tplink EAP620 HD Dubai Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1800 Mbps. With 4 Spatial streams, multi-user throughput is increased to drive more applications.

Effortless Deployment with PoE+
With 802.3at Power over Ethernet (PoE+) supported, there is no need to install additional wiring. Simply plug in the existing Ethernet cables and you’re ready to go.

Easy to Mount with Refined Industrial Design
Experience the simplest installation ever performed and ceiling mount problems are a thing of the past with just 2 easy steps using the new Tplink EAP620 HD Dubai.

Gigabit Port with PoE+ for Next Level Performance
Tplink EAP620 HD Dubai delivers exceptional performance with a Gigabit Ethernet Port boosting total internet throughput for better Wi-Fi. Supports standard 802.3at PoE+ for flexible deployment and convenient installation.

Technical Details

HARDWARE FEATURES
Interface
1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) Button Reset
Power Supply
802.3at PoE
12 V DC
Power Consumption
EU : 12 W
US : 13.5 W
Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type
Internal Omni

2.4 GHz : 2× 4 dBi
5 GHz : 2× 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
WIRELESS  FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz : Up to 1201 Mbps
2.4 GHz : Up to 574 Mbps
Wireless Functions
1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts :Yes
LED ON/OFF Control :Yes
Management MAC Access Control :Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP620 HD
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment
Operating Temperature : 0–40 ℃ (32–104 ℉)
Storage Temperature : -40–70 ℃ (-40–158 ℉)
Operating Humidity : 10–90% RH non-condensing
Storage Humidity : 5–90% RH non-condensing
