Description

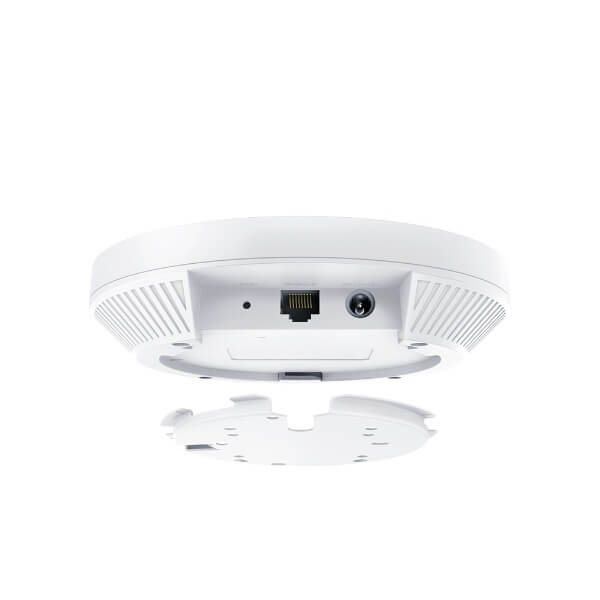

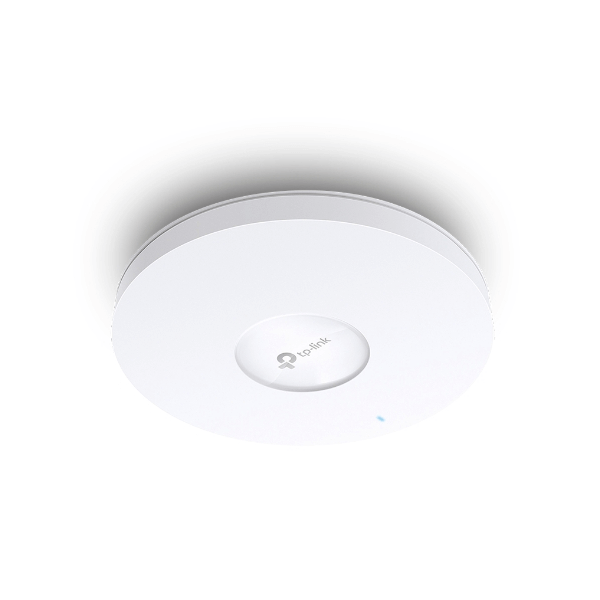

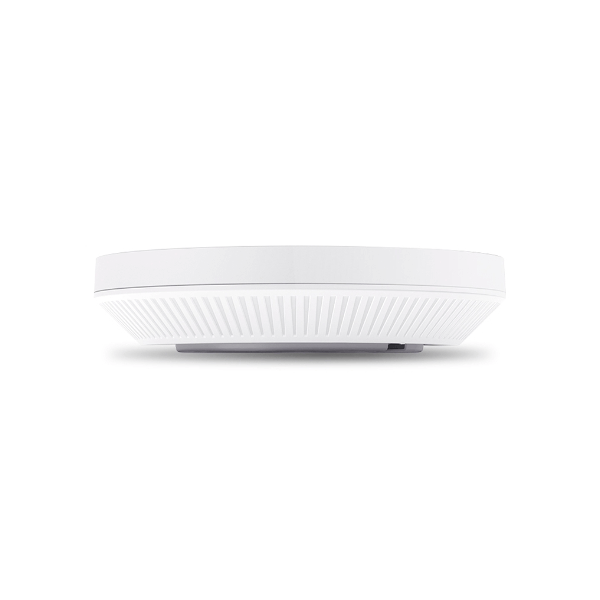

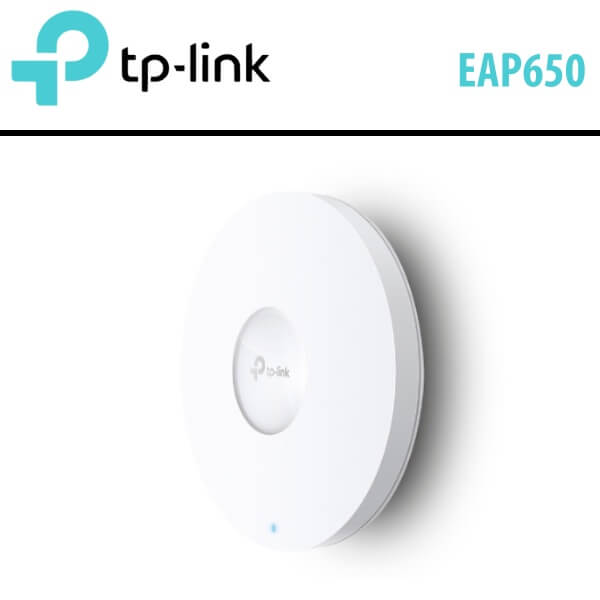

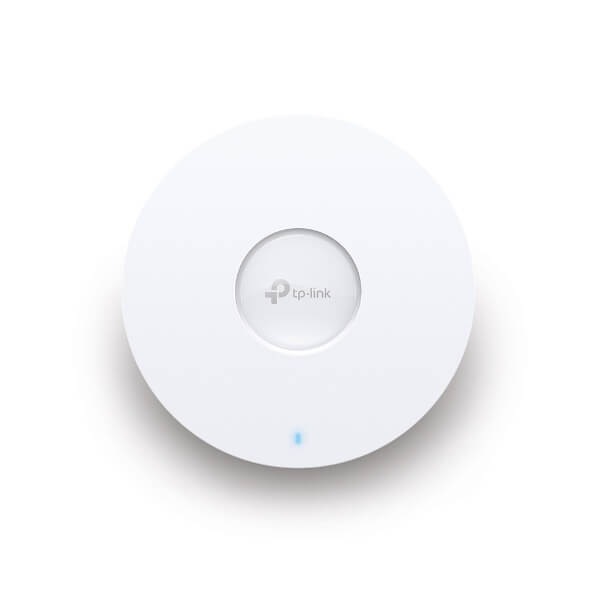

Tplink EAP650 Dubai
The Tplink EAP650 Dubai combines exceptional performance with a compact design, making Wi-Fi installation effortless while conserving space. Its sleek and elegant appearance allows the Tplink EAP650 Dubai to seamlessly integrate into modern offices, hotels, classrooms, or cafes. This access point ensures uninterrupted streaming for customers on the move by automatically switching clients to access points with the strongest signal, guaranteeing a seamless experience.
Key Features:
• Blazing Wi-Fi 6 Speeds: The Tplink EAP650 Dubai harnesses the latest Wi-Fi 6 technology, featuring 1024-QAM, HE60, and Long OFDM Symbol, to deliver ultra-fast dual-band Wi-Fi speeds of up to 2976 Mbps.
• Sleek and Space-Saving: With its ultra-slim design, the Tplink EAP650 Dubai offers straightforward installation and space efficiency. Its elegant appearance seamlessly blends into modern offices, hotels, classrooms, or cafes.
• Omada SDN Integration: Seamlessly integrated into the Omada Software Defined Networking (SDN) platform, the EAP650 works in conjunction with network devices such as access points, switches, and gateways. It offers multiple control options, including Omada Hardware Controller, Software Controller, or Cloud-based Controller (contact TP-Link for Cloud-Based Controller details). Standalone mode is also supported.
• Cloud Access & Omada Compatibility: The Tplink EAP650 Dubai comes equipped with remote Cloud access and the Omada app, enabling centralized cloud management of the entire network across different locations. This centralized control is accessible from a single interface anytime, anywhere. To check device compatibility with SDN firmware, please refer to the ‘From the manufacturer – Q&A’ section or TP-Link’s official website.
• Advanced Wireless Technologies: Benefit from advanced features such as Mesh WiFi, Seamless Roaming* (requires Omada Mesh & Seamless Roaming with Omada SDN controllers), Band Steering, Load Balancing, Airtime Fairness, and Beamforming technologies, all contributing to an optimized and efficient wireless experience.
Technical Specs
| HARDWARE FEATURES | |
| Interface | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Power Supply | 802.3at PoE 12V DC (Power Adapter included) (EU Version : 12 V / 1.0 A DC. US Version : 12 V / 1.5 A DC). |
| Power Consumption | EU :
13.5 W US : 14.7 W |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type | Internal Omni
2.4 GHz : 2× 4 dBi 5 GHz : 2× 5 dBi |
| Mounting | Ceiling /Wall Mounting (Kits included)
Junction Box Mounting |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 2402 Mbps
2.4 GHz : Up to 574 Mbps |
| Wireless Functions | 1024-QAM
4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO HE160 (160 MHz Bandwidth) Seamless Roaming Omada Mesh Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication
Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | CE :
<20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP)FCC : <25 dBm (2.4 GHz) <25 dBm (5 GHz) |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200) Omada Software Controller Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP650
Power Adapter Ceiling/Wall Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | Operating Temperature : 0–40 ℃ (32–104 ℉)
Storage Temperature : -40–70 ℃ (-40–158 ℉) Operating Humidity : 10–90% RH non-condensing Storage Humidity : 5–90% RH non-condensing |
