Tplink EAP653 Dubai

Tplink EAP653 Dubai

The Tplink EAP653 Dubai apart is its versatility in power options, supporting both 802.3at PoE+ and DC power supply (available separately). This flexibility allows for a wide range of installation possibilities.

Category:

Description

Tplink EAP653 Dubai

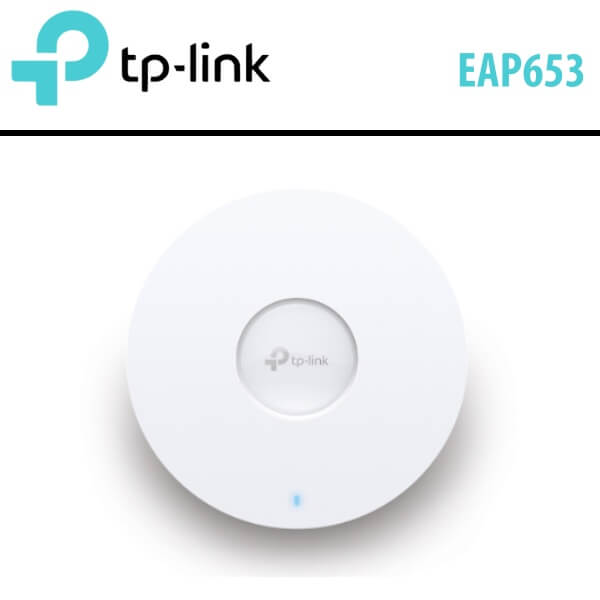

The Tplink EAP653 Dubai Access Point, a powerhouse of ultra-fast WiFi 6 speeds, providing a simultaneous 574 Mbps on the 2.4 GHz band and a blazing 2402 Mbps on the 5 GHz band, resulting in a total of up to 2976 Mbps WiFi speeds. WiFi 6 technology also enhances your network’s capacity, accommodating more devices while delivering faster speeds.

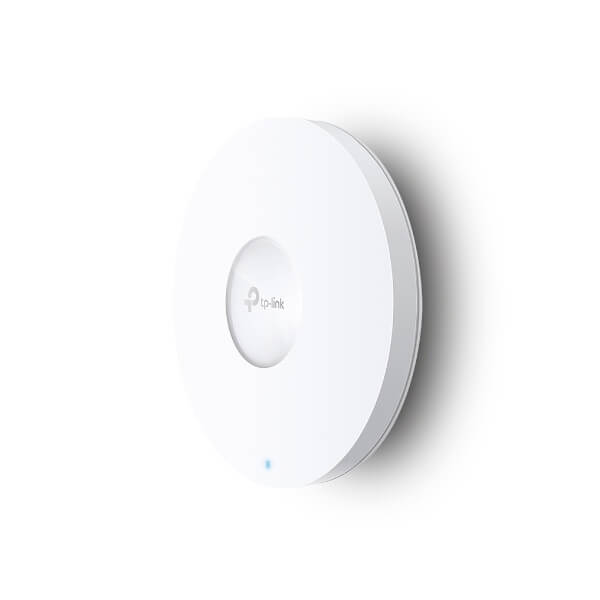

What sets the Tplink EAP653 Dubai apart is its versatility in power options, supporting both 802.3at PoE+ and DC power supply (available separately). This flexibility allows for a wide range of installation possibilities. With its ultra-slim design and compact footprint measuring just 160 mm × 33.6 mm, the EAP653 discreetly blends into any home environment.

For streamlined network management, the Tplink EAP653 Dubai seamlessly integrates with Omada SDN, offering centralized cloud management. Whether you prefer local control via web UI or the convenience of the Omada app, you have complete management flexibility. Additionally, seamless roaming ensures uninterrupted video streams and voice calls even as multiple users move between locations.

Furthermore, the Tplink EAP653 Dubai can be seamlessly integrated into the Omada Mesh, facilitating wireless connectivity between access points for extended range and adaptable deployment. By deploying multiple Tplink EAP653 Dubai access points, you can achieve expansive coverage throughout your home or business.

Features

  • Ultra-Fast WiFi 6 Speeds : Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
  • 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
  • Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
  • Omada Mesh : Enables wireless connectivity between access points for extended range and flexible deployment.
  • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter NOT included) power supply for flexible installations.
  • Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.

Technical Specs

HARDWARE FEATURES

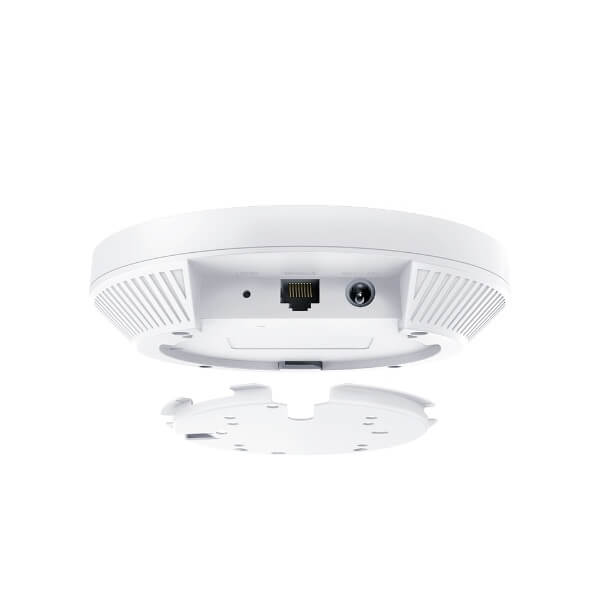

Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Power Supply 802.3at PoE
12V DC (Power Adapter is NOT included)
Power Consumption EU : 13.5 W
Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type Internal Omni

2.4 GHz : 2× 4 dBi

5 GHz : 2× 5 dBi

Mounting Ceiling /Wall Mounting (Kits included)

Junction Box Mounting

WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz : Up to 2402 Mbps

2.4 GHz : Up to 574 Mbps

Wireless Functions 1024-QAM

4× Longer OFDM Symbol

OFDMA

Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

MU-MIMO

HE160 (160 MHz Bandwidth)

Seamless Roaming

Omada Mesh

Band Steering

Load Balance

Airtime Fairness

Beamforming

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-personal/Enterprise

Transmission Power CE :

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, Band1 & Band2, EIRP)

<30 dBm(5 GHz, Band3, EIRP)FCC :

<25 dBm (2.4 GHz)

<25 dBm (5 GHz)

MANAGEMENT
Omada App Yes
Centralized Management Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Omada Cloud-Based Controller

Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Contents EAP653

Ceiling/Wall Mounting Kits

Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment Operating Temperature : 0–40 ℃ (32–104 ℉)

Storage Temperature : -40–70 ℃ (-40–158 ℉)

Operating Humidity : 10–90% RH non-condensing

Storage Humidity : 5–90% RH non-condensing
