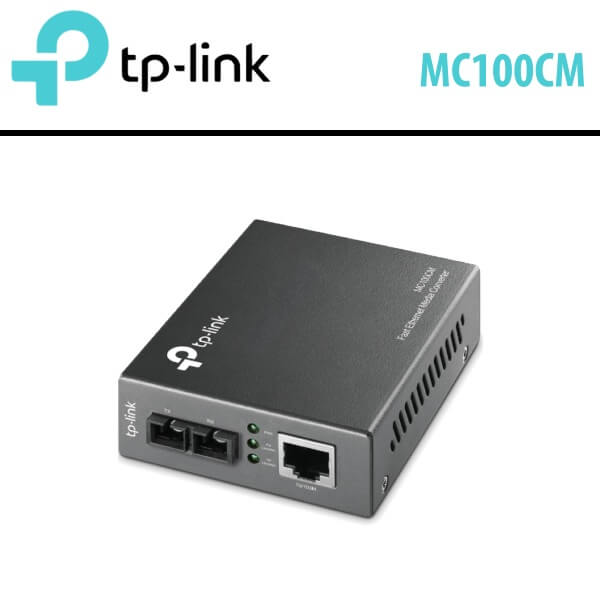

Tplink MC100CM Dubai

Tplink MC100CM Dubai

The Tplink MC100CM Dubai serves as a versatile media converter engineered for seamless connectivity between 100BASE-FX fiber and 100Base-TX copper, facilitating bidirectional data transmission. Compliant with IEEE 802.3u standards for 10/100Base-TX and 100Base-FX.

Category:

Description

Tplink MC100CM Dubai

The Tplink MC100CM Dubai serves as a versatile media converter engineered for seamless connectivity between 100BASE-FX fiber and 100Base-TX copper, facilitating bidirectional data transmission. Compliant with IEEE 802.3u standards for 10/100Base-TX and 100Base-FX, this media converter is specifically designed for utilization with multi-mode fiber cables, featuring an SC-Type terminal for physical connections.

The Tplink MC100CM Dubai Media Converter demonstrates support for the longwave (LX) laser specification, maintaining a consistent wire-speed forwarding rate. It operates at a wavelength of 1310nm for both data transmission and reception, offering Auto MDI/MDI-X functionality for the TX port and auto negotiation of duplex mode, enhancing flexibility in network configuration. Furthermore, this Media Converter is proficient in transmitting data over extended distances via multi-mode fiber, reaching distances of up to 1.2 miles (2km).

Quick Features

  • Tplink MC100CM Dubai complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • The Tplink MC100CM extends fiber distance up to 1.2 miles (2km)

Technical Specs

Brand tp-link
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Full Duplex Flow Control (IEEE 802.3x)
  • Half Duplex Flow Control (Backpressure)
  • Extends fiber distance up to 1.2 miles (2km)
Ports
  • 1 100M SC/UPC port
  • 1 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length 1310nm
Network Media 10BASE-T
  • UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T
  • UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX Multi-mode Fiber
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm)
Power Supply External power supply
Max Power Consumption 2.4W
Safety & Emission FCC, CE, RoHS
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
