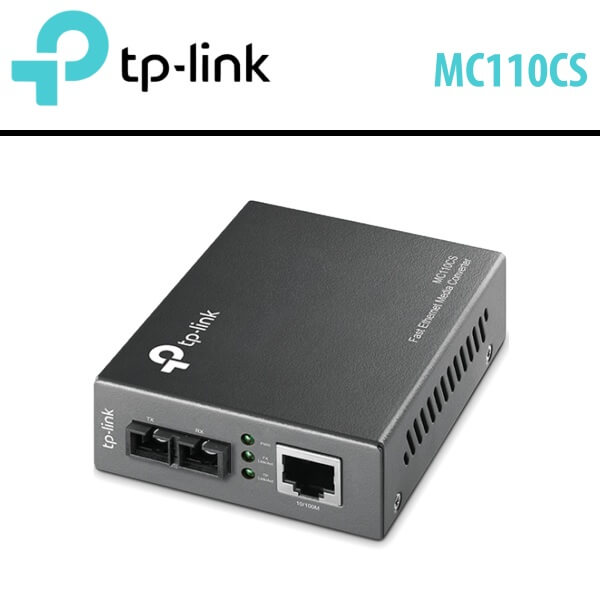

The Tplink MC110CS Dubai serves as a dedicated media converter tailored to seamlessly transform 100BASE-FX fiber into 100Base-TX copper media and vice versa. Engineered in accordance with the IEEE 802.3u standards governing 10/100Base-TX and 100Base-FX.

Category:

Description

Tplink MC110CS Dubai

The Tplink MC110CS Dubai serves as a dedicated media converter tailored to seamlessly transform 100BASE-FX fiber into 100Base-TX copper media and vice versa. Engineered in accordance with the IEEE 802.3u standards governing 10/100Base-TX and 100Base-FX, the MC110CS is optimized for deployment with single-mode fiber cables, featuring the SC-Type connector.

The Tplink MC110CS Dubai Media Converter excels in supporting the longwave (LX) laser specification while maintaining a consistent wire-speed forwarding rate. Operating at a wavelength of 1310nm for both data transmission and reception, it offers the convenience of Auto MDI/MDI-X functionality for the TX port and auto negotiation of duplex mode, enhancing versatility in network configuration. Additionally, the MC110CS is proficient in transmitting data over extended distances through single-mode fiber, achieving remarkable distances of up to 12.4 miles (20km).

Features

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Ranges up to 20km (12.4 miles) transmission distance with 9/125 μm single-mode fiber

Technical Specs

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function Half/Full-Duplex transfer mode for FX port

Full Duplex Flow Control (IEEE 802.3x)

Half Duplex Flow Control (Backpressure)

Extends fiber distance up to 20km (12.4 miles)

Ports 1 100M dual SC/UPC port

1 10/100M RJ45 port (Auto MDI/MDIX)

Wave Length 1310nm
Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Network Media 100BASE-FX Single-mode Fiber
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm)
Power Supply External power supply
Max Power Consumption 2.4W
Safety & Emission FCC, CE, RoHS
Package Contents Media Converter MC110CS

Power Adapter

Installation Guide

Environment Operating Temperature : 0℃~40℃ (32℉~104℉)

Storage Temperature : -40℃~70℃ (-40℉~158℉)

Operating Humidity : 10%~90% non-condensing

Storage Humidity : 5%~90% non-condensing
