The Tplink MC111CS Dubai is a versatile media converter designed to facilitate the conversion between 100BASE-FX fiber and 10/100Base-TX copper media, and vice versa. Leveraging Wavelength Division Multiplexing (WDM) technology.

Category:

Description

Tplink MC111CS Dubai

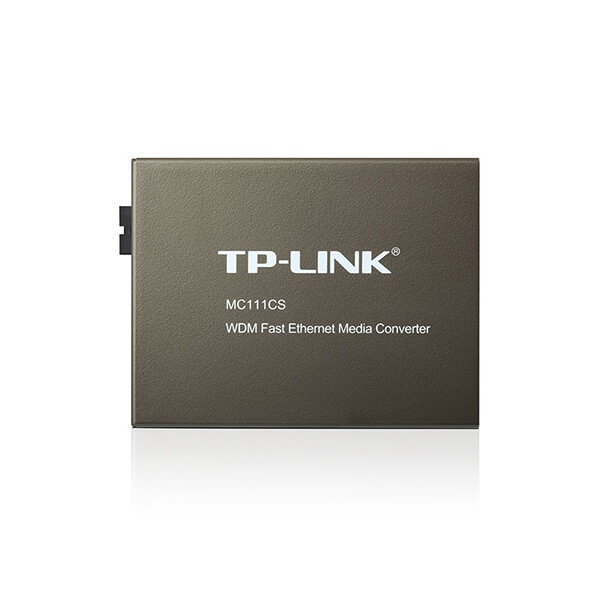

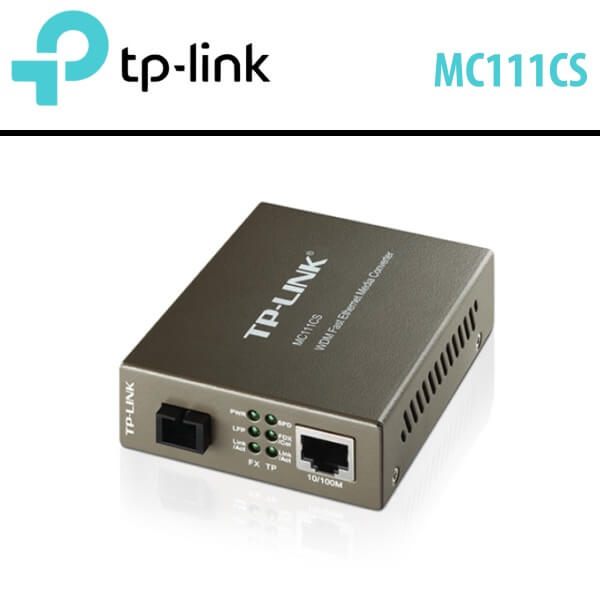

The Tplink MC111CS Dubai is a versatile media converter designed to facilitate the conversion between 100BASE-FX fiber and 10/100Base-TX copper media, and vice versa. Leveraging Wavelength Division Multiplexing (WDM) technology, the Tplink MC111CS Dubai operates efficiently with just one fiber cable for both data transmission and reception, resulting in significant cost savings on cabling expenses.

Compliant with IEEE 802.3u standards governing 10/100Base-TX and 100Base-FX, the Tplink MC111CS Dubai is tailored for single-mode fiber cables, featuring the SC-Type connector. This media converter also excels in supporting the longwave (LX) laser specification at a full wire-speed forwarding rate. It operates at a wavelength of 1550nm for transmitting data and 1310nm for receiving data. Consequently, the corresponding end device working in tandem with the MC111CS should utilize 1310nm for data transmission and 1550nm for data reception. TP-LINK’s MC112CS media converter is just one example of a compatible device to pair with the Tplink MC111CS Dubai.

Additional noteworthy features of this module include its ability to function as a standalone device, eliminating the need for a chassis (no chassis required), or to operate within TP-Link’s TL-MC1400 chassis. Furthermore, it offers Auto MDI/MDI-X support for the TX port and auto negotiation of duplex mode on the TX port. The Tplink MC111CS Dubai is capable of transmitting data over extended distances via single-mode fiber, achieving impressive ranges of up to 20 kilometers.

Features

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km

Technical Specs

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3i, IEEE 802.3u
Basic Function Adopts WDM technology

Half/Full-Duplex transfer mode for FX port

Extends fiber distance up to 20km

Ports 1 100M SC/UPC port

1 100M RJ45 port (Auto MDI/MDIX)

Wave Length 1550nm Tx/1310nm Rx
WDM TX 1550nm
WDM RX 1310nm
Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Network Media 100BASE-FX Single-mode Fiber
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

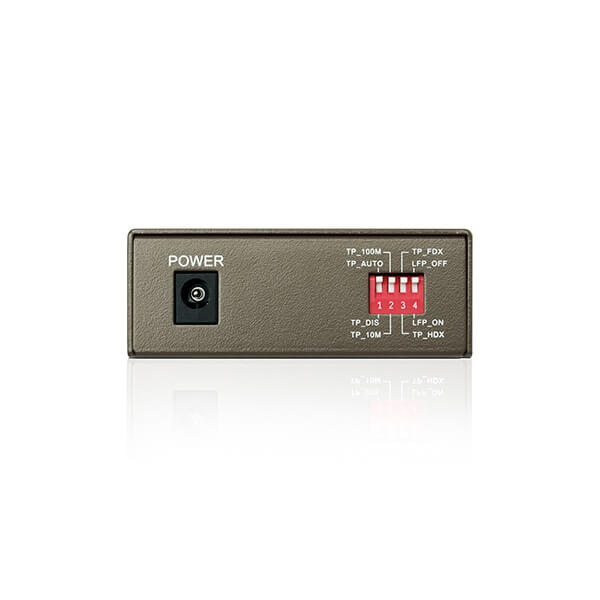

Power Supply External Power Adapter
Max Power Consumption 2.49W
Safety & Emission FCC, CE, RoHS
Package Contents Media Converter MC111CS

Power Adapter

Installation Guide

Environment Operating Temperature : 0℃~40℃ (32℉~104℉)

Storage Temperature : -40℃~70℃ (-40℉~158℉)

Operating Humidity : 10%~90% non-condensing

Storage Humidity : 5%~90% non-condensing
