Tplink MC200CM Dubai

Tplink MC200CM Dubai

The Tplink MC200CM Dubai excels in supporting the shortwave (SX) laser specification while maintaining a consistent wire-speed forwarding rate. Operating at a wavelength of 850nm for both transmitting and receiving data.

Category:

Description

Tplink MC200CM Dubai

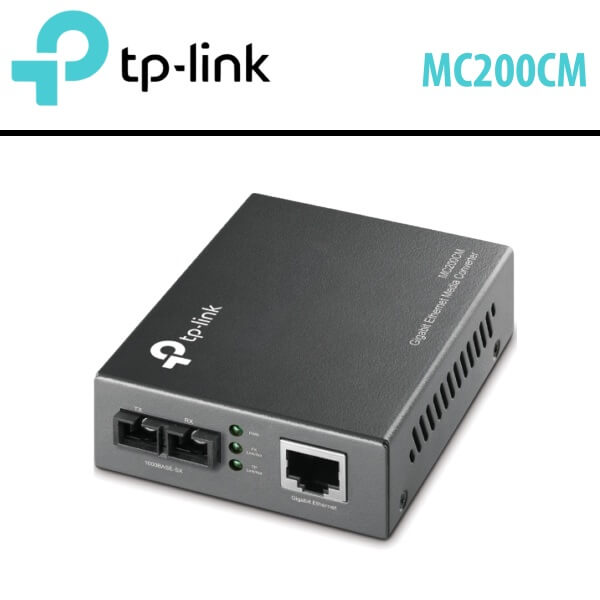

The Tplink MC200CM Dubai serves as a media converter meticulously engineered to facilitate the conversion between 1000BASE-SX fiber and 1000Base-T copper media, offering versatility in data transmission. Crafted in alignment with IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the Tplink MC200CM Dubai is tailored for compatibility with multi-mode fiber cables, featuring the SC-Type connector.

The Tplink MC200CM Dubai excels in supporting the shortwave (SX) laser specification while maintaining a consistent wire-speed forwarding rate. Operating at a wavelength of 850nm for both transmitting and receiving data, it ensures reliable performance in data transfer.

Additional features of this module encompass Auto MDI/MDI-X support for the TX port and front panel status LEDs for clear visual indicators. The Tplink MC200CM Dubai is capable of transmitting data over extended distances through multi-mode fiber, achieving impressive ranges of up to 1,800 feet (550 meters).

Features

  • 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • Extends fiber distance up to 1,800 feet (550m)

Technical Specs

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic Function Auto-negotiation of Half-Duplex / Full-Duplex transfer mode

Extends fiber distance up to 1,800 feet (550m) using 50/125um fiber

Extends fiber distance up to 720 feet (220m) using 62.5/125um fiber

Ports 1 x 1000M dual SC/UPC port

1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)

Wave Length 850nm
Network Media 1000BASE-SX Multi-mode Fiber
Network Media 1000BASE-T UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm)
Power Supply External Power Adapter
Max Power Consumption 1.66W
Safety & Emission FCC, CE, RoHS
Package Contents Media Converter MC200CM

Power Adapter

Installation Guide

Environment Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
