Description
Tplink MC210CS Dubai

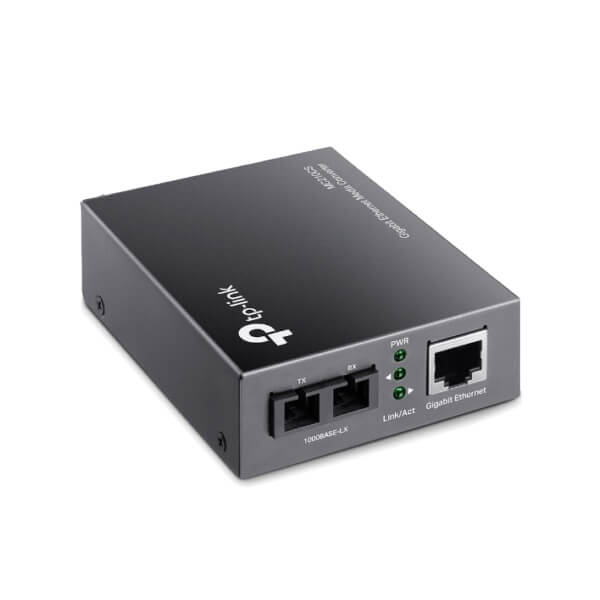

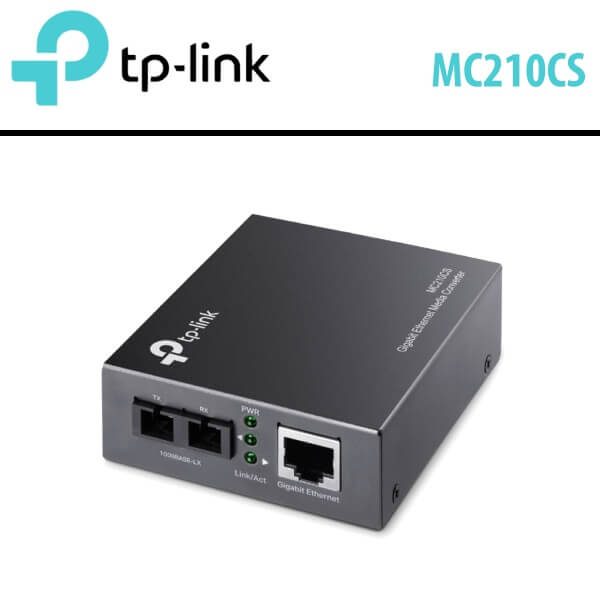

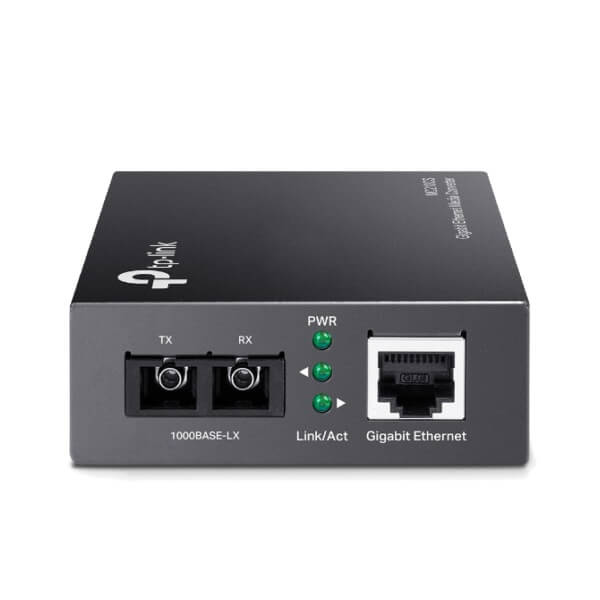

The Tplink MC210CS Dubai Gigabit Single-Mode Media Converter by TP-Link empowers you to seamlessly integrate both copper and fiber Gigabit cables within your network infrastructure. This converter is expertly designed to facilitate the conversion between 1000BASE-LX/LH fiber and 1000Base-T copper media, ensuring versatile data transmission capabilities. Operating at a wavelength of 1310nm, it is optimized for single-mode fiber cables and features the SC-type connector.
You have the flexibility to employ this converter as a standalone unit or within an optional TP-Link chassis, adapting to your specific network setup. The Tplink MC210CS Dubai excels in supporting the longwave (LX) laser specification, effectively extending the maximum fiber distance to an impressive 9.3 miles, ensuring robust and reliable network connectivity.
Features
- Tplink MC210CS works at 1000 Mb/s for the TX port and FX port
- Supports single-mode fiber connection
- Tplink MC210CS supports Auto-MDI/MDIX on TX port
- Extends maximum fiber distance to 9.3 miles
- Complies with IEEE 802.3i, 802.3u, 802.3ab, and 802.3z
- 1310nm wavelength on both transmission and reception of data
- Tplink MC210CS has LED indicators that let you easily monitor network activity
- External power supply included
Technical Specs
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fiber distance up to 20km |
| Ports | 1× 1000M SC/UPC port
1× 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 1000BASE-LX | Single-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.8W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | Media Converter MC210CS
Power Adapter Installation Guide |
| Environment | Operating Temperature : 0℃~50℃ (32℉~122℉)
Storage Temperature : -40℃~70℃ (-40℉~158℉) Operating Humidity : 10%~90% non-condensing Storage Humidity : 5%~90% non-condensing |
