Tplink MC220L Dubai

Tplink MC220L Dubai

The Tplink MC220L Dubai Media Converter supports high-speed data transfer rates of up to 1000 Mbps in Full-Duplex mode for both the TX and FX ports. Installation is straightforward.

Category:

Description

Tplink MC220L Dubai

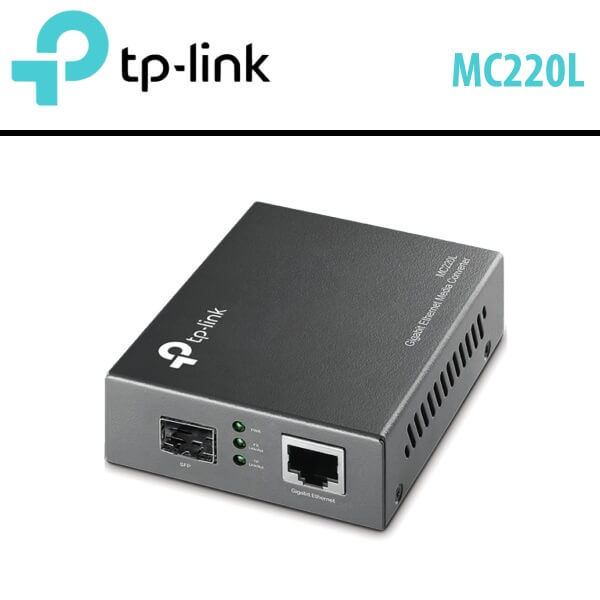

The Tplink MC220L Dubai Gigabit SFP Media Converter by TP-Link Achieve seamless conversion between 1000BASE-SX/LX/LH fiber and 1000Base-T copper media, or vice versa, using. This versatile media converter fully complies with the 802.3ab, 802.3z, and 802.3x network standards, ensuring optimal performance. It significantly extends fiber distance capabilities, reaching up to 0.31 miles for multi-mode fiber and an impressive 6.21 miles for single-mode fiber.

In addition to expanding transmission distances, the Tplink MC220L Dubai Media Converter supports high-speed data transfer rates of up to 1000 Mbps in Full-Duplex mode for both the TX and FX ports. Installation is straightforward, thanks to the inclusion of a single Gigabit SFP port, a single Gigabit Ethernet port, and an external power adapter, ensuring hassle-free setup.

Features

  • Tplink MC220L Dubai works at 1000 Mbps in Full-Duplex mode for both TX and FX ports
  • Supports auto MDI/MDIX for TX port
  • The Tplink MC220L Dubai provides switch configuration of force/auto transfer mode for FX port
  • FX port supports hot-swappable
  • Extends fiber distance up to 0.31 miles for multi-mode fiber and 6.21 miles for single-mode fiber
  • Tplink MC220L is equipped with easy-to-view LED indicators which provide status to monitor network activity easily
  • External power supply

Specifications

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function
  • Full Duplex Flow Control (IEEE 802.3x)
  • Extends fiber distance up to 0.5km for multi-mode fiber or up to 10km with single-mode fiber
Ports
  • 1 x Gigabit SFP port
  • 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length Depends on the used SFP module
Network Media 1000BASE-X Multi-mode/Single-mode SFP module
Network Media 1000BASE-T
  • UTP category 5, 5e, 6 cable (maxium 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 x 2.9 x 1.1 in.
(94 x 73 x 27 mm)
Power Supply External Power Adapter (9VDC/ 0.6A)
Max Power Consumption 1.7 W
Safety & Emission FCC, CE, RoHS
Package Contents
  • • Media Converter MC220L
  • • Power Adapter
  • • Installation Guide
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
